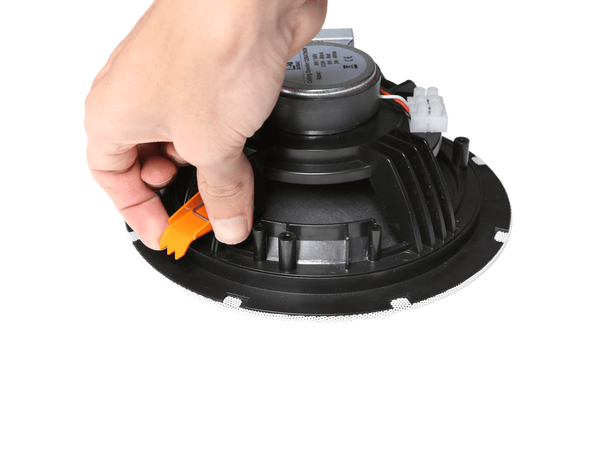

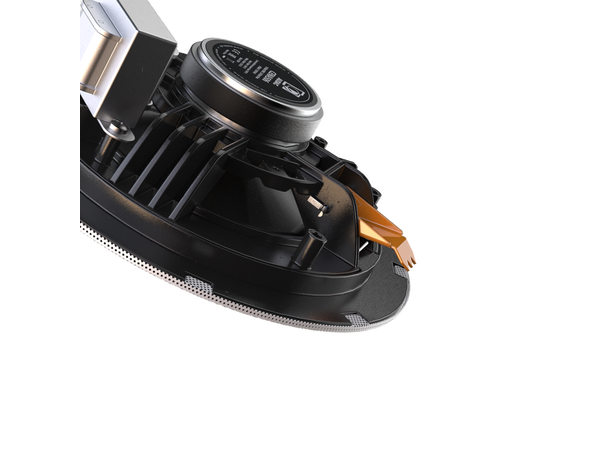

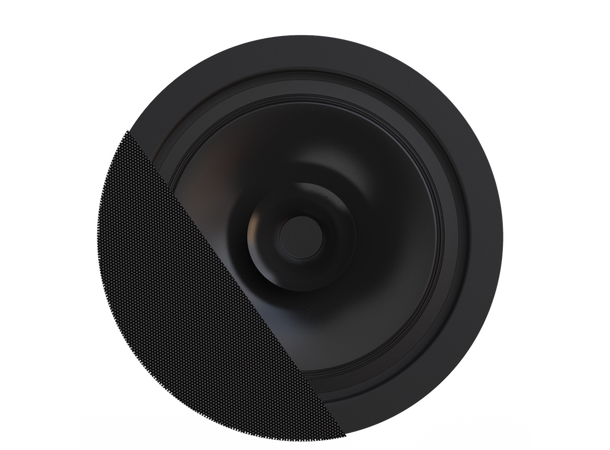

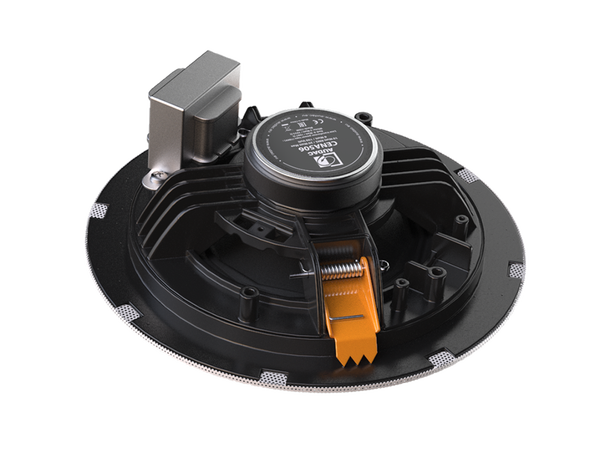

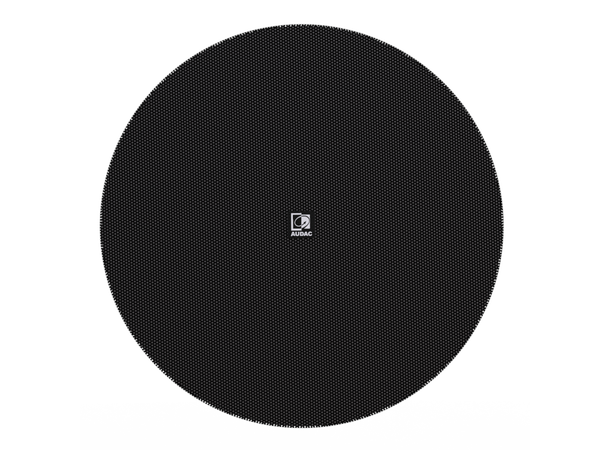

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects. The SpringFit™ fixation offers the fastest possible installation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment. With the selection of high-quality cone materials, exceptional intelligibility and background music performance are guaranteed. The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

The CENA506 features a 5” broadband driver with a continuous power handling of 10 Watt (RMS) and maximum power handling of 20 Watt. They are fitted by multi-tapping 100V line transformers with tappings for 6W and 3W.

VARIANTS
CENA506/W - White version - 8O and 100V
CENA506/B - Black version - 8O and 100V
CENA510D/W - White version - 16O

SYSTEM SPECIFICATIONS
Max. Power 20 W
RMS Power 10 W
Sensitivity (1W/1m) 93 dB
Speaker type Broadband
Connection SnapConnect™
Impedance 8 ? (CENA506)
16 ? (CENA510D)
Connection Screw terminal
Drivers 5” Full Range
Sound Pressure (Max. W/1m) @ 100 V 103 dB
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 80 Hz - 18 kHz
Line Transformer Tappings 1 6 W / 1667 ?
2 3 W / 3333 ?
Dispersion Conical 155°
PRODUCT FEATURES
Cut-out measurement 150 mm (Ø)
Dimensions 180 x 60 mm (Ø x D)
Construction ABS
Front finish borderless finely perforated steel grill
Built-in depth 57 mm
Mounting SpringFit™ mounting system
Colours White (RAL9003) (CENA506/W)
Black (RAL9005) (CENA506/B)
Operating temperature -15 °C ~ 55 °C
Weight 0.66 kg
