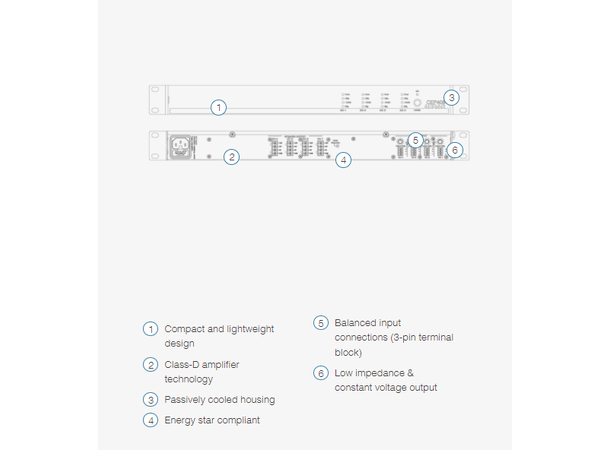

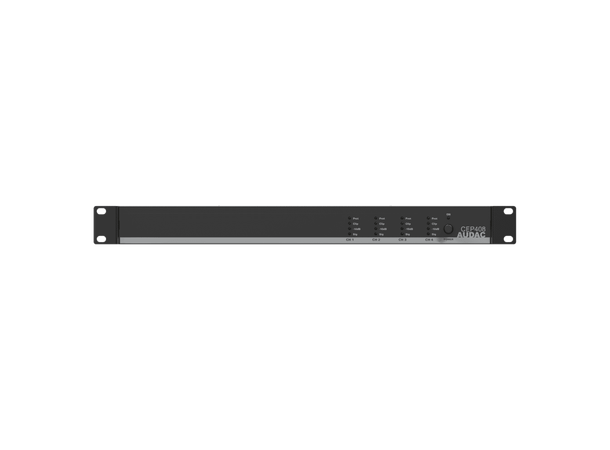

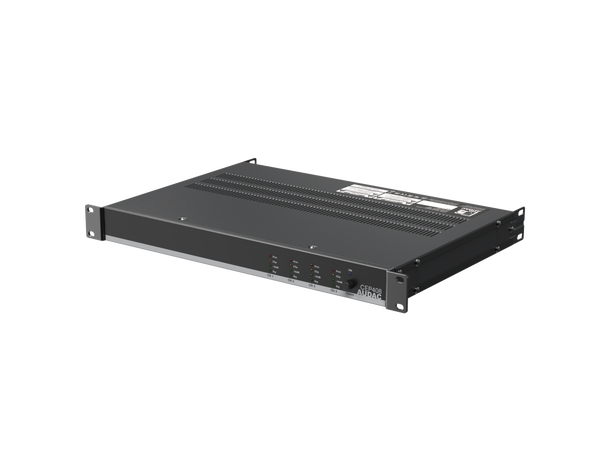

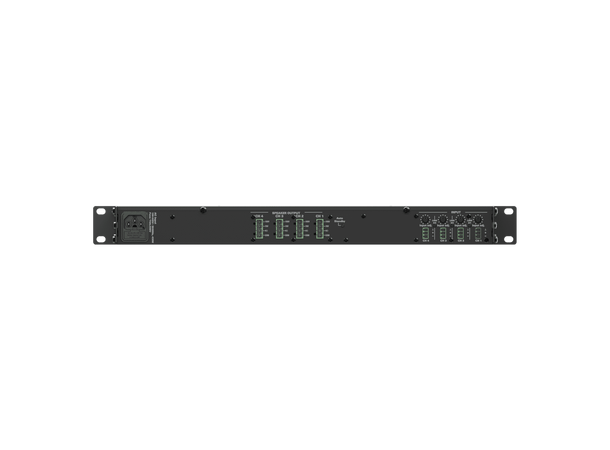

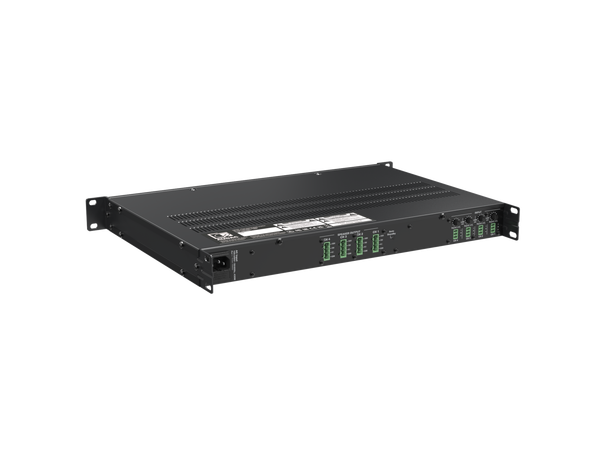

The CEP series are professional 70/100V multi-channel power-efficient amplifiers. The one unit height device comes into two models. The CEP408 offers four channels and has an output power of 80 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications. With its compact and lightweight design, the CEP series is designed with high efficiency and reliability by providing input linking through miniature switches at the back of the device in combination with Class-D amplifier technology. These switches allow daisy linking inputs from one channel to another by simply pressing the switch. The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. The input connections are performed with 3-Pin Terminal block connectors while the output connections are performed with a 4-pin Terminal block connector. The multi-channel amplifier is Energy Star compliant yet can be enabled or disabled with a standby switch on the back of the device. This amplifier is an HE (1RU) 19” unit. In order to ensure maximum installer/maintenance convenience, the CEP is passively cooled.

SYSTEM SPECIFICATIONS
RMS Power 4 x 80 W
Signal / Noise > 100 dB
THD+N (@ 1 kHz) < 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz) < 70 dB
Technology Class-D
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Inputs Input linking through miniature switches
RMS Power @ 70 V 4 x 80 W
@ 100 V 4 x 80 W
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Power Supply 100 ~ 240V AC mains operation voltage
Frequency Response (± 3 dB) 110 Hz - 20 kHz
Power Supply Switching mode
Source 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Sensitivity (1W/1m) -0.5 dB ~ 10.5 dB
Impedance 10 k? balanced
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
IEC C14 Connector
Outputs Voltage / Impedance 4 ?
70 V / 62.5 ?
100 V / 125 ?
Power Consumption Standby 0.6 W
Idle 16.4 W
Nominal (1/3 MUP) 196 W
Nominal (1/8 MUP) 92 W
PRODUCT FEATURES
Mounting 19”
Unit height 1 HE
Colours Black
Dimensions 482 x 44 x 355 mm (W x H x D)
Weight 6.3 kg
Construction Steel
