Stoltzen SHE630WP HDBaseT™ TX
USB-C | HDMI/USB | Audio In | 86x86
The Stoltzen SHE630, a powerful and versatile HDBaseT™ signal transmission and control solution designed to enhance your audiovisual experience. Discover its key features and unlock a world of possibilities.
Power at your convenience with PoC (Power over Cable) technology. The Stoltzen SHE630, based on HDBaseT™ technology, allows you to choose the power source that fits your setup best. Say goodbye to messy cables and enjoy a clean and efficient installation.
Effortless switching made easy with the built-in automatic 2x1 switch on the transmitter. With one HDMI+USB input and one USB-C input, seamlessly switch between different video sources without the need for additional equipment or manual intervention.
Experience flexibility in installation with the Stoltzen SHE630. Its compact design fits raceways and on-wall boxes perfectly, making it suitable for various setups and environments. Enjoy a clean and organized installation without compromising on performance.
Transform your audiovisual setup with the capability to transport USB devices. Perfect for video conferencing, education, and more, the Stoltzen SHE630, powered by HDBaseT™ technology, enables the seamless transmission of USB signals, allowing you to connect and utilize USB devices for enhanced collaboration and interactive experiences.
Upgrade your audiovisual system with the Stoltzen SHE630. Embrace the convenience of PoC, the flexibility of automatic switching, and the versatility of USB transport, all based on the robust HDBaseT™ technology. Experience seamless signal transmission and control in various applications, from video conferencing to education and beyond.
Take your audiovisual setup to the next level with the Stoltzen SHE630. Power, switch, and transport with ease and efficiency, backed by the reliability of HDBaseT™ technology. Elevate your audiovisual experience and unlock the true potential of your setup.
| Specifications |
| HDMI
Compliance |
HDMI 2.0b |
| HDCP
Compliance |
HDCP 2.2 |
| Video
Bandwidth |
HDMI: 18Gbps; USB-C: 5.4Gbps |
| HDMI
Video Resolution |
Up to 4K@60Hz 4:4:4 |
| Color
Space |
RGB 4:4:4, YCbCr 4:4:4, YCbCr
4:2:2, YCbCr 4:2:0 |
| Color
Depth |
8/10/12bit |
| HDMI
Audio Formats |
LPCM 7.1CH, Dolby True HD,
DTS-HD Master (Full format) |
| Analog
Audio Embedding |
48KHz |
| Transmission Distance |
LRM mode: 492ft/150m
(4K30/1080P) |
| STD-HBT
mode: 328ft/100m (4K60/4K30/1080P) |
| ESD
Protection |
Human body model—±8kV (Air-gap
discharge) &±4kV (Contact discharge) |

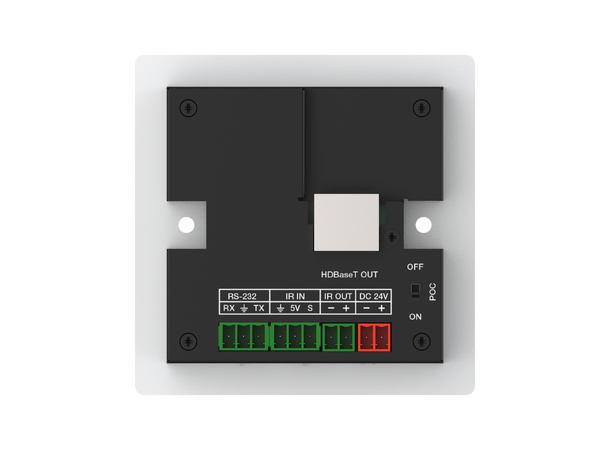

| Transmitter |
| Input |
1 x HDMI IN [Type A, 19-pin
female] |
| 1 x USB
TO HOST[USB Type B] |
| 1 x
USB-C IN [USB Type C] |
| 1 x
AUDIO IN [3.5mm Stereo Mini-jack] |
| Output |
1 x HDBaseT OUT [RJ45] |
| Control |
1 x RS-232 [3pin-3.81mm Phoenix
connector] |
| 1 x IR
IN [3pin-3.81mm Phoenix connector] |
| 1 x IR
OUT [2pin-3.81mm Phoenix connector] |
| Mechanical |
| Housing |
Metal Enclosure |
| Color |
Front panel: White; Rear case:
Black |
| Dimensions |
86mm [W] x 86mm [D] x 38.5mm [H] |
| Weight |
234g |
| Power
Supply |
24V/1A (supporting bidirectional
POC power supply) |
| Power
Consumption |
12.48W (Max) |
| Operating
Temperature |
32 - 104°F / 0 - 40°C |
| Storage
Temperature |
-4 - 140°F / -20 - 60°C |
| Relative
Humidity |
20 - 90% RH (no condensation) |
