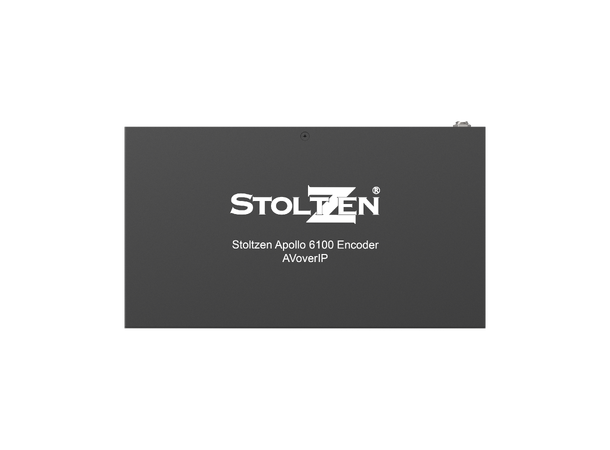

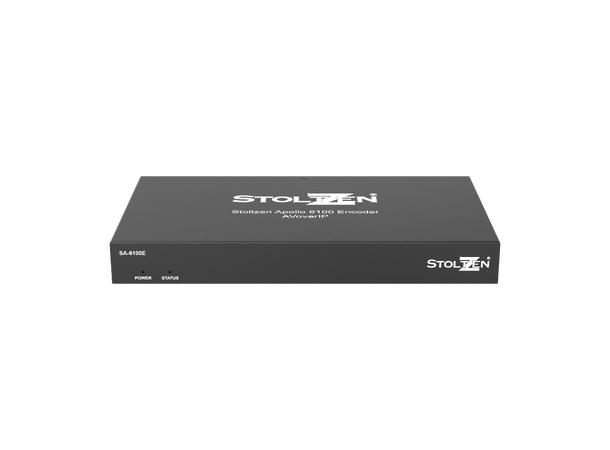

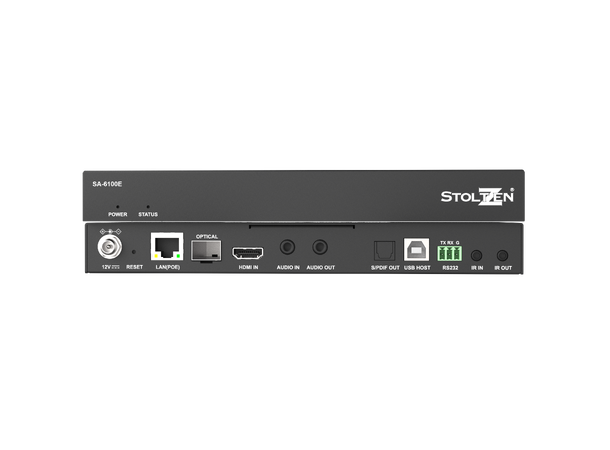

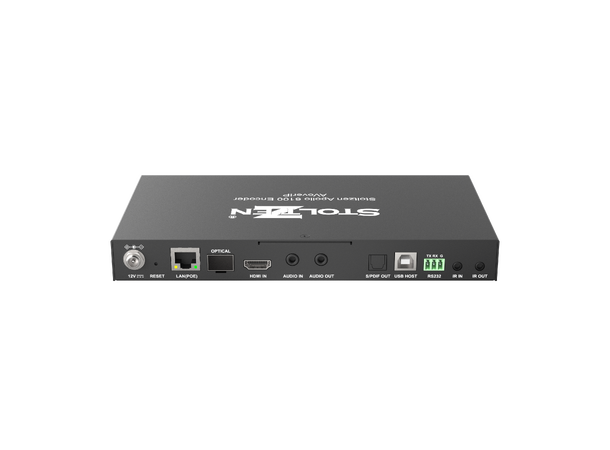

Stoltzen Apollo 6100E Encoder 4K60

4K@60 HDCP 2.2 USB-KVM PoE 1-2fps delay

Varenr: 132043
Alt. varenr: SA-6100E
BeskrivelseEkstern InfoTeknisk infoTilbehør
Beskrivelse

AV over IP 4K60 4:4:4
1G Solution

6100 Series





The Stoltzen Apollo 6100D (decoder) and 6100E (encoder) offer a flexible and scalable solution for switching and distributing 4K UHD AV signals over standard gigabit Ethernet networks. They support resolutions up to 3840 x 2160@60Hz 4:4:4 and provide complete end-to-end streaming systems. With low latency and VideoWall functions, they are ideal for applications in homes, classrooms, conference rooms and broadcasts. The encoders and decoders also support HDCP 2.2/2.3, bi-directional control and power over Ethernet (PoE) for easy installation and setup.

Resolution: Supports up to 3840 x 2160@60Hz 4:4:4.

Network: Distributes and switches 4K UHD AV signals over standard gigabit Ethernet networks, enabling complete end-to-end streaming systems.

HDCP: HDCP 2.2/2.3 compliant.

Audio: Supports multi-channel audio up to PCM 7.1, Dolby Atmos, DTS HD Master, and DTS:X.HDMI ARC audio return.

Video Wall: Supports video walls up to 16 x 16 screens.

CEC: Supports CEC one-touch-play and standby commands.

Distance: Supports signal transmission up to 328ft/100m over a single Cat 5e cable or above.

Latency: 1 frame latency.

USB: Supports high-performance USB 2.0 over IP with improved support for cameras.USB supports high current (1.5 max on one port, 2.5 A to all ports).

Control Options: Offers control options through an app on Windows, iPad, and IP controller.

Additional Features:

Analog audio embedding and de-embedding.

S/PDIF audio return.

Bi-directional serial communication.

Bi-directional IR pass-through.

IR generation capability to send IR codes through API.

Supports point-to-point, point-to-multipoint, multipoint-to-point, and multipoint-to-multipoint scenarios.

Power over Ethernet (PoE) support.

User-selectable output HDCP configuration.

DHCP support with fallback to AutoIP.

Communication protocols: Telnet, SSH, HTTP, and HTTPS.

Model

Apollo 6100E

Apollo 6100D

Video

Input Port

1 x HDMI type A (19 pins)

1 x RJ-45

Input Type

HDMI 2.0a, HDCP 2.2/2.3

IP Stream

Input Resolutions

Up to 3840 x 2160p@60Hz 4:4:4

Output Port

1 x RJ-45

1 x HDMI type A (19 pins)

Output Type

IP Stream

HDMI 2.0a, HDCP 2.2/2.3

Output Resolutions

Up to 3840 x 2160p@60Hz 4:4:4

Average Encoding Data Rate

3840 x 2160@60Hz: 650Mbps (avg) / 900Mbps (max)

End-to-End Time Latency

1 frame

Audio

Input Port

1 x HDMI, 1 x 3.5mm stereo jack

1 x S/PDIF IN, 1 x LAN/Optical

Input Signal

HDMI: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X; Audio In: Analog

S/PDIF In: Digital audio; LAN/Optical: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

Output Port

1 x 3.5mm stereo jack, 1 x S/PDIF Out, 1 x LAN/Optical

1 x HDMI, 1 x 3.5mm stereo jack

Output Signal

Audio Out: Analog; S/PDIF Out: Digital audio; LAN/Optical: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X

HDMI: PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X; Audio Out: Analog

Control

Control Method

Windows App, iPad App, IP controller (SA-C)

Windows App, iPad App, IP controller (SA-C)

General

Operating Temperature/Humidity

+32°F ~ +113°F (0°C ~ +45°C), 10% ~ 90% non-condensing

+32°F ~ +113°F (0°C ~ +45°C), 10% ~ 90% non-condensing

Storage Temperature/Humidity

-4°F ~ +158°F (-20°C ~ +70°C), 10% ~ 90% non-condensing

-4°F ~ +158°F (-20°C ~ +70°C), 10% ~ 90% non-condensing

Power

12 VDC 2 A, PoE

12 VDC 2 A, PoE+

Power Consumption

7W (Max)

8.5W (Max)

ESD Protection

Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)

Human body model: ±8 kV (air-gap discharge), ±4 kV (contact discharge)

Dimensions

8.46'' x 0.98'' x 4.72'' (215 mm x 25 mm x 120 mm)

8.46'' x 0.98'' x 4.72'' (215 mm x 25 mm x 120 mm)

Net Weight

1.63 lbs (0.74 kg)

1.63 lbs (0.74 kg)
