Ubiquiti Unifi Wifi 6 Mesh Indoor/outdoor, 4x4 WiFi 6 access point

Ubiquiti Unifi Wifi 6 Mesh

Indoor/outdoor, 4x4 WiFi 6 access point

Varenr: 127557
Alt. varenr: U6-Mesh-EU
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

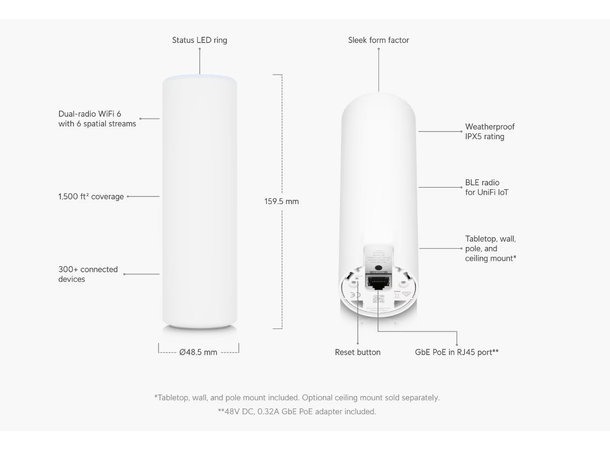

Ubiquiti Unifi Wifi 6 Mesh



Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.

The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.



Features:

  • High-efficiency 4x4 WiFi 6 (802.11ax)
  • 5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
  • 2.4 GHz (2x2 MIMO) band with a 573.5 throughput rate
  • Operates at full 4x4 MIMO with 160 MHz bandwidth
  • Powered with 802.3af PoE (PoE adapter included)






Mechanical

DimensionsØ48.5 x 159.5 mm (Ø1.9 x 6.28")
Weight400 g (0.88 lb)
Enclosure materialPlastic, aluminum
Mount materialsPlastic
WeatherproofingIPX5



Hardware

Management interfacesEthernet
Bluetooth
Networking interface(1) GbE RJ45 port
ButtonFactory reset
LEDsRGB
Power method802.3af PoE
Power supplyUniFi PoE switch
48V, 0.32A PoE adapter (included)
Supported voltage range44 to 57VDC
Max. power consumption11.4W
Max. TX power
2.4 GHz
5 GHz

22 dBm
26 dBm
MIMO
2.4 GHz
5 GHz

2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz
5 GHz

573.5 Mbps
4.8 Gbps
Antenna gain
2.4 GHz
5 GHz

3 dBi
5 dBi
MountingWall, desktop, pole mount(included)
Ceiling mount (optional)
Operating temperature-30 to 60° C (-22 to 140° F)
Operating humidity5 - 95% noncondensing
CertificationsCE, FCC, IC



Software

WiFi standards802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients300+
Zero wait DFSYes*
*Supported with upcoming firmware versions



Supported Data Rates

802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
