The CELO series is AUDAC‘s high-end, slim ceiling speaker series, comprising different models which can guarantee an optimal experience for every situation and application. The ultra-compact size enables the CELO2 to smoothly integrate into any interior like no other loudspeaker. The outer diameter only measures 118 mm, which is as compact as a standard down lighter and the built-in depth of 95 mm allows installation in any ceiling while being unobtrusive.
The sound originates from a 2” aluminum cone driver which provides a full-range, warm and detailed sound with an improved response in the low frequencies due to a ported enclosure with closed back can. This way, a smooth sound reproduction with clear and crisp sound is guaranteed. An internal self-resetting network provides an optimal overload protection. All these details share their part to the quality of the CELO2, resulting in a highly reliable loudspeaker producing a pure sound with a maximum power handling of 20 Watt and an RMS power handling of 10 Watt.

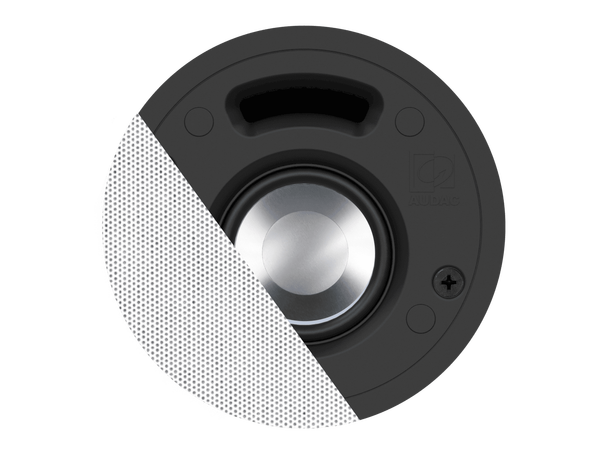

An elegant look with minimal visual impact is created by the slim grill with very thin border of only 1 mm. To make them blend in even more, the grill can be painted in the same color as the surrounding surface or an optional black grill (GLC02/B) will provide seamless integration in dark environments. The elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple but still reliable enough to keep the grill in place during the complete lifetime of the loudspeaker.

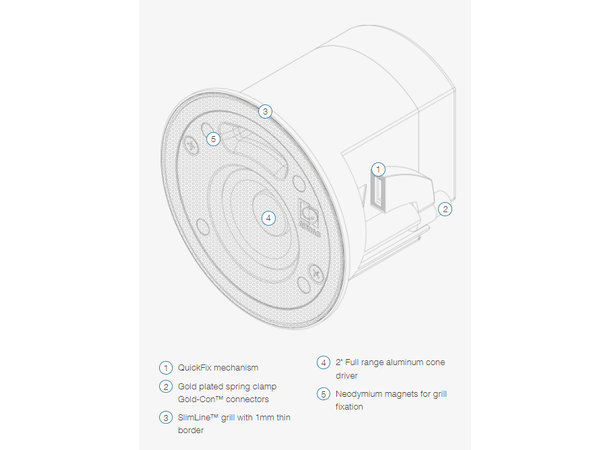

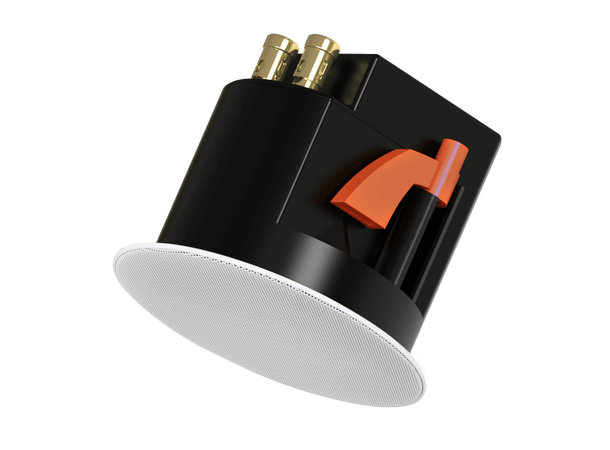

Secure mounting and easy installation is guaranteed using the quick-fix mechanism which can be tightened by two screws and the Gold-Con™ spring clamp connectors. The grill is held in place using neodymium magnets, providing a quick and reliable assembly. stable assembly.
VARIANTS
CELO2 - White version - 8O
CELO2D - White version - 16O
SYSTEM SPECIFICATIONS
Speaker type Full range
Max. Power 20 W
RMS Power 10 W
Impedance 8 ? (CELO2)
16 ? (CELO2D)
Sensitivity (1W/1m) 83 dB
Sound Pressure (Max. W/1m) 93 dB
Connectors Gold-Con™ spring clamps
Drivers 2” Aluminium membrane
Frequency Response (± 3 dB) 120 Hz - 20 kHz
Range (-10 dB) 100 Hz - 20 kHz
Dispersion Conical 165°
PRODUCT FEATURES
Dimensions 118 x 98 mm (Ø x D)
Weight 0.350 kg
Construction ABS
Front finish Thin edged white grill (RAL9003)
Cut-out measurement 100 mm (Ø)
Built-in depth 95 mm
Mounting & handling 2 Screw quick-fixing mechanism
Operating temperature -20 °C ~ 60 °C
Colours Black frame & white grill
Accessories Included Cut-out template
GLC02/W - White grill (RAL9003)
Optional WTR06 - 6W 100V line transformer
GLC02/B - Black grill (RAL9005)
GLC02/P - Paintable grill
