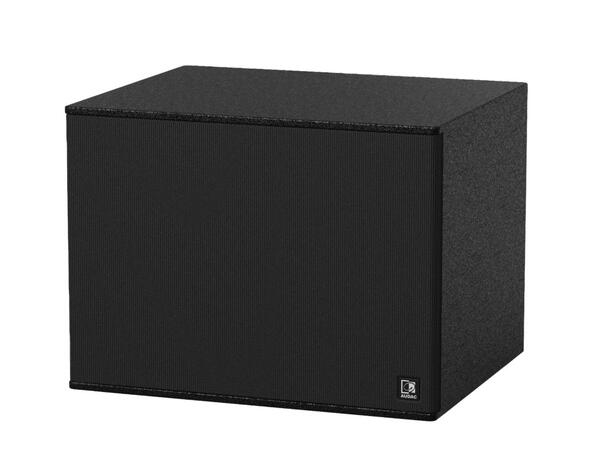

Audac ARCHI10 Passiv Sub, Black Compact 10” architectural subwoofer Audac ARCHI10 Passiv Sub, Black Compact 10” architectural subwoofer

Audac ARCHI10 Passiv Sub, Black

Compact 10” architectural subwoofer

Varenr: 137882
Alt. varenr: ARCHI10/B
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

ARCHI10

Compact 10” architectural subwoofer
  • 450 Watt program power
  • Low frequency extension down to 54Hz without processing
  • 124 dB of Max SPL (continuous)
  • Architecturally discreet and compact design
  • Immersive sound experience
  • Tailor-made high-excursion driver for superior performance
  • Flexible ceiling & wall mount option



System specifications
Speaker type10” Bass reflex cabinet
Peak power handling900 W
Program power handling450 W
Continuous power (AES)225 W
Impedance8 ?
Max SPL (Continuous)124 dB
Sensitivity (1W/1m)98 dB
FrequencyResponse (- 3 dB)69 Hz - 120 Hz
Range (-10 dB)54 Hz - 200 Hz
Bass port tuning frequency51 Hz

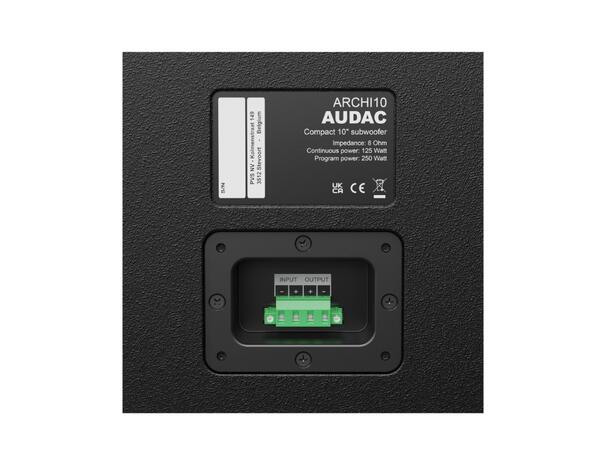

ConnectorsTerminal block with linkthrough
Drivers10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil
Cone materialWeatherTreated Paper
Product Features
Dimensions405 x 300 x 334 mm (W x H x D) (excluding feet)
405 x 312 x 334 mm (W x H x D) (including feet)
Weight11.2 kg
Operating temperature-20 °C ~ 70 °C
Front finishAcoustiMesh ?
ColoursBlack & White

Ekstern Info
ProdusentProduct
Teknisk info

Produktinformasjon

Farge Svart
Størrelse 10"
