Bright sound, effortless integration.
After a decade of sonic excellence, the Ateo series has now redefined 'effortless', setting new industry standards for in- and full outdoor applications. Say farewell to visible wires at the back as we present the fastest installation time available today. With ATEO, sound isn't just heard; it's felt, it's experienced, and it's transcendent through emotions.

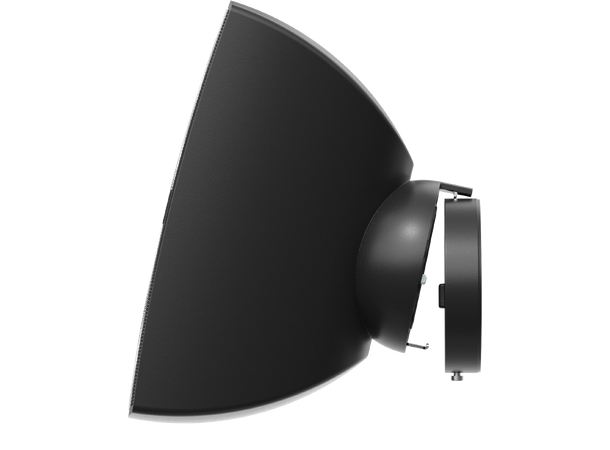

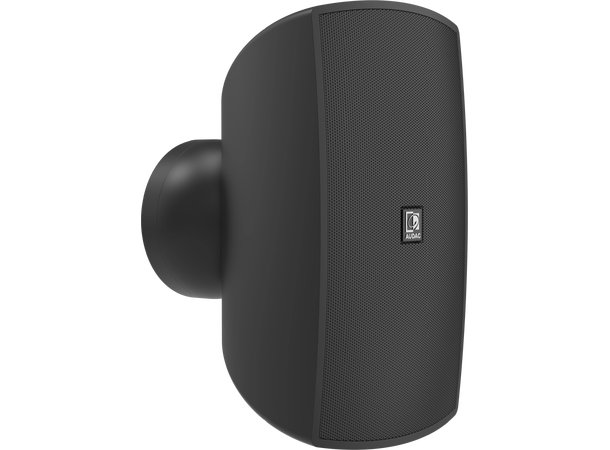

ATEO6M
In & outdoor surface mount loudspeaker with CleverMount+™
Ultra-flat frequency response
Weatherproof - IP66 rating
Hydrophobic cloth behind aluminum grill
Unmatched sonic brilliance
720 Hours salt spray test
Marine grade build quality & UV resistant
Save up to 50% installation time thanks to CleverMount™+
External power tap selection
Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
No wires or bracket visible from the back
Extremely firm fixation from front, allowing swift and accurate inclination
Optional mounts for inclination angle or light track mounting
The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

The ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.

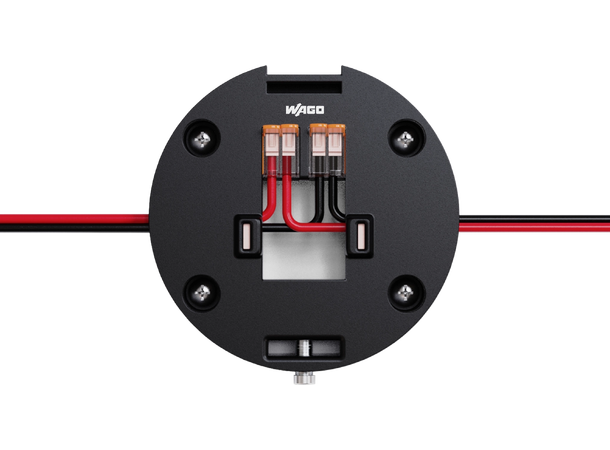

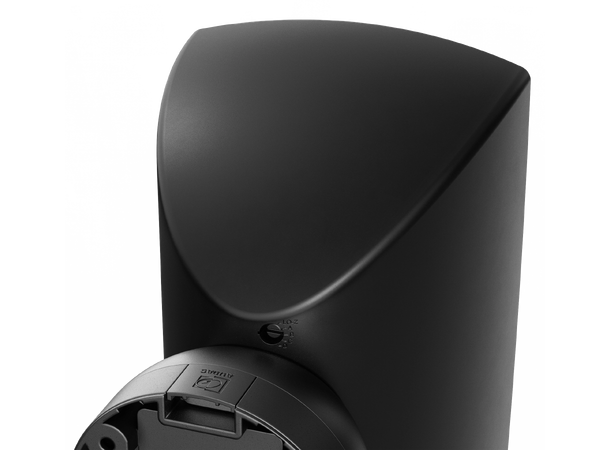

With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.

All ATEOxM series speakers are available in black (/B) or white (/W).

Speaker type Full range
Peak power handling 240 W
Program power handling 120 W
RMS/AES power handling 60 W
Impedance 8 ? (ATEO6M)
16 ? (ATEO6DM)
Incline angle Left 30°
Right 30°
Bottom 30°
Top 5°
Sensitivity (1W/1m) 89 dB
Sound Pressure (Max. W/1m) @ 8 ? 106 dB
@ 100 V 105 dB
Frequency Response (± 3 dB) 65 Hz - 20 kHz
Range (-10 dB) 55 Hz - 20 kHz
Dispersion Horizontal 120°
Vertical 120°
Connectors 2 x WAGO terminal block connections
Drivers 1” Dome tweeter
6” MF / LF Woofer
Line Transformer Tappings 1 100 Ohm - 100 V / Not used - 70 V / 50 W
2 200 Ohm - 100 V / 50 W - 70 V / 25 W
3 400 Ohm - 100 V / 25 W - 70 V / 12.5 W
4 800 Ohm - 100 V / 12.5 W - 70 V / 6.25 W
Ingress Protection rating IP66
Product Features
Dimensions 193.1 x 347.5 x 215.2 mm (W x H x D)
Weight 3.820 kg
Operating temperature -20 °C ~ 60 °C
Accessories Included Allen-key wrench
Mounting Weatherproof CleverMount+™
Construction ABS
Front finish Aluminium grill with hydrophobic cloth
