HH MZ-140DX 2-channel Installation Amplifier
2 x 140 Watts RMS Power Output with Full Power Sharing of up to 280W into Channel 1
Description
The MZ-140DX is a compact yet versatile 2-channel installation amplifier designed for smaller installations or expanding a larger
system. The MZ-140DX delivers 140W RMS per channel with a total system power of 280W RMS, ensuring reliable and consistent
performance. The dynamic power allocation of the MZ-140DX allows channel 1 to draw up to the full 280W RMS of available power,
if required, providing the total system power is not exceeded. This enables the MZ-140DX to provide efficient power management
uniquely tailored to each system. The MZ-140DX offers flexibility for a wide range of applications supporting both 70/100V (Hi-Z) and
4/8ohm (Lo-Z) systems.
Equipped with two balanced Euroblock 3.5mm input connectors, the MZ-140DX offers flexibility with input assignment enabling the

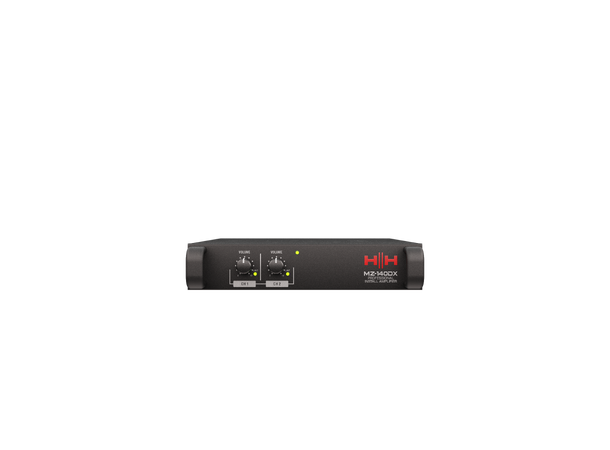

user to assign inputs 1:1 or 1:All. The straightforward control panel simplifies setup and operation, with front ‘scribble’ strips
providing a convenient way for installers to label and identify output channels.

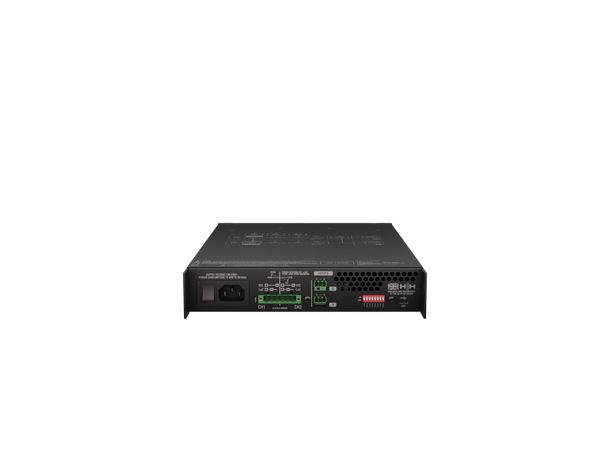

For the first time in the MZ Series, we have included the option to use the USB Type C input on the rear panel to stream class-
compliant audio at 48kHz. We have also developed an entirely new desktop application enabling deep customisation of the MZ-
140DX. The MZ-CTRL application gives the installer the ability to control a wide range of parameters including input sensitivity, HPF,
delay, phase, EQ, compression, input routing, crossover, and limiter. This opens up a world of customisation never seen in MZ
models and enables the installer to integrate an audio system tailor-made to the application.
The compact half-rack 1U form factor of the MZ-140DX makes it a perfect choice for installation in tight spaces, with hardware
included to surface-mount the unit or to connect two units side by side in a 1U 19-inch rack. The MZ-140DX gives you everything you
need from a compact installation amplifier in a small system but has still been designed with system expansion in mind. The MZ-
140DX makes the perfect companion for the MZ-64P zone controller and preamplifier, giving you greater dexterity with expanded
input options, the possibility of adding MZ-C2 wall controllers to your system, emergency override input and manual paging input,
all of which are easy to configure and control.
- 140 Watts RMS Power output per zone with full power sharing of up to 280W into channel 1
- Supports 70/100V or min 4 Ohm impedance speaker outputs (configurable per zone)
- 2 x Balanced audio inputs
- USB Type C Class Compliant Audio
- Ultra-reliable, High performance amp modules designed by PASCAL
- MZ-CTRL application for Input, EQ, Delay, and Limiter adjustment
- Compact 1U ½ rack size
- Wall or rack mountable
- Universal ~100-240V worldwide operation
- Configurable: Easy DIP switch configuration including panel lock
- Efficiency: Low energy consumption
- Class leading performance
| System Type | 2 CHANNEL INSTALL POWER AMPLIFIER |
| Inputs | 2x Balanced 3.5mm Euroblock connectors (Configurable 1:1 or 1:ALL via dip switches)
USB Type C Class Compliant Audio streaming @48kHz |
| Outputs | 2 (Can direct drive 4 ohm, 8 ohm or 70/100V systems selectable per output).
5.08mm Euroblock connectors per Zone. |
| Indicators | Power/Standby, all outputs feature signal present and amp clip LEDs. |
| Controls | Each amplifier output features master volume controls, Dual Function Signal Present/Clip Led. Rear panel includes front panel lock and zone amplifier mode options via dip switches. |
| Frequency Response | 20-20KHz ±0.1dBu (LoZ Mode) 80-20KHz ±0.1dBu (HiZ Mode). |
| THD+N | <0.01%
@0dBu in, mid volume; <0.008% @+6dBu in, maximum volume |
| S/N | >110dB |
| Noise Floor | < -70dBu
(unmuted), < -110dBu (muted) |
| Crosstalk | < -95dB
between channels, maximum volume |
| Output Peak Limiter | Yes (User configurable via MZ-CTRL Application). |
| Power | Total System Power Output - 280W. Power Per Output Channel @ 4/8 ohm - 140W RMS* 140W into 8 ohm. 95W into 4ohm. (*130W max when running at 120V mains voltage). Power Per Output Channel @ 70/100V - 140W RMS* 140W into 70V. 120W into 100V (*130W max when running at 120V mains voltage). |
| Impedance | Minimum Drive Impedance - 4 Ohms |
| Cooling | Thermally controlled 40x20mm Low noise brushless dual bearing fans for reliable performance in high ambient temperatures. |
| EQ / DSP | Available in the MZ-CTRL Application. |
| Power Consumption | 17W Idle;
150W Typical; 200W Max; 0.4W Standby |
| Unit Dimensions (Hwd) | 44 x 265 x 345 mm |
| Unit Weight | 2.5Kg |
| Carton Dimensions (Hwd) | 125 x 350 x 430 mm |
