How it works

ONE CABLE SOLUTION TO TAKE CONTROL OF A LARGE ROOM

Switch up to 6 peripherals between 3 hosts (5 USB + 1 display): This flexibility extends across various settings, from large boardrooms to classrooms and auditoriums, making it an ideal solution for unified videoconferences.

OPTIMIZED DESIGN FOR LARGE ROOMS WITH TOGGLE ROOMS XT

Long distance resolved between the Room PC and laptop hubs

Room PC hub

• Connect up to 3 USB3 devices and an HDMI display
• Connect to the UC system (such as Lenovo, Logitech, MAXHUB Room PC)
• 4K60 / 16:9 and 5K30 / 21:9 wide screen (HDMI)

CAT6A extension cable

• Reach up to 70 m/230 ft from the main Room PC with a CAT6A cable
• Video signal up to 40 m for 4K60 and up to 70 m for 4K30

Laptop hub

• Connect up to 2 USB2 devices
• Connect the laptop via USB-C (100W) or HDMI and USB-B
• INO-HOST BUTTON via GPI
• Routes Laptop content to control pads such as MAXHUB XCore and the Logitech Tap

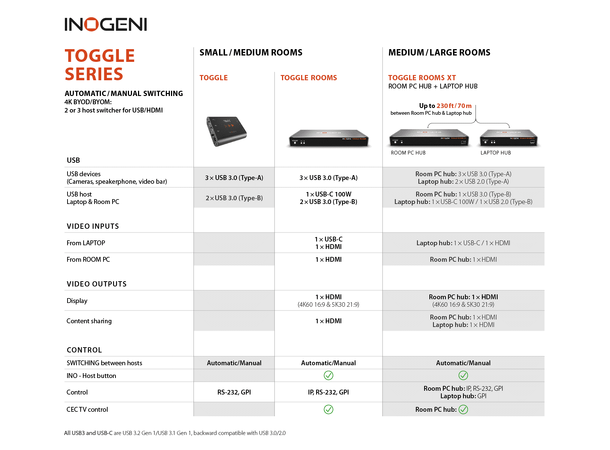

Discover how INOGENI solves room size problem with its TOGGLE’ Series

Explore the full range of our innovative solutions.
Visit the TOGGLE and TOGGLE ROOMS webpage to learn more!

Features

TOGGLE ROOMS XT – SWITCH from BYOD to BYOM modes with only one cable for a Room PC and laptop

Switch up to 6 peripherals between 3 hosts (5 USB + 1 display) and use one USB-C (100W) cable to connect the laptop. Redefine collaboration with Bring Your Own Device (BYOD) and Bring Your Own Meeting (BYOM) support, offering flexibility for various meeting scenarios via a push button or control pad.

AUTOMATIC/MANUAL HOST SWITCHING

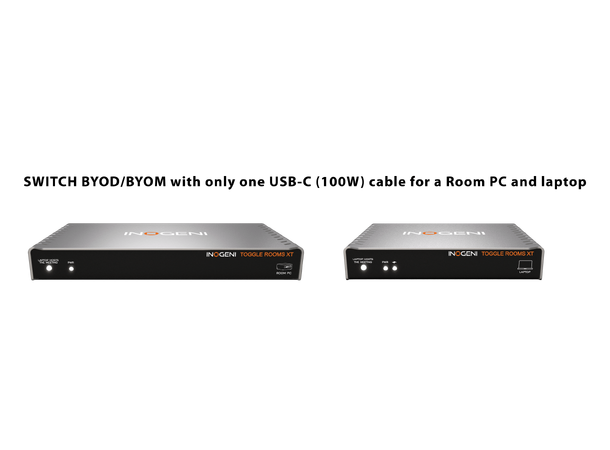

TOGGLE ROOM XT comprises 2 hubs
linked with a CAT6A extension of up to 70 m.

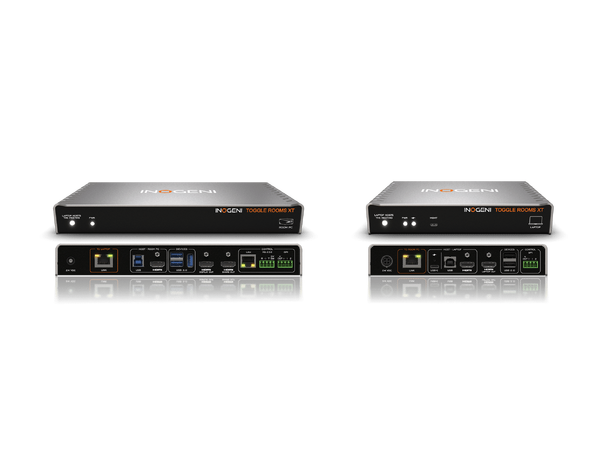

 Host connections for the TOGGLE ROOMS XT / Room PC & Laptop hubs

• Resolutions: 4K60 / 16:9 and 5K30 / 21:9 widescreen (HDMI)
• Reach: Up to 70 m/230 ft from the main Room PC with CAT6A cable
• Video signal: Up to 40 m/132 ft for 4K60 and up to 70 m/230 ft for 4K30

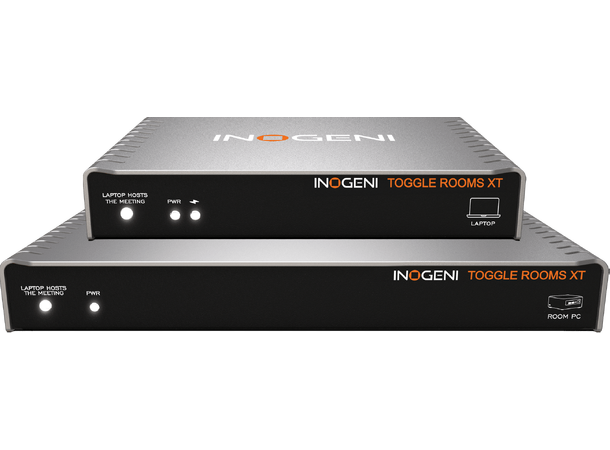

TOGGLE ROOMS XT – Room PC hub

Near the Room PC system, display, videobar, camera and audio.

 Link to the Room PC:

• 1x USB-B host connection and 1x HDMI 2.0 video input.

 INPUTS

• 3x USB 3.0/2.0 devices (high-quality cameras, videobar or audio devices).

 OUTPUTS
4K60 in 16:9 and 5K30 21:9 in widescreen (HDMI)

• 1x HDMI 2.0, up to 4K60 for DISPLAY connection from selected host.
• 1x HDMI 2.0, up to 4K60 for SHARE connection from BYOD to Room PC HDMI ingest.

CONTROL OPTIONS:

• RS-232
• IP
• 2x GPI

TOGGLE ROOMS XT – Laptop hub

Under the table connected to laptop, speakerphone and control pad.

INPUTS
Laptop connections

• 1x USB-C host connection (USB 2.0, DP alternate mode and power delivery 100W)
  • 1.8 m/6 ft USB-C 100W cable included.
  • 10 m/33 ft USB-C tested solutions. (view the list)

• – OR –

• 1x USB-B host connection and 1x HDMI 2.0 video input, up to 4K60.

Other devices

• 2x USB 2.0 devices (speaker phone, 360 camera, document camera, etc.).
• INO-HOST BUTTON via GPI.

 OUTPUT

• Routes Laptop content to control pads, such as MAXHUB XCore and the Logitech Tap.
• 1x HDMI 2.0

 COST-EFFECTIVE and RELIABLE SOLUTION

• Simple to install and connect (no driver required).
• Compatibility with leading MTR, Zoom Rooms, and UC systems.

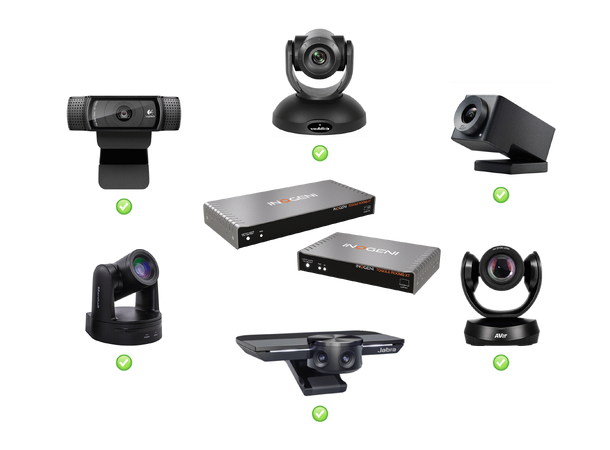

• Compatible with USB cameras, videobars and videoconferencing audio devices.

CONTROL OPTIONS

• RS-232
• IP
• 2x GPI
• Host switch button: Table surface-mounted button for BYOM laptop selection
  • Accessories are available separately

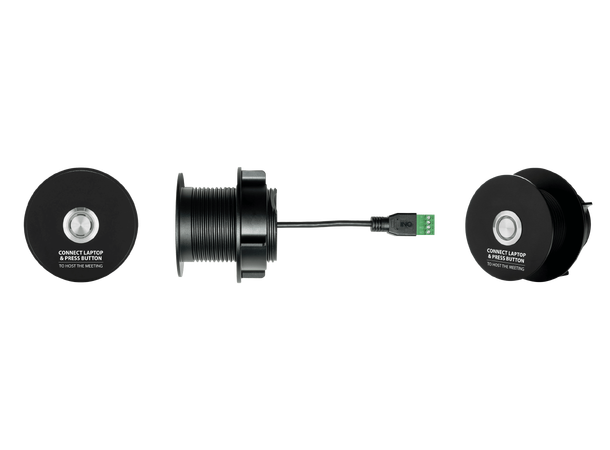

  • OPTIONAL: INO – Host button

Plug & Go with INOGENI’s TOGGLE ROOMS XT!

These videoconferencing systems (Room PCs) need TOGGLE ROOMS XT to enable BYOM and BYOD so that users can easily switch peripherals (cameras, microphones, speakerphones, display screens or videobars) to the guest laptop in the meeting room.
