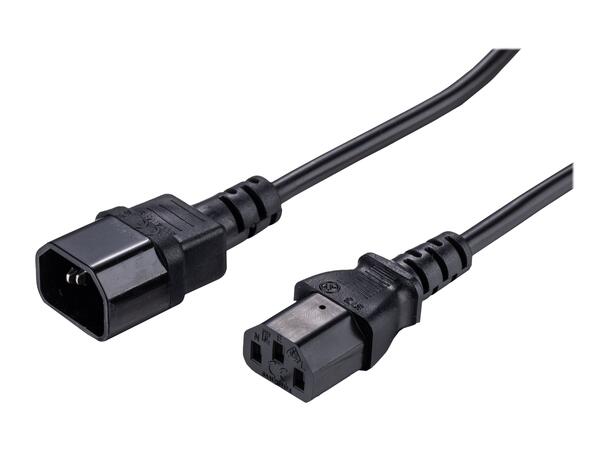

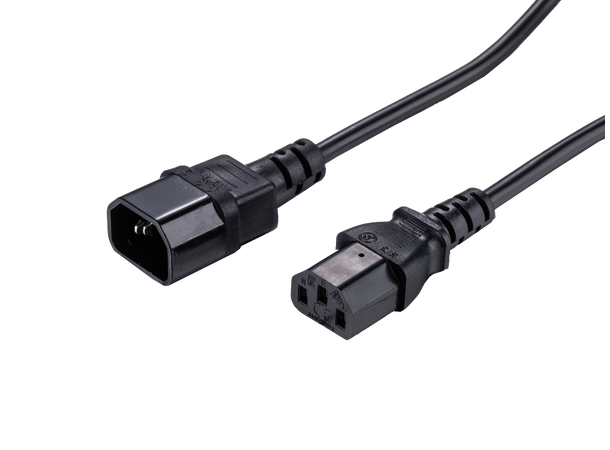

LinkIT strømkabel C13/C14 svart 0,5m LSZH | 3 x 1,5 mm² LinkIT strømkabel C13/C14 svart 0,5m LSZH | 3 x 1,5 mm²

LinkIT strømkabel C13/C14 svart 0,5m

LSZH | 3 x 1,5 mm²

Varenr: 31055
Alt. varenr: NYEC13C14-05M-HF
Vis varianter som liste
BeskrivelseEkstern InfoTeknisk infoAlternativer
Beskrivelse

LinkIT Power C13/C14 0.5m

LSZH | 1,5 mm² | Black



Halogenfree power cable H05Z1Z1-F(250V / 10A) with double secured contact. Plug according to  IEC 60320 C14, connector according to IEC 60320 C13, straight contact at both sides. Sertifications: Reach, RoHs, CE.



  • Straight contact at both ends
  • Connector according to IEC 60320
  • Sertifications: CE, RoHs, Reach.



Main Specifications

Length (m)

0.5

Color

Black

Brand

LinkIT

Conductor material

3 Wire

Connector type 1

C13 (F)

Connector type 2

C14 (M)

Number of conductors

3



Extended Specifications

NVP value

69%

Jacket material

LSZH

Angle contact 1

Straight

Angle Contact 2

Straight

Voltage

AC 110-250V

Amperage

10A

Conductor colour code

Blue, Brown, Green, Yellow

Gauge

3 x 1.5 mm²

Operating Temperature

-20 - 70 °C

Halogenfree

Yes

With Earthing

Yes

EAN

7090033564719

Certifications

CE, REACH, RoHS







Ekstern Info
ProdusentSupportDatasheetDoC
Teknisk info

Produktinformasjon

Farge Svart
Kabeltype Halogenfri
Lengde 0,5 m
Vinkel Rett
Ytterkappe LSZH (Halogenfri)
