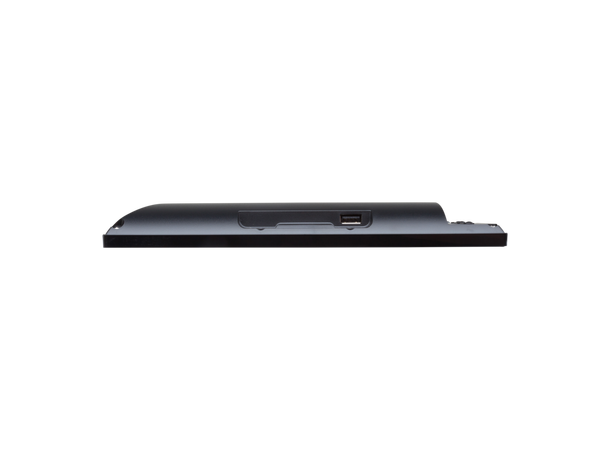

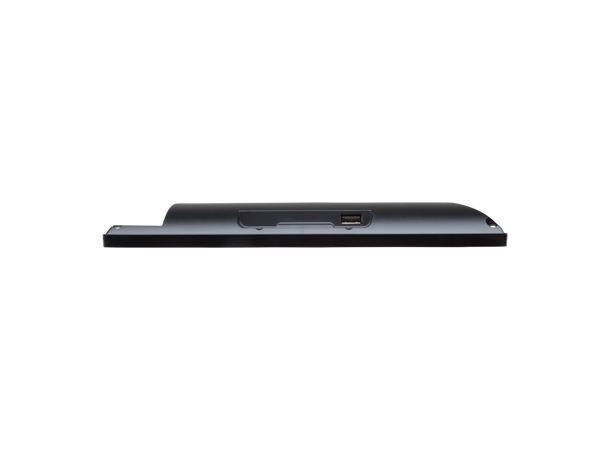

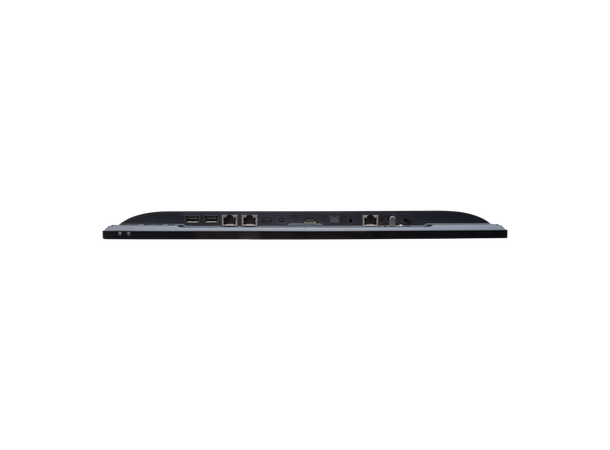

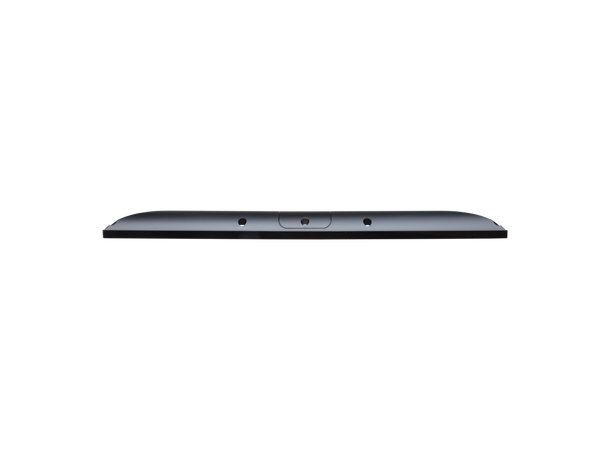

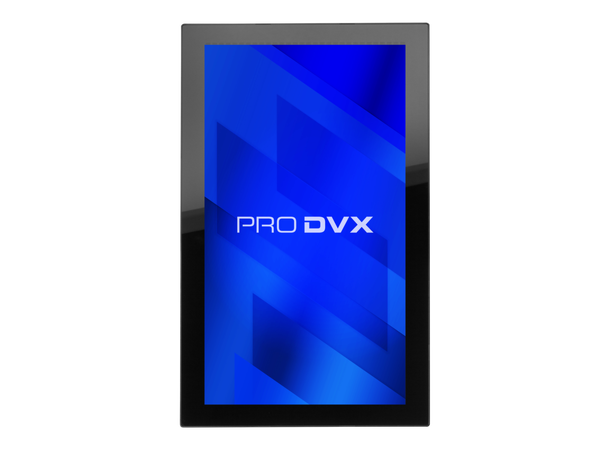

The ProDVX APPC-15XP is an Android Panel PC with a 15.6” Touch Display and Power over Ethernet (PoE). The ProDVX APPC-15XP comes with Android 8 (or optional Linux). This device can be connected through RJ45 LAN, WiFi, Bluetooth and contains a standard option to schedule reboot or shut down. This Android SOC Touch Display has a projected capacitive touch display and plastic housing. The APPC-15XP features a Pogo pin connection for optional accessories (Barcode Scanner, NFC Module, Camera Module) and VESA 100, for mounting brackets.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
300 cd/m2 |
| Viewing Angle |
H 170° / V 170° |
| Contrast Ratio |
800:1 |
| Touch Type |
10 point touch
projected capacitive |
| Convenience |
Landscape,Portrait,Table
Mode |
| Gyro |
N/A |
| System |
|
|
|
| Processor |
ARM (RK3288) |
| CPU |
Cortex A17, Quad Core,
RK3288 |
| GPU |
MALI T764 / 3D Graphic
Engine (4K) |
| Cooling |
Fanless |
| System Memory |
2 GB DDR3 SDRAM |
| Video Out |
mini-hdmi |
| Internal Storage |
16 GB eMMC Flash |
| External Storage |
SD-Card Slot (door) |
| Card Slot |
SD |
| OS |
Android 8 (optional
Linux) |
| LED Light Bar |
N/A |
| I/O Ports |
12 V DC-IN,2x COM
(RJ45),2xUSB,3.5 mm audio-out,Ethernet (RJ45),GPIO
Port,HDMI,Micro-USB,S/PDIF,mini-hdmi-out |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 4.2 |
| Power over
Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
N/A |
| Camera |
N/A |
| Video/Audio |
|
|
|
| Video
Support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio Support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo Support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
YES |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
| Physical |
|
|
|
| Housing |
Plastic |
| Color |
Black |
| Weight |
1300 g |
| Dimensions |
388 x 241 x 28 mm |
| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 2 A |
| Power Supply
Included? |
No |
| Power Usage |
10 ~ 20 Watt |
| Pogo Pins |
YES
(bottom/left/right) |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR1220 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90 %
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
FCC, CE, RoHS |
