| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
300 cd/m2 |
| Vieweing angle |
H 170° / V 170° |
| Contrast ratio |
800:1 |
| Touch Type |
10 point touch
projected capacitive |
| Convenience |
Landscape,Portrait,Table
Mode |
|
|
| System |
|
|
|
| CPU |
RK3399 (Dual Core
Cortex A72 with Quad Core A53) |
| GPU |
MALI T860MP4 / 3D
Graphic Engine (4K) |
| Cooling |
Fanless |
| System memory |
4GB LPDDR4 SDRAM |
| Video out |
mini-hdmi |
| Internal storage |
16GB eMMC |
| External storage |
SD-Card Slot (door) |
| Card slot |
SD |
| OS |
Android 11 |
| LED Light Bar |
Optional accessory |
| I/O Ports |
12 V
DC-IN,mini-hdmi-out,USB-C,3.5 mm audio-out,S/PDIF,USB 3.0,Ethernet (RJ45),2x
COM (RJ45),3x Pogo pin,GPIO,4x USB 2.0 |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 4.2 |
| Power over
Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
Optional accessory |
| Camera |
Optional accessory |
|
|
| Video/Audio |
|
|
|
| Video
support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Microphone |
YES |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
| Physical |
|
|
|
| Housing |
Plastic |
| Color |
Black |
| Weight |
1300 g |
| Dimensions |
388 x 241 x 28 mm |

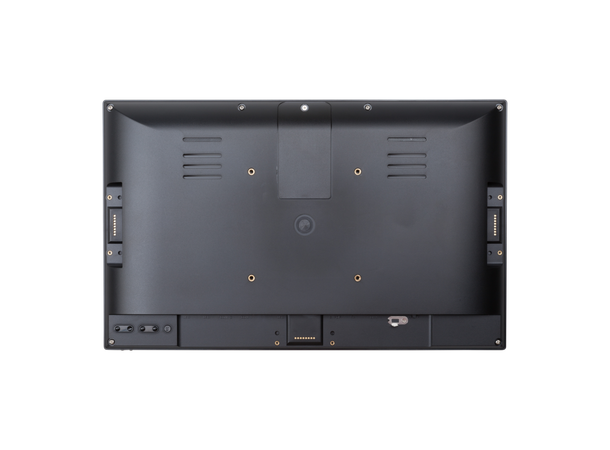

| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 2 A (EU, UK,
US) |
| Power Supply
Included? |
No |
| Power Usage |
10 ~ 20 Watt |
| Pogo Pins |
YES
(bottom/left/right) |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR1220 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90%
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
FCC, CE, RoHS |
