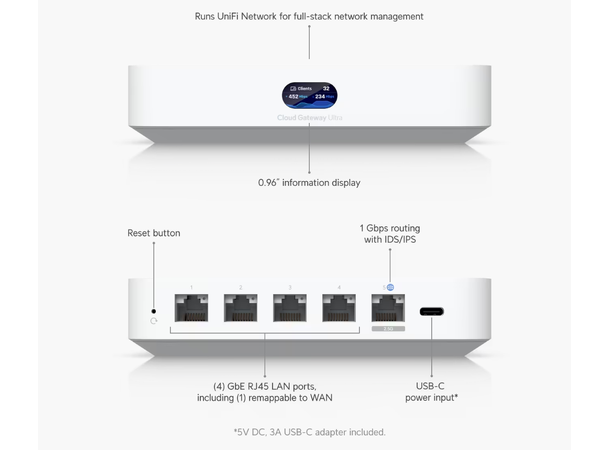

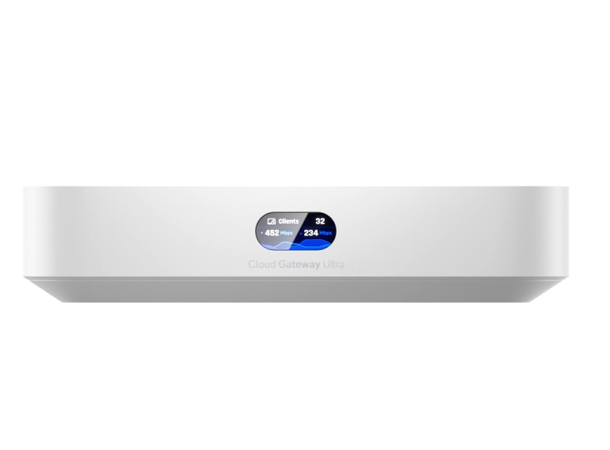

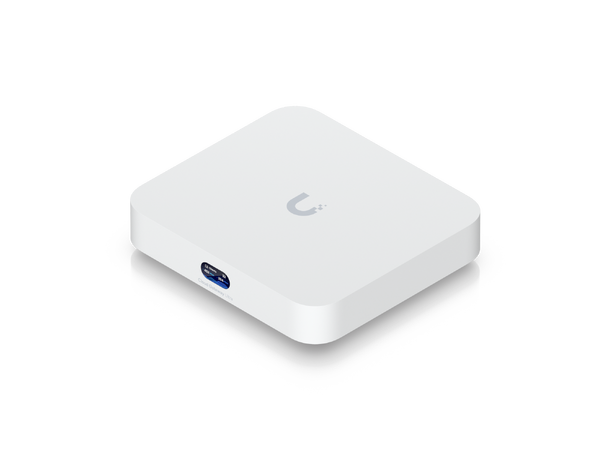

Ubiquiti UniFi Cloud Gateway Ultra
USB-C | 4xLAN | 1xWAN
Powerful and compact multi-WAN UniFi Cloud Gateway with a full suite of advanced routing and security features.
- Runs UniFi Network for full-stack network management
- Manages 30+ UniFi Network devices and 300+ clients
- 1 Gbps routing with IDS/IPS
- Multi-WAN load balancing
- 0.96" LCM status display

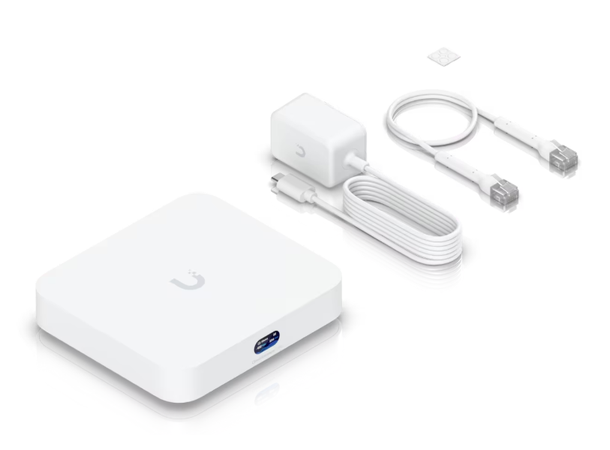

- USB-C powered (adapter included)
| Overview |
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| UniFi Application Suite |
| Network | ✓ |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Port Layout | 1 GbE RJ45: 4 (1G/100M/10M), 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
| Security |
|---|
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | ✓ |
| VPN & SD-WAN |
|---|
| License-Free SD-WAN | ✓ |
| Site Magic, IPsec, OpenVPN | ✓ |
| Identity Endpoint VPN, Teleport | ✓ |
| OpenVPN, WireGuard (Client) | ✓ |
| Networking |
|---|
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing (OSPF) | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| LTE Backup, Outage Reporting | ✓ |
| MAC Address Table Size | 2,000 |
| WAN/VPN Policy Routing | ✓ |
| Custom DHCP Server | ✓ |
| IPv6 ISP Support | ✓ |
| IGMP Proxy | ✓ |
| Hardware |
|---|
| Max. Power Consumption | 6.2W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| On-board Storage | 16 GB |
| Weight | 520 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet |
| Button | Factory reset |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel, SRRC |
| Software |
|---|
| UniFi iOS™ | Version 10.12.0 and later |
| UniFi Android™ | Version 10.11.2 and later |
