Ubiquiti Unifi Cloud Gateway Industrial

The UniFi Cloud Gateway Industrial (UCG-Industrial) is a rugged, fanless 10 GbE cloud gateway built for high-density PoE and advanced routing environments. With up to 350W total system power, it is designed for demanding commercial and industrial deployments requiring reliable performance and centralized management.

It supports the full UniFi Application Suite, including Network, Protect, Access, Talk, and Connect. The gateway can manage 50+ UniFi devices, 500+ concurrent users, and multiple high-resolution cameras.

A pre-installed 128 GB microSD card enables NVR functionality with additional expansion support. Its durable enclosure and wide operating range of -30°C to 50°C make it suitable for harsh environments.

Advanced security includes Stateful Firewall, Layer 7 filtering, DPI, VLAN segmentation, IDS/IPS, and content filtering. With the optional CyberSecure add-on, it supports 55,000+ threat signatures with real-time updates.

Supports wall, desktop, or rack installation.

---

Technical Overview

Performance

• Quad-core ARM Cortex-A73, 2.2 GHz

• 3 GB RAM

• IDS/IPS throughput up to 5 Gbps

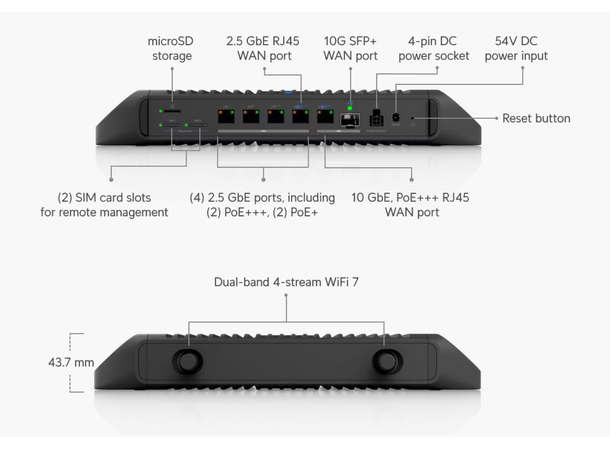

Ports & Connectivity

• (1) 10G SFP+

• (1) 10 GbE RJ45

• (4) 2.5 GbE RJ45 (2 PoE+++ 90W, 2 PoE+ 30W)

• Total PoE budget: 270W

WiFi

• WiFi 6 / WiFi 7 support

• Up to 4.3 Gbps (5 GHz)

Environment & Power

• 54V DC, 350W PSU included

• Operating temperature: -30°C to 50°C

• NDAA compliant

• CE, FCC, IC certified

A compact, high-performance industrial gateway combining advanced routing, integrated security, and high-power PoE in one platform.

_{*The onboard SIM slots are exclusively for Remote SIM integration with the UniFi 5G Max Outdoor. Support coming soon via software update.}
