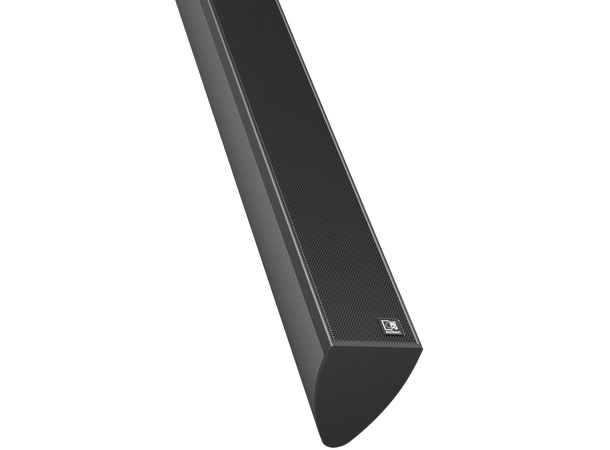

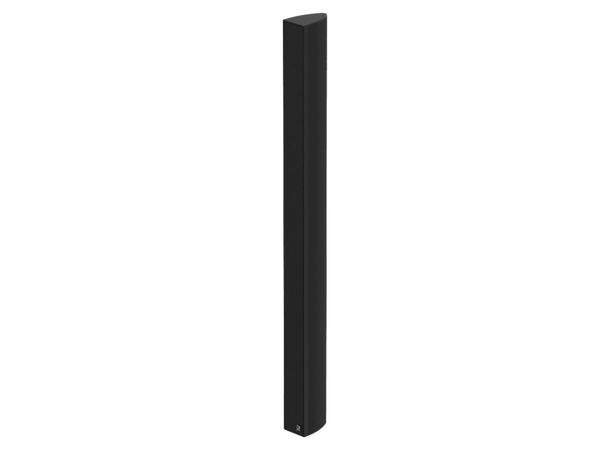

The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 174° x 9° (-6 dB avg 1 kHz - 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues

A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W and 10W and/or low impedance (12O) systems.**

To guarantee the optimal performance and long term reliability in outdoor circumstances, various specific features are provided. The connection of the loudspeaker is performed using a waterproof rotatable AWX-5 connector whereby the desired power tap can be selected depending on the rotation of the connector. Secondly, the 12 drivers receive a special coating to protect them from the elements while an acoustically transparent and water-repellent cloth driver keeps penetrating water at a safe distance.

Further added reliability is achieved by using an aluminum front grill and a stainless steel mounting bracket. Together, these improvements result in a weatherproof IP55 column speaker of exceptional quality and design!

*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.

**Due to an optimized calibration, the KYRA12, compared to its predecessor the AXIR, will have a standard low impedance of 12 ohms instead of 6 ohms.

VARIANTS
KYRA12/OB - Outdoor black version
KYRA12/OW - Outdoor white version

SYSTEM SPECIFICATIONS
Speaker type Broadband column
Max. Power 240 W
RMS Power 120 W
Impedance 12 ?
Sensitivity (1W/1m) 92 dB
Sound Pressure (Max. W/1m) 113 dB
Drivers 12 x 2”
Ingress Protection rating IP55
Connectors Waterproof AWX-5 connector
Frequency Range (-10 dB) 120 Hz - 20 kHz
Line Transformer Tappings 1 40 W - 125 ? (70V)
2 250 ? - 100 V / 40 W - 70 V / 20 W
3 500 ? - 100 V / 20 W - 70 V / 10 W
Temperature Operating -20 - +50 °C
Incline angle Bottom 13°
Left 42°
Right 42°
Dispersion Horizontal 174° (-6 dB avg 1 kHz - 4 kHz)
Vertical 9° (-6 dB avg 1 kHz - 4 kHz)
PRODUCT FEATURES
Front finish Aluminium grill
Construction Aluminium with plastic side covers
Dimensions 70 x 1006 x 101 mm (W x H x D)
Colours Black (KYRA12/OB - RAL9005)
White (KYRA12/OW - RAL9003)
Accessories Included 2-way Revolving mounting bracket
5-pin AWX5 connection cable
