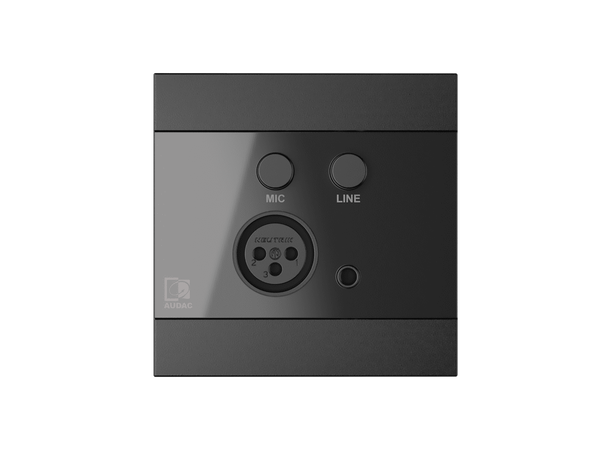

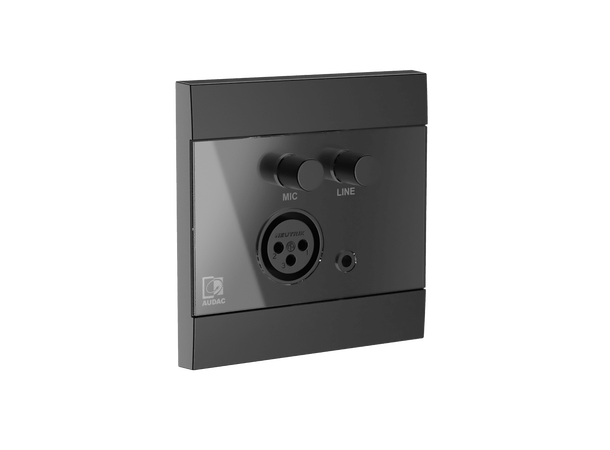

The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523 and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

The WP210 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment

SYSTEM SPECIFICATIONS
Connection 3.5 mm jack input (Stereo line input)
Female XLR input connector (Microphone input)

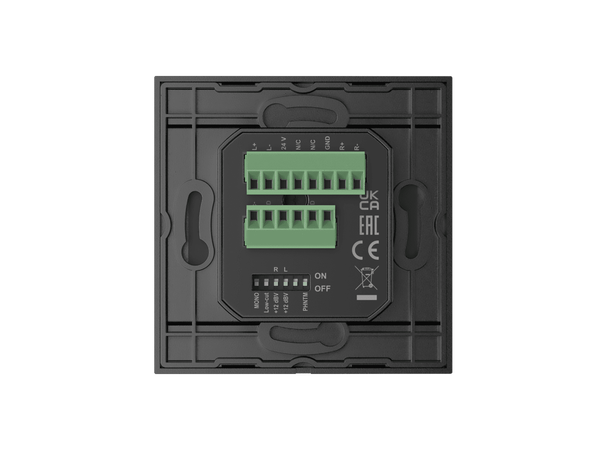

6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs)
8-pin terminal block (3.81 mm pitch) output connection
Control Individual input level control for Mic & Line
Phantom power (DIP switch on rear)
Low-cut (Mic) enable / disable (DIP switch on rear)
Mono / Stereo (DIP switch on rear)
Outputs Level +12 dB
0 dB
Inputs Wall Panel Type 3.5 mm jack stereo line input connection
XLR microphone input connection
Mic & Line inputs on rear for permanent connections

PRODUCT FEATURES
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Colours Black (RAL9005) (WP210/B)
White (RAL9003) (WP210/W)
Front finish Elegant ABS front panel with glass
Accessories Optional Flush mount Installation boxes Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG
