Audac Høyttaler Nelo706V/W Hvit

Fulltone vegghøyttler 6,5" 6W 100V 8 Ohm

Varenr: 127155
Alt. varenr: Nelo706V/W
BeskrivelseEkstern InfoTeknisk infoAlternativer
Beskrivelse

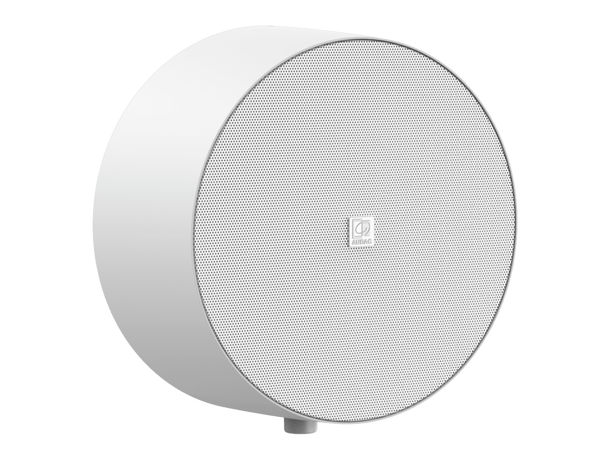

 The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colors (Black /B & White /W) to blend in with any residential, commercial or industrial environment.


SYSTEM SPECIFICATIONS
Max. Power 20 W
RMS Power 10 W
Sensitivity (1W/1m) 96 dB
Speaker type Broadband
Connection SnapConnect™
Drivers 6.5” Full Range
Volume control Integrated rotary volume controller (only NELO706V)
Impedance 8 ?
Sound Pressure (Max. W/1m) @ 100 V 106 dB
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 833 ? - 100 V / Not used - 70 V / 6 W
2 1667 ? - 100 V / 6 W - 70 V / 3 W
3 3333 ? - 100 V / 3 W - 70 V / 1.5 W
Dispersion Conical 140°

PRODUCT FEATURES
Colours Black & White
Front finish Steel grill
Construction ABS

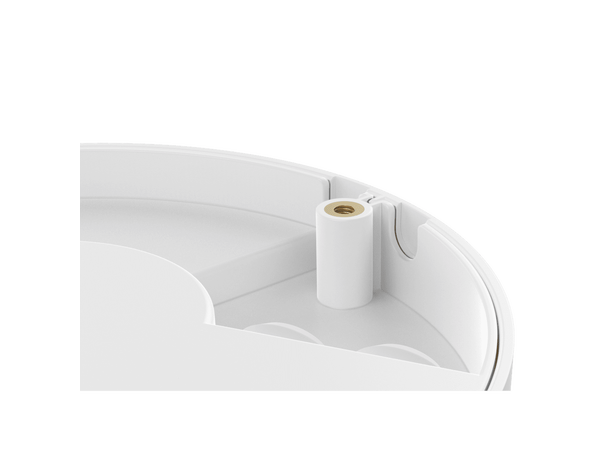

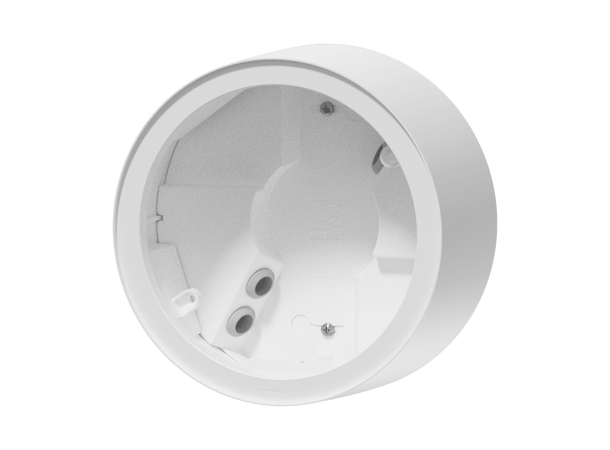

Mounting Wall/Ceiling mounting (two screw holes)
CSK100 ceiling suspension kit (optional)
Colours White (RAL9003) (NELO706/W)
Black (RAL9005) (NELO706/B)
Dimensions 206.5 x 95 mm (Ø x D)
Operating temperature -25 °C ~ 70 °C
Ekstern Info
Teknisk info

Produktinformasjon

Effekt 6 watt
