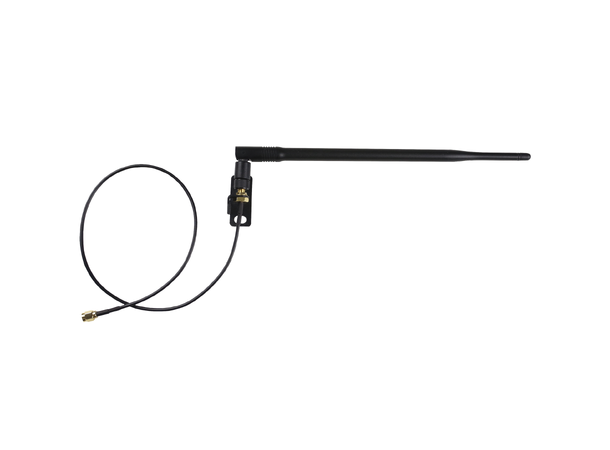

The BAE100 Bluetooth antenna extender kit, allows increasement of reception range for a Bluetooth (2.4 GHz) receiver when installed to a 19" equipment rack or any other (shielded) enclosure. The kit includes a 7 dBi (279 mm) antenna with a higher gain and reception range compared to most standard antenna's. It consists of a special multifunctional mounting bracket that offers the possibility to mount to a single 19" rack space enclosure. Mounting of the antenna on front of a 19" device (e.g. preamplifier with Bluetooth functionality) can also be done with the included 1 meter connection cable (SMA Male - Female), while the included 5 meter cable allows placement outside of the enclosure (e.g. wall mounting). Connections are made by SMA type connectors.





SYSTEM SPECIFICATIONS
Impedance 50 Ohm
Polar Pattern Omnidirectional
Connection SMA Straight plug reverse
Frequency Range 2.4 GHz ~ 2.5 GHz
Antenna Gain 7.0 dBi

PRODUCT FEATURES
Dimensions 12 x 279 mm (Ø x L)
Weight 0.135 kg (incl accessories)
Construction ABS
Accessories Included 1 m connection cable
5 m connection cable
Mounting bracket
