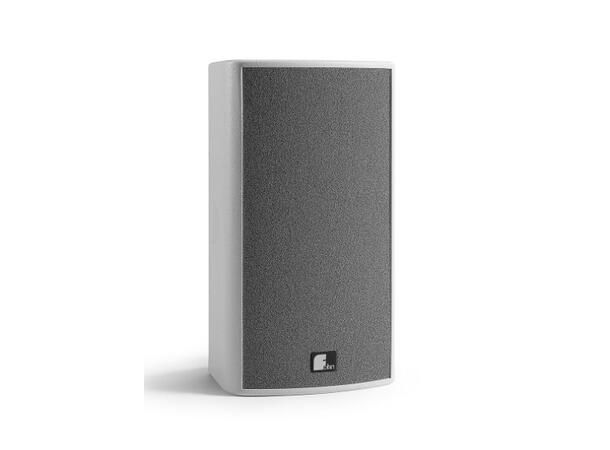

The AT-10 is a passive fullrange speaker for fixed installations. It impresses with its high performance capacity and compact dimensions.
In addition to outstanding technical features, the models of the Arc series are generally characterized by their attractive design.

Main features

• 8" / 1" compression driver on rotatable CD horn, electronic high frequency protection
• Nominal power rating: 230 watts at 8 ohms
• Dispersion: 90° × 60° or 60° × 40° (H × V)
• SPL max.: 125 dB

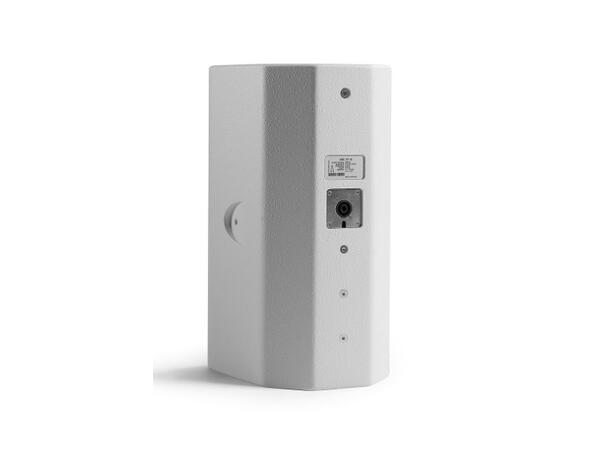

• Dual connection panel: Speakon and 4-pole connector (inside, with cable outlet)
• High-quality wooden enclosure (multiplex birch)
• Available in RAL Classic, NCS or Pantone colors on request
• Optionally available with weatherproof PU coating
• Various mounting options
• In order to ensure performance and operational safety, Fohhn system amplifiers including the correct speaker preset are required.





  Technical data

  Electroacoustic features

  acoustic design

  passive loudspeaker, 2-way, vented design

  power rating (nominal)

  230 watts

  power rating (program)

  460 watts

  power rating (peak)

  920 watts

  components

  8" / 1" on rotatable CD-horn, with self-resetting IPC[*]-HF protection, fully neodym

  sensitivity

  95 dB

  maximum SPL

  125 dB

  frequency range

  55 Hz – 20 kHz

  2-way design

  yes

  nominal impedance

  8 ohms

  nominal dispersion (h × v)

  90° × 60° or 60° × 40°

  Physical features

  enclosure

  multiplex birch plywood, reinforced with steel braces

  connectors

  1 × Neutrik NL4 Speakon and 4-pole connector inside

  dimensions (w × h × d)

  244 × 440 × 250 mm

  weight

  approx. 9.5 kg

  standard colours

  textured paint, black or white

  front design

  acoustic foam, same colour as enclosure

  protection grille

  steel grille, ball impact resistant, powder coated

  mounting points

  5 × M8 and 3 × M6 thread

  Optional features

  optional colours

  RAL Classic / NCS / Pantone on request

  integrated 100 V transformer

  60 / 30 / 15 W or 120 / 60 / 30 W

  optional weather protection

  polyurethane coating, water-repellent speaker cone impregnation

  CAAD simulation data

  simulation data

  EASE, Ulysses, Fohhn Designer

  power rating (nominal/program): according to IEC-60268-5 (long term/short term)
  power rating (peak); maximum SPL: peak, 20 ms with bandpass filtered pink noise signal according to IEC 60268-2 at one octave above the lower limit of the frequency range, with speaker preset
  sensitivity: 2,83 V at 8 ohms (2 V at 4 ohms, 4 V at 16 ohms) at a distance of 1 m under anechoic fullspace conditions
  frequency range: -10 dB under anechoic halfspace-conditions with speaker preset
  weight: net weight without optional equipment
  nominal dispersion: -6 dB compared to the main dispersion axis
