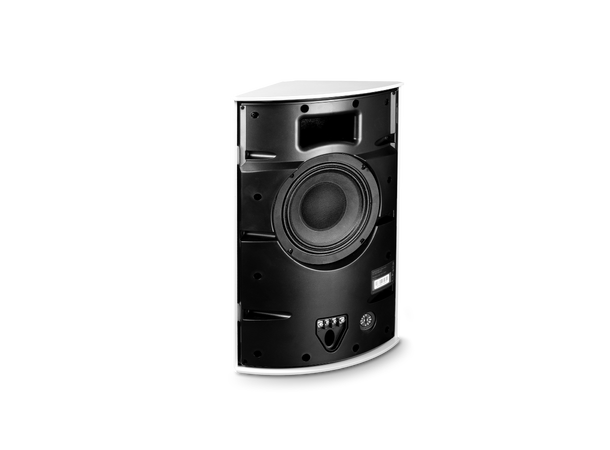

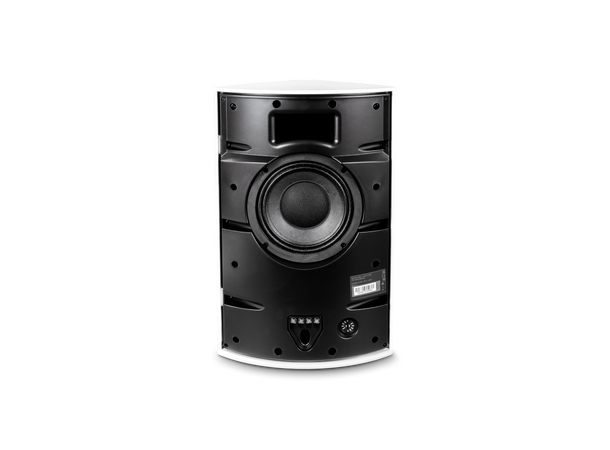

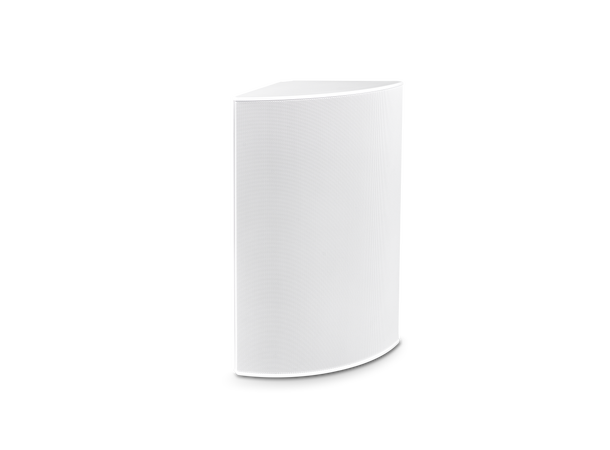

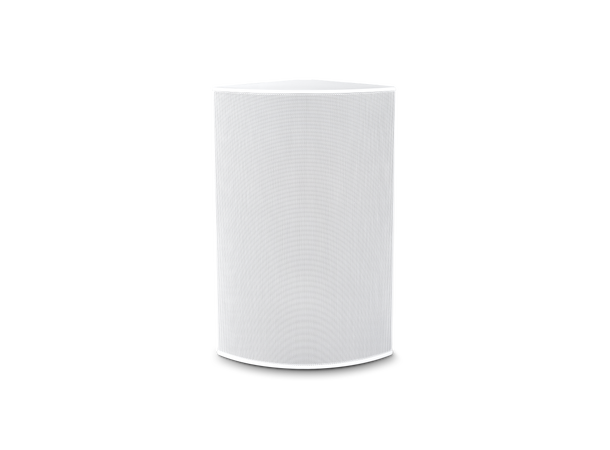

Blaze Audio CiX6V
White | 6" Coaxial | 1" compression driver | 100V/8 Ohm | 100°x100° H/V
CiX6-V: Passive, coaxial, full-range loudspeaker w/ switchable high-impedance mode
CiX6-V is a feature-packed compact coaxial-driven full-range loudspeaker with high output and solid full-range acoustic performance. The cabinet design is exceptionally discreet while offering true pro audio sound. With a symmetrical pattern, full coverage can be achieved with relatively few speakers, which makes the CiX6-V especially suited for indoor and outdoor commercial installations.
The patented triangular design ensures fast and easy installation. The integrated mounting points allow the cabinet to mount flush in corners or onto walls and ceilings without brackets. For even easier and more flexible installation, the cabinet can be mounted on two slider brackets. The cable terminal is hidden behind the grille with the cable route from the rear of the cabinet, making the cable connection invisible both in vertical and horizontal applications.
The CiX6-V can be run in either 8 ohm or 70/100 volt.
CiX6-V excels in mid-sized commercial installations where higher output and full-range background and light foreground audio is required; applications include hospitality, restaurants, bars, lounges, houses of worship, and retail environments.
For enhanced bass performance, the CiX6-V can be teamed indoors with our C8S and C12S subwoofers.
Features
- Coaxial design
- 6,5" woofer
-
1” compression driver
- Tuned bass port
-
IP55 rated (went ports)
-
Triangular ABS cabinet
- Hidden cable connection
-
Switchable 8 ohm or 70/100V mode
-
Get it in black or white
Specifications
|
Sensitivity SPL / 1W @ 1 m
|
92 dB
|
|
Maximum SPL, long term
|
114 dB
|
|
Maximum SPL, peak
|
120 dB
|
|
Frequency response
|
65 - 20.000 Hz
|
|
Nominal impedance
|
8 ohm
|
|
Dispersion
|
100 ° vertical / 100 ° horizontal
|
|
Ingress Protection
|
IP55
|
|
Recommended amplifier
|
100 - 200 Watt
|
|

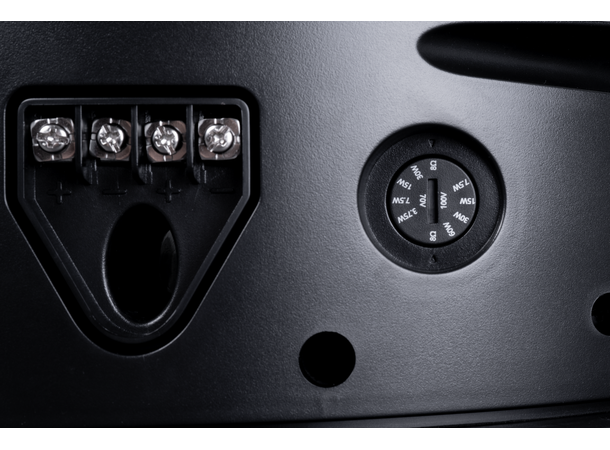

CiX6-V transformer taps
|
70V: 3.75, 7.5, 15, 30 W
100V: 7.5, 15, 30, 60 W
|
|
Measurements
|
420 x 267 x 190 mm
(16,54 x 10,51 x 7,48 in)
|
|
Weight
|
5,3 kg (11,7lb)
|
|
|
|
Colour
|
White (RAL9016)
Black (RAL9005)
|
