Multi-Zone PoE-powered wall-controller
Features
- Minimalist Danish design with
concealed mounting screws.
- Controls source, volume, and
mute for up to 8 audio zones.
- Adjustable display themes,
brightness, and button backlight.
- Available in matte white
(RAL9003) and matte black (RAL9005).

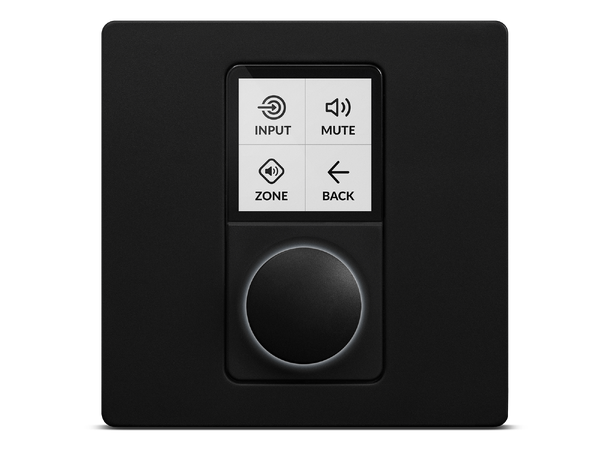

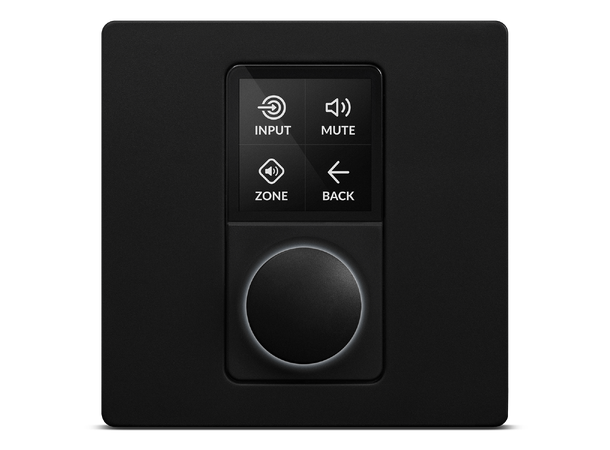

- Integrated display with rotary
encoder and center-click navigation.
- Exclusive pairing and
configuration with PowerZone™ Connect amps (firmware 1.8+), supporting up
to 8 controllers per amp.
- Amplifier power on/off control.
- PoE Class 1 (48V) powered over
Cat5e or higher (no separate power needed).
- Optional PIN lock with
multi-level access.
- Configurable for single- or
multi-zone control.
- Supports DHCP and static IP
addressing.
|
Amplifier Compatibility
|
PowerZone™ Connect series
|
|
External
Dimensions (H x W)
|
86.79 x 86.79 mm
3.42 x 3.42 in
|
|
Weight
|
120 g, 4.2 oz.
|
|
Maximum
Cable Length (CAT 5e)
|
100 m, 328 ft
|
|
Power Consumption
|
PoE Class 1 / 3.84 W max
|
|
Colour
|
Black, White
|
