The EWB100 is a versatile solution that combines functionality, security and minimalist design. Designed for screens from 26 to 40 inches, it will work well in both domestic and commercial spaces – offices, conference rooms or point of sale.
The mount is characterized by a lightweight design (only 1.2 kg), while maintaining high strength – lifting capacity up to 30 kg. Thanks to the low distance from the wall (only 26 mm), the screen remains close to the surface, which provides a modern, orderly look to the entire installation.

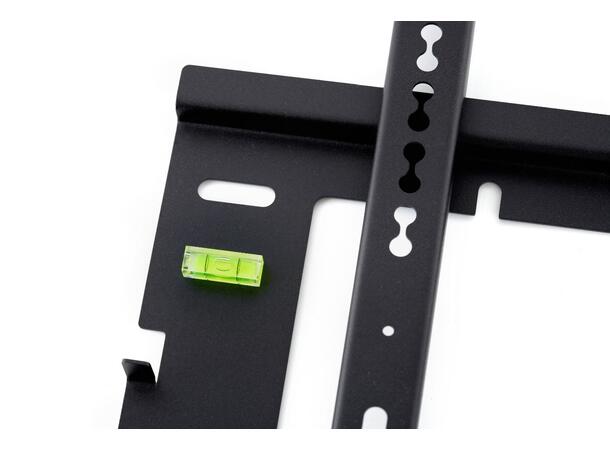

Mounting the EWB100 is quick and intuitive – the mount is equipped with a built-in leveler, which greatly facilitates leveling during installation. Once the screen is hung, it is possible to adjust it laterally, which allows for a precise fit inside, even if the drilling was not perfectly central.
Moreover, the mount has protection against unauthorized removal – the use of special screws prevents accidental or intentional removal of the screen, making it an excellent choice for public spaces as well.
EWB100 fits concrete, drywall, brick and wooden walls. All necessary mounting screws are included, allowing you to begin installation right away.
Technical specifications
| Product dimensions | W: 495 mm D: 26 mm H: 370 mm (19.49? x 1.02? x 14.57?) |
| Product weight | 1.2 kg (3 lb) |
| Max. distance from mounting surface | 26 mm (1,02?) |
| Min. distance from mounting surface | 26 mm (1,02?) |
| Max. mounting pattern | 440 mm x 338 mm |
| Min. mounting pattern | 30 mm x 65 mm |
Logistics data
| Index | WUSC-EWB100c-B |
| EAN code | 5908252963485 |
| Color | black |
| Package dimensions | 505 mm x 205 mm x 35 mm (19.88? x 8.07? x 1.38?) |
| Package weight | 1.5 kg (3 lb) |
| HS Code (Harmonized System ) | 732690 |
| HTS code (Harmonized Tariff Schedule ) | 7326909890 |
| Country of origin | Poland |
