HH Høyttaler Tessen TNi-W8PRO-WH Hvit

8" + 1" 200W AES Kontinuerlig 400W 8Ohm

Varenr: 131749
Alt. varenr: TNi-W8PRO-WH
BeskrivelseEkstern InfoTeknisk infoAlternativer
Beskrivelse

HH Speaker Tessen TNi-W8PRO-WH White

8" + 1" 200W AES Continuous 400W  8Ohm

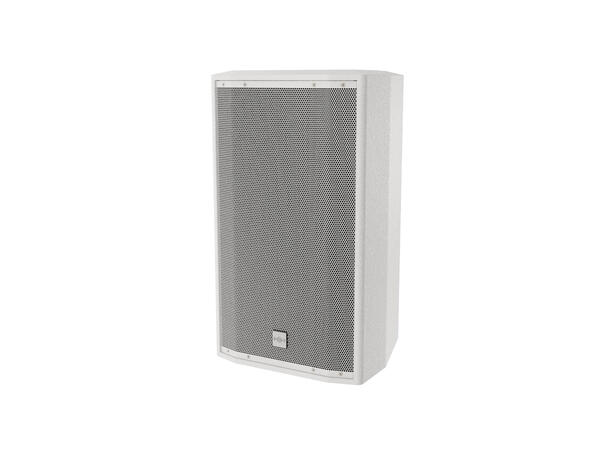

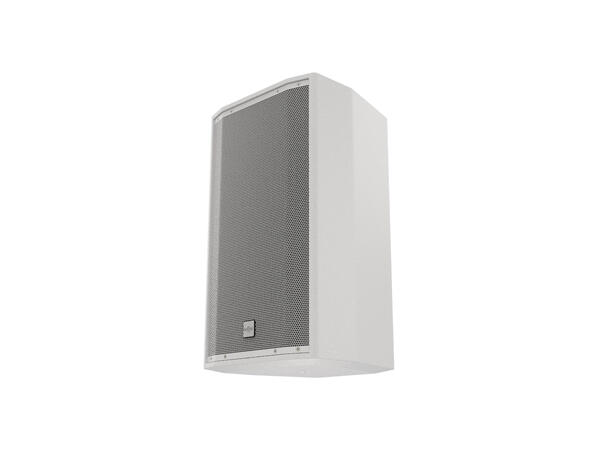

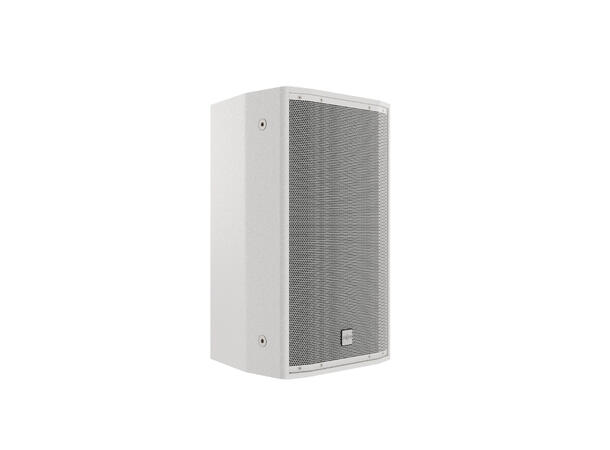

The HH TNi-W8PRO is a high power, compact, 2-way, full-range loudspeaker system comprised of the HH 8-inch (2-inch voice coil) high power HH low frequency driver and 1-inch Celestion CDX1-1070 high-frequency compression driver. The HH/Celestion designed waveguide is rotatable so the loudspeaker can be used in either vertical or horizontal orientation. Flexible input connections via either M4 barrier strip or Euroblock provide versatile connecting options. Mounting options include: 7 x M10 Penn-Elcom fly points, 4 x M8 mounting points for optional TNi-BRK30 mounting bracket. All enclosed in a robust wooden enclosure, powdercoated steel grille with acoustic foam backing in black or white finish.



System Type8-inch 2 way Passive Speaker, Bass Reflex
LF Driver8-inch HH Designed High Performance Driver, 2-inch Voice Coil
HF Driver1-inch Celestion CDX1-1070
Nominal System Impedance8 ohm
Power200W AES, 400W Continuous, 800W Peak
Recommended Amplifer400-800W @ 8 Ohms
Sensitivity (1W/1M)96 dB
Max SPL119 dB SPL, 125 dB SPL (Peak)
Frequency Response (-10)52 - 20kHz
Frequency Response (-3)63 - 18kHz

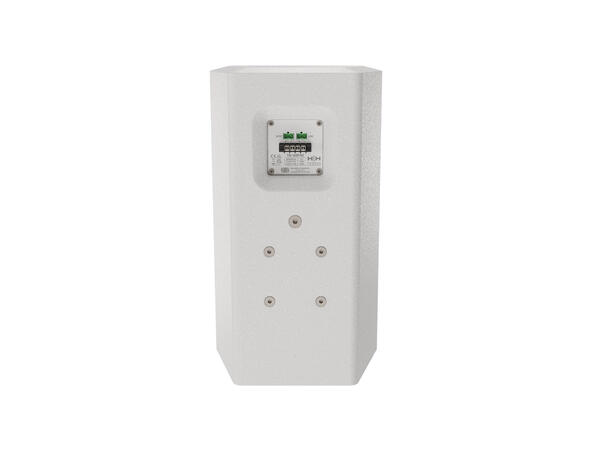

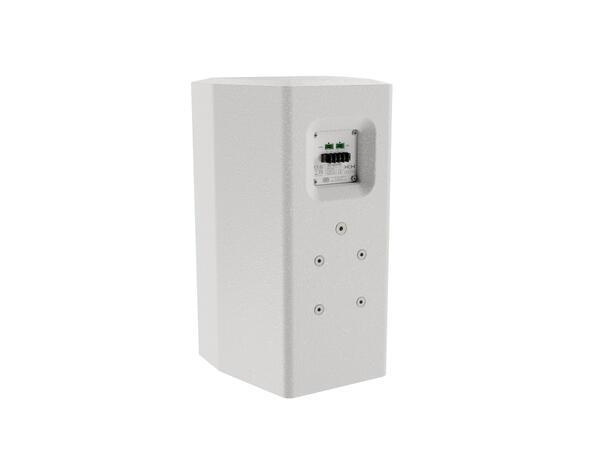

Input Link ConnectorEuro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
Horiz. Dispersion Angle 1000Hz90°
Vertical Dispersion Angle 1000Hz60°
Crossover Frequency2.2KHz
CabinetRobust all wood construction (15mm plywood)
FinishHard wearing spatter finish (White or Black option)

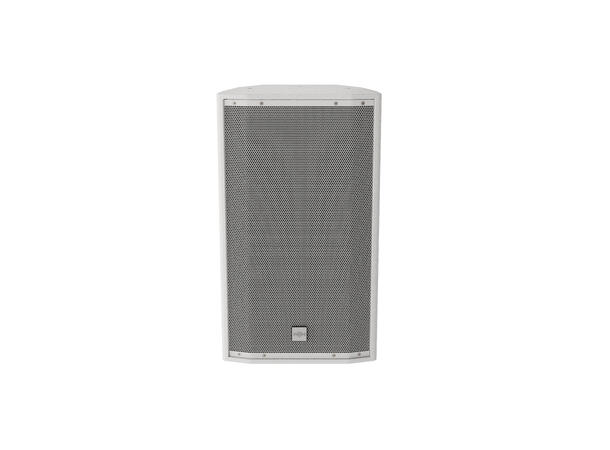

GrillePowdercoated steel with acoustic foam backing

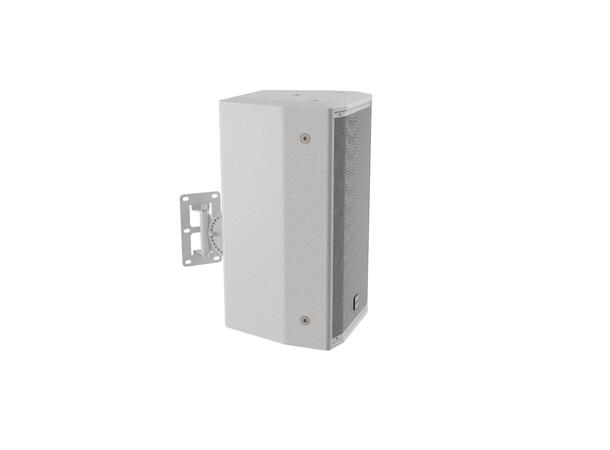

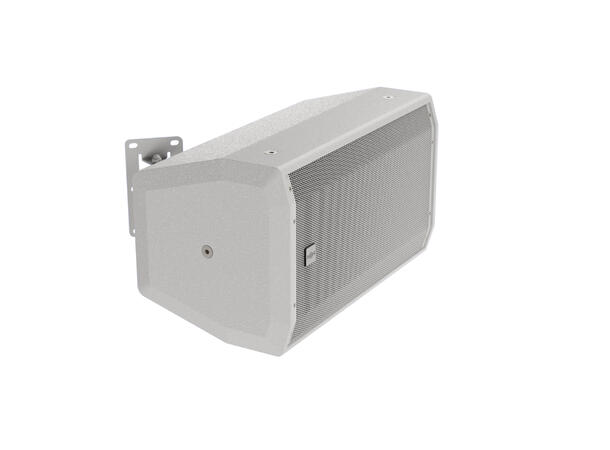

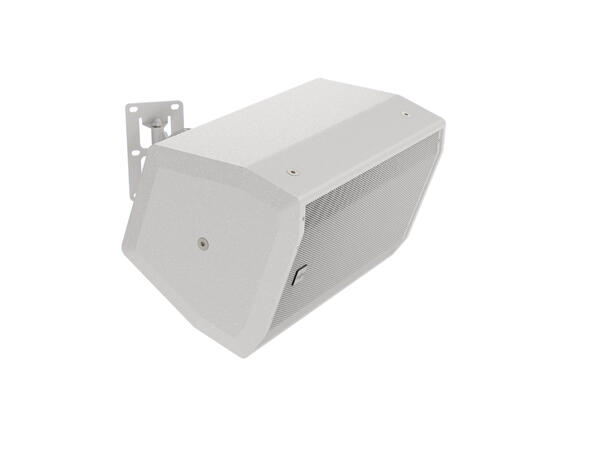

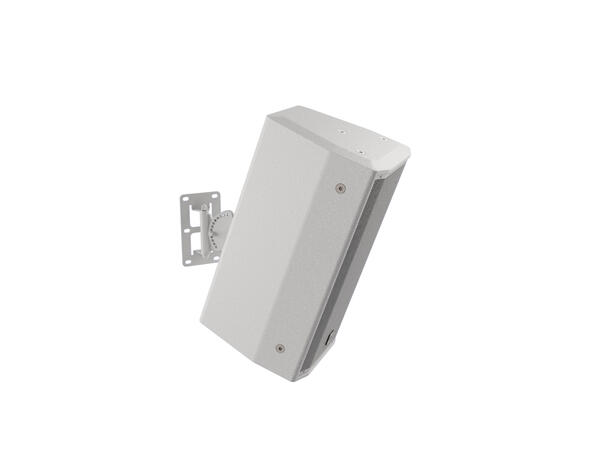

Mounting Bracket4x M8 mounting points for optional HH-BRK30

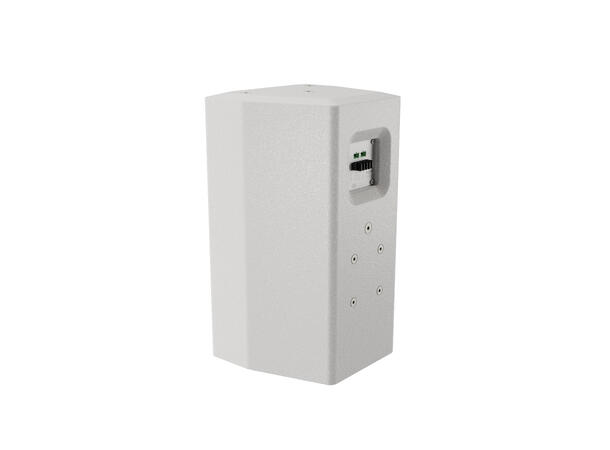

Mounting Points7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)
Unit Dimensions (Hwd)474 x 270 x 257mm, 18.7" x 10.6" x 10.1"
Unit Weight10Kg, 22 lbs
Carton Dimensions (Hwd)570 x 370 x 350mm, 22.4" x 14.6" x 13.8" , 0.074 M3
Packed Weight12Kg, 26.5 lbs
