Expected Delivery: Mid June

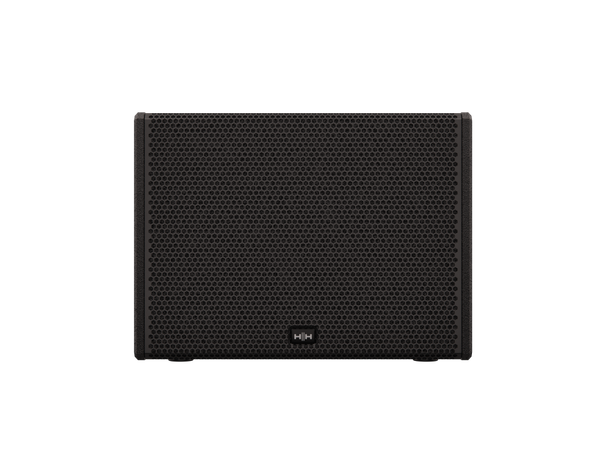

HH Subwoofer Tessen TNA-1200S Passiv
- Driver Size: 12"
- Frequency Response: 35-2kHz (-10dB)
- Power Handling: 600W SPL
- Max SPL: 126dB
- Impedance: 8 Ohm
Pictures will be updated when available.
Flyer: TNA-1200S-G3 Sales Flyer
Product Overview:

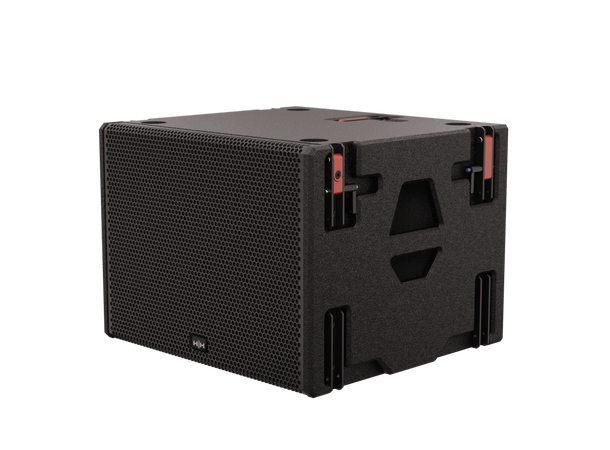

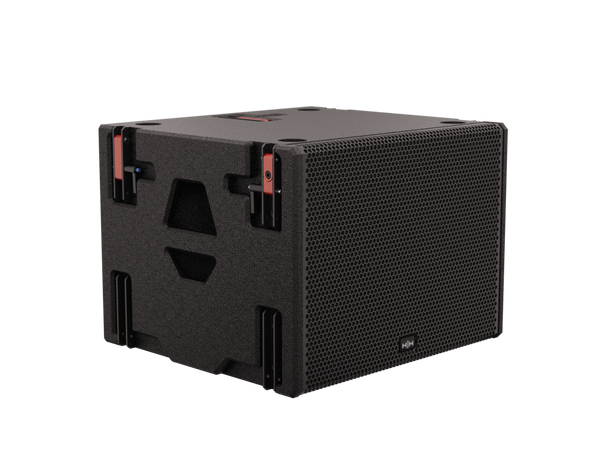

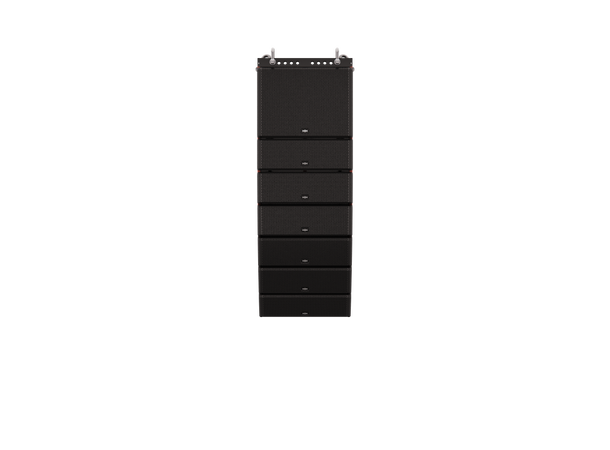

The TNA-1200S-G3 is a 12-inch passive subwoofer, designed to pair seamlessly with the TNA-2051-G3 line array enclosures. Built for high performance, this subwoofer features an HH-designed high-performance driver with a 2.5-inch voice coil, delivering powerful and consistent sound reproduction.
With a 300W AES power handling capacity and a 95 dB SPL sensitivity (1W/1m), the TNA-1200S-G3 offers a maximum SPL of 126 dB SPL (1m).

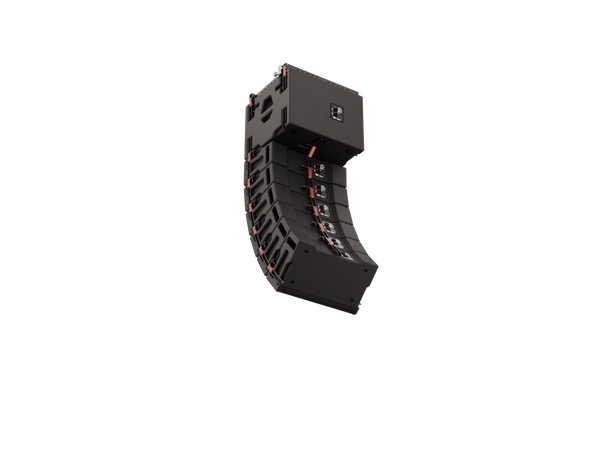

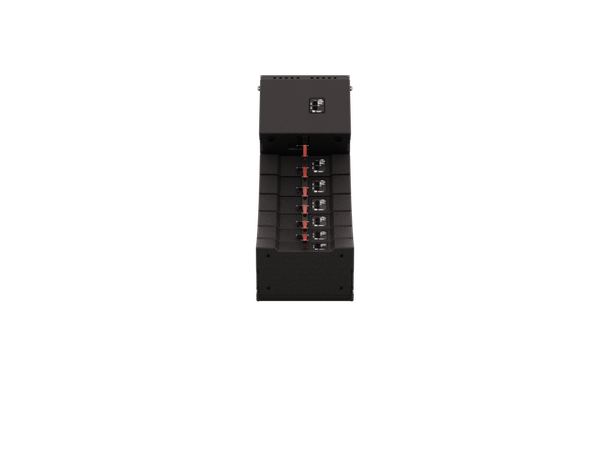

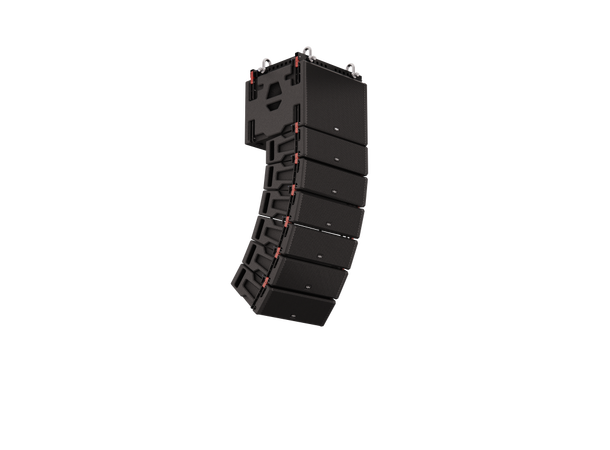

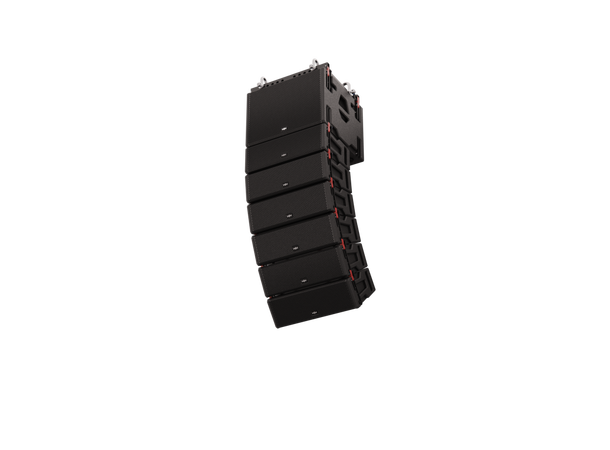

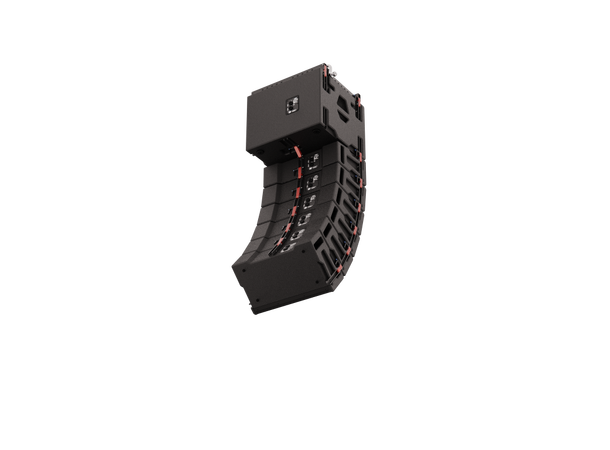

This third-generation model benefits from the same mechanical upgrades as the TNA-2051-G3 and TNA-2120SA-G3. It also includes an integrated pin-based rigging system, making setup and teardown easier than ever. The new hardware design is perfect for a range of applications, from fixed installations to small-to-medium scale touring setups.
Key Features:
- System Type: 12" Passive Subwoofer, Bass Reflex
- Woofer Size: 12" HH Designed High Performance Driver, 2.5" Voice Coil
- Impedance: 8 ohm
- Power Rating: 300W AES, 1200W Peak
- Recommended Amplifier: HH M-750D - 2 x 750W RMS Stereo Power Amplifier
- Sensitivity (1W/1m): 95 dB SPL
- Maximum SPL (1m): 119dB SPL, 125dB SPL (Peak)
- Frequency Response (-10dB): 35 - 200Hz
- Frequency Response (-3dB): 40 - 500Hz

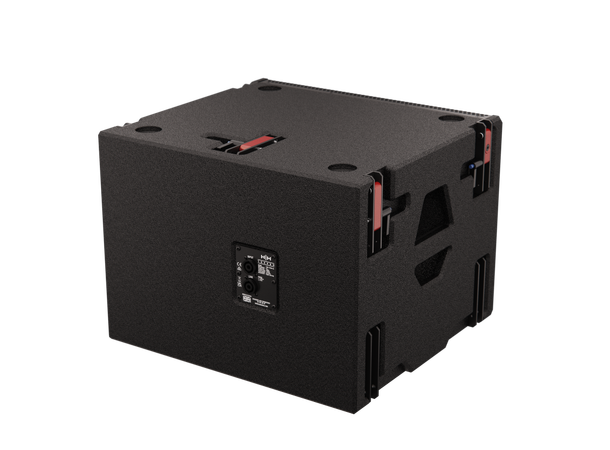

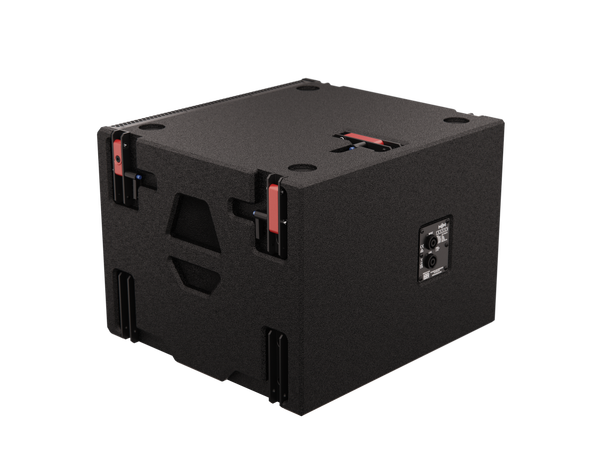

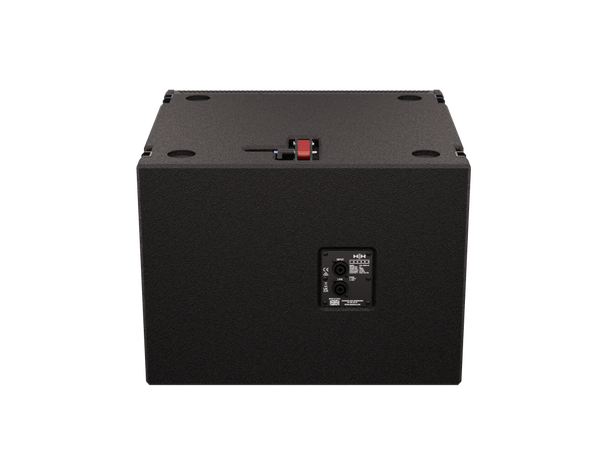

Connectors & Mounting:
- Input Connector: NL4 ±1 Twist Lock Connector
- Link Connector: NL4 ±1 Twist Lock Connector
- Mounting Bracket: TNA-BRK1-G3
- Mounting Points:
- 16 x M8 side mounting points for rigging system
- 4 x M8 top/bottom mounting points for rigging system (Included)
- Hardware: Integrated pin-based rigging system
Construction & Dimensions:
- Material: Robust all-wood construction (15mm plywood)
- Finish: Hard-wearing black spatter finish
- Grille: Powder-coated steel with acoustic foam backing
- Unit Dimensions (HWD): 360 x 490 x 455mm (14.2" x 19.3" x 17.9")
