HH Aptur Pendelhøyttaler APT-P6 Hvit

6,5" 2-veis coax 60/30/15W@100V120W@8Ohm

Varenr: 136160
Alt. varenr: APT-P6-WH
✉ Send meg mail når varen er på lager
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

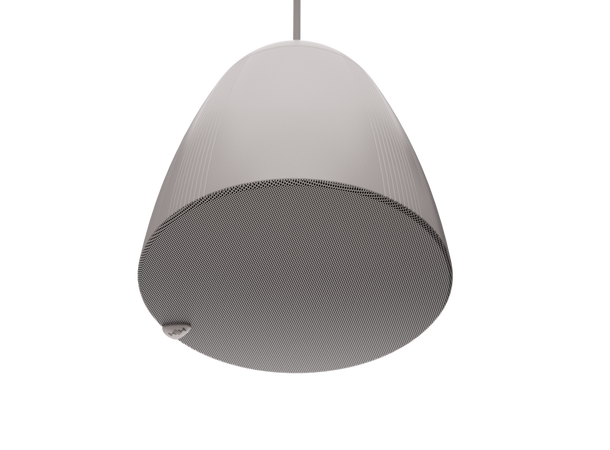

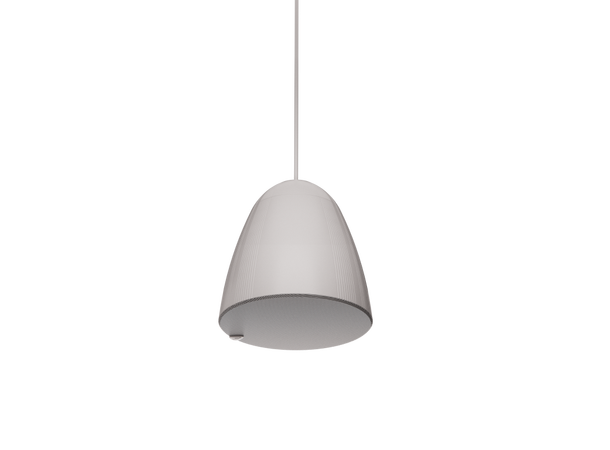

HH Aptur Pendant Speaker APT-P6, White

Exceptional Sound, Elegant Design


APT-P6 Pendant Speaker: Superior Audio for Challenging Spaces

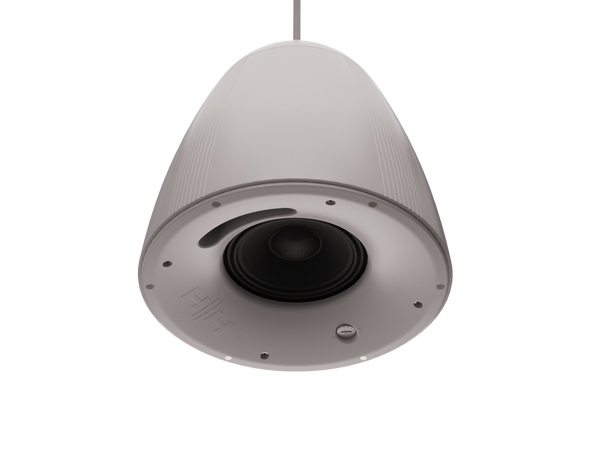

The APT-P6 pendant speaker brings decades of British design and engineering expertise to installation audio. Featuring a Celestion 6.5-inch coaxial driver with a 1.5-inch LF voice coil and 1-inch HF voice coil, the APT-P6 delivers crystal-clear audio. Its custom horn flare profile ensures balanced sound reproduction throughout the coverage area, making it ideal for a wide range of environments.

The APT-P6 offers a sensitivity of 90dB (1W/1M) and a 120W AES power rating, yielding a maximum SPL of 110dB. With a frequency response of 70Hz to 20kHz, the APT-P6 reproduces beautifully balanced audio. For enhanced low-frequency performance, the APT-P6 pairs perfectly with the APT-W8S surface-mount subwoofer.

Available in sleek black or white finishes, the APT-P6’s elegant, tapered profile complements modern spaces and is the perfect solution for architecturally challenging environments, such as those with high ceilings or where traditional ceiling speakers aren’t an option. A rear dust cover protects the connectors while maintaining the speaker’s sophisticated aesthetic.

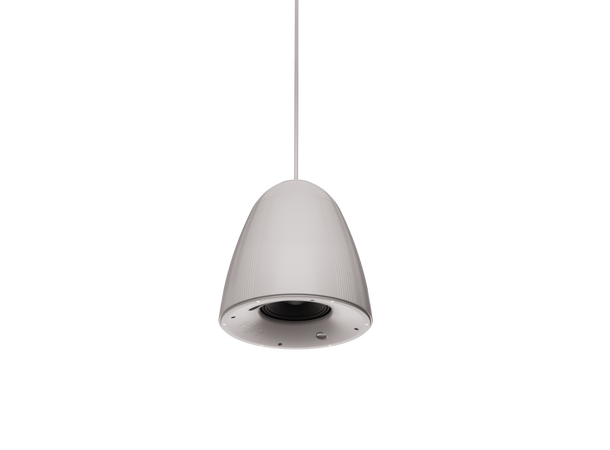

The APT-P6 is equipped with a built-in multi-tap transformer, suitable for both Lo-Z and 100V/70V applications, easily adjustable via a rotary switch hidden beneath the magnetic edge-to-edge grille. The rear steel mounting point ensures secure suspension via steel wire or surface mount installation via an optional wall-mount bracket.



Key Features:

  • Celestion 6.5-inch coaxial driver for clear, high-quality audio.
  • Custom horn flare designed for optimal sound distribution.
  • Lo-Z & 100V/70V operation via multi-tap transformer, with easy adjustment via rotary switch.
  • Sleek, tapered profile available in black and white for modern spaces.
  • Magnetic edge-to-edge grille with removable HH logo.
  • Optional wall mount bracket to expand versatility.



Applications:

  • Restaurants
  • Bars
  • Corporate facilities
  • Retail spaces
  • Educational institutions



Specifications:

  • System Type: 2-Way Coaxial Pendant Loudspeaker
  • Driver: 6.5-inch Celestion Coaxial Driver (1.5-inch LF VC, 1-inch HF VC)
  • 100V Power Options: 60W, 30W, 15W
  • Nominal Impedance: 8 Ohms
  • Power Rating: 120W AES, 240W Continuous, 480W Peak
  • Recommended Amplifier: MZ-140D, MZ-140Q, MZ-280Q
  • Sensitivity: 90dB (1W/1M)
  • Max SPL: 110dB SPL (1m), 116dB SPL (Peak)
  • Frequency Response: 70Hz - 20kHz
  • Input / Link Connector: 4-pin Euroblock (+/-)
  • Dispersion: 120°



Enclosure:

  • Main Construction Material: ABS
  • Finish: Black/White ABS
  • Grille: Fine Mesh Perforated Steel with Powder-Coated Finish
  • Mounting Bracket: Optional wall-mount bracket
  • Mounting Suspension: Integrated eyelet for suspended mounting via carabiner



Dimensions:

  • Outer Diameter: 308mm
  • Max Depth: 305mm



Ekstern Info
Teknisk info

Produktinformasjon

Impedanse
  • 100v
  • 8 Ohm
Installasjon
  • Tak hengt
  • 100v
  • Pendel
Størrelse 6.5''
