HH Speaker Tessen TNi-WX3-BK Black
3,5+0,5" 15W@100V 30W@8 Ohm
The TNi-WX3 is a 2-way passive design featuring a 3.5-inch low-frequency driver and a 0.5-inch high-frequency driver that provide a beautifully balanced, natural and dynamic listening experience, with excellent speech intelligibility and exceptional detail for background music applications. With a sensitivity of 83dB (1W/1m) and a power handling of 30W RMS, the TNi-WX3 yields a max SPL of 97dB and is well suited to commercial spaces, hospitality venues, retail locations and outdoor environments.
The TNi-WX3 is designed for flexibility, suitable for Lo-Z systems with a nominal system impedance of 8 Ohms, and an internal line transformer with tappings from 15W down to 2.5W, expanding the potential applications to include large-scale 70V/100V audio systems.

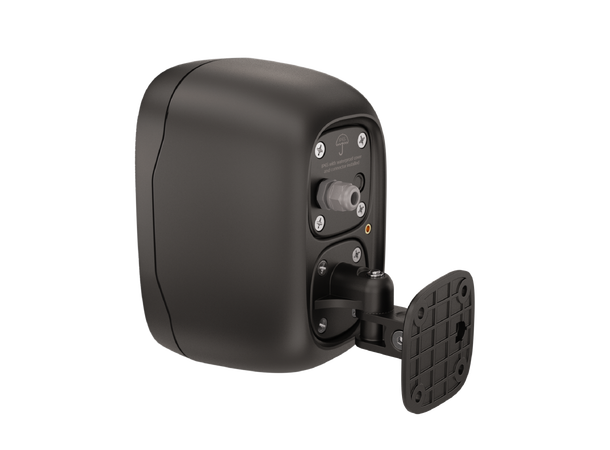

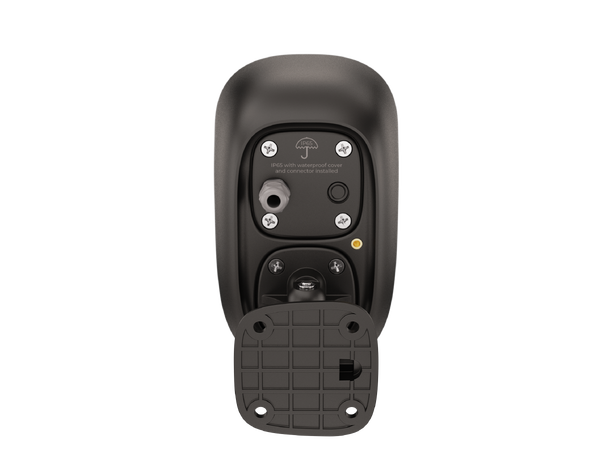

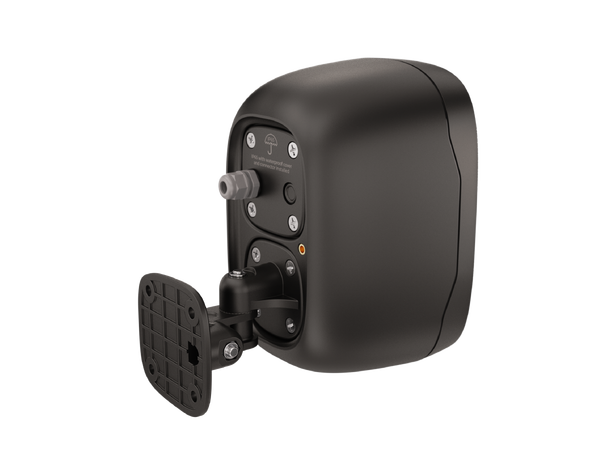

The TNi-WX3 is built for durability when used in both indoor and outdoor applications, featuring a cabinet constructed from UV-resistant ABS, an aluminium grille and a rear cable gland panel. These features combine to achieve an IP rating of IP65, making this an ideal weather-resistant audio solution.
The compact form factor (191 x 120 x 125mm), lightweight design (1.7kg) and included pan & tilt wall bracket all contribute to a fast and simple installation.
| 100V Power Options | 15W, 10W, 7,5W, 5W |
| 70V Power Options | 7,5W, 5W, 3,75W, 2.5W |
| Frequency Response | 90Hz - 20KHz |
| IP Rating | IP65 |
| LF Driver | 3.5-inch |
| HF Driver | 0,5-inch |
| Low Nominal System Impedance | 8 OHM |
| Power | 30W RMS, 120W Peak |
| Max SPL (1M) (Peak) | 103 dB SPL |
| Sensitivity (1W/1M) | 83 DB SPL |
| Recommended Amplifer | 70-140W @
8 Ohms |
| Horiz. Dispersion Angle | 120° |
| Vertical Dispersion Angle | 70° |
| Input Connector | EUROBLOCK/PHOENIX |
| Link Connector | EUROBLOCK/PHOENIX |
| Mounting Bracket | Pan/Tilt wall bracket included |
| Unit Dimensions (Hwd) | 191 X 120 X
125MM |
| Unit Weight | 1.7KG |
| Main Construction Material | ABS PLASTIC |
| Grille | Black,
Aluminium |
| Finish | Black |
