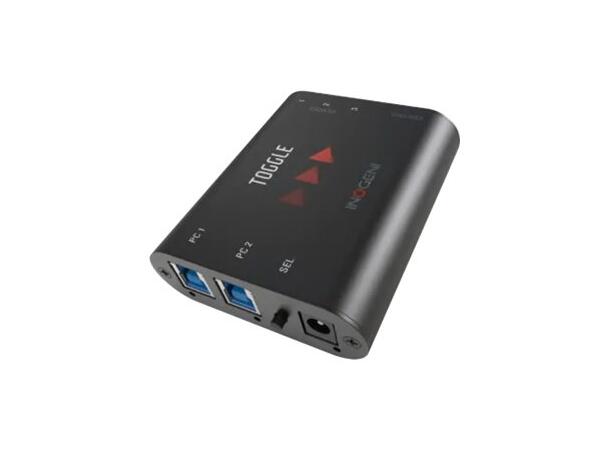

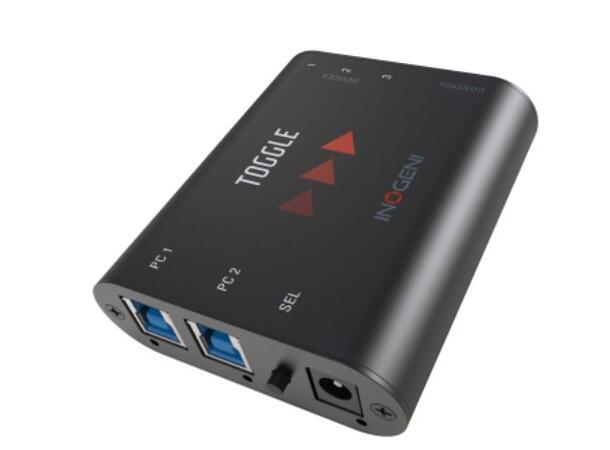

Inogeni TOGGLE – USB 3.0 SWITCHER

BYOD

Varenr: 123462
Alt. varenr: TOGGLE
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

Problem : How do you share your USB 3.0 devices between two hosts, such as a room CODEC and BYOD laptop ?



Solution: INOGENI TOGGLE USB 3.0 Switcher





TOGGLE USB Switcher connect to three USB 3.0 devices and can switch them between two hosts. It will switch automatically to a laptop when it is connected, and revert back to the room pc when disconnected. It can also be controlled remotely by RS-232 or GPI.

  • Your perfect partner for your BYOD or BYOM setup
  • Three USB 3.0 device ports
  • Switch between two USB 3.0 hosts
  • Can automatically switch to the new host
  • Compatible to USB 2.0
  • Automatic, manual or remote control
  • RS-232 control
  • GPI control
  • Rugged full-metal enclosure
  • External power supply can provide power to the USB 3.0 devices
  • Two USB 3.0 cables are included
  • TAA compliant
  • Designed and Made in CANADA





Physical details

Dimensions (W x L x H)70 x 83 x 23 mm
Power supply12V
Power consumptionUp to 1.2A
Weight113 g
Package content2 x USB 3.0 Type-B to Type-A cables.
1 x terminal block connection.
1 x 12V power supply.
Operating temperature0° to 45° C (32° to 113° F)
Storage temperature-40° to 105° C (-40° to 221° F)
OriginCanada
Warranty2 years

Compatibility

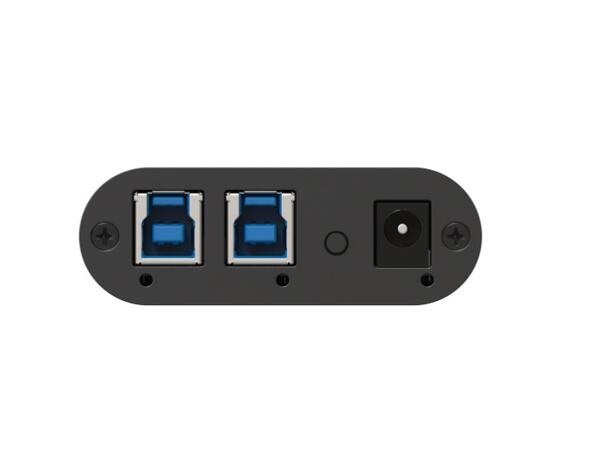

USB host ports2 x Type-B USB 3.0/2.0 compatible.

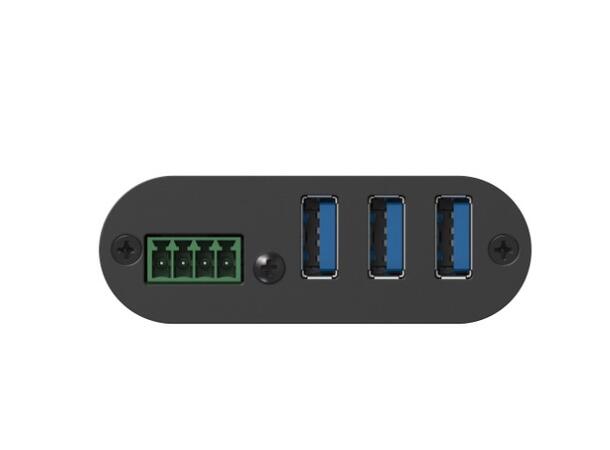

USB device ports3 x Type-A USB 3.0/2.0 compatible.
Serial interfaceBaud rate: 9600
For control purpose. See Serial communication protocol section for more details.
Push-buttonPhysical switch to select host.
GPINContact-closure control.
Controlled by open-drain IO (short to ground) or driven IO.
Supported voltage range: 0V to +12V max.
Device current limit1.8A shared current limit for all 3 x USB device ports.
You can monitor current consumption through RS232 and our Control App.

Software

Operating systemsCompatible with any operating system
Windows 7 and above
macOS 10.0 and above
Linux
UpgradeField upgradable through our INOGENI Control App.
ControlAutomatic, manual or remote control. Current configuration is saved onboard.
Ekstern Info
Teknisk info

Produktinformasjon

Produsent Inogeni
