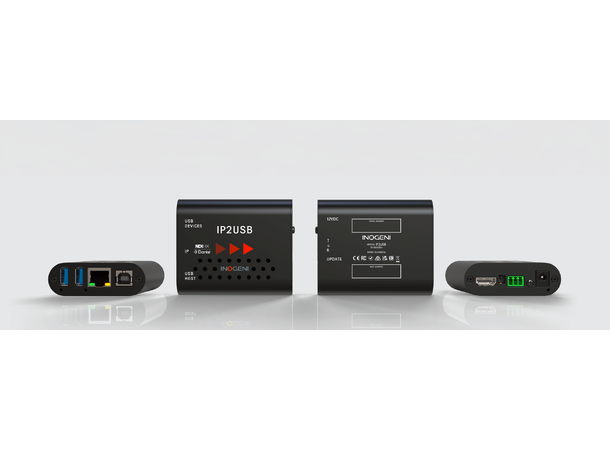

Inogeni IP2USB IP-to-USB converter

Inogeni IP2USB IP-to-USB converter

Varenr: 138016
Alt. varenr: IP2USB
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

IP2USB – IP-to-USB converter for professional AV setups with AVoIP support

Next-level AV integration with IP-to-USB conversion
The INOGENI IP2USB is a specialized converter that allows users to connect sophisticated IP-based cameras to USB peripherals, eliminating the need for costly USB extenders. This solution is ideal for scenarios involving cameras with IP output. It enables a direct connection to the device without requiring an Ethernet switch, providing a simplified, cost-effective solution for integrating cameras and audio devices.

The IP2USB supports multiple AVoIP standards, including NDI/NDI HX/RTSP and Dante audio, enabling seamless transmission of video and audio across networks while ensuring low latency and high quality. This enables users to eliminate DSP systems, reducing costs while maintaining high-performance audio and video integration.

High-performance IP connectivity and USB interface

  • Convert IP to USB and HDMI multiple AVoIP standards, including NDI, NDI HX and RTSP
  • USB Host: 1x USB 2.0 Type-B for USB host PC connection
  • UVC 1080p30 MJPEG video output
  • UAC audio I/O support: Facilitates bi-directional audio via USB
  • Dante audio integration with easy routing via Dante Controller - Learn more

Connectivity and USB interface

  • USB devices: 2x USB3.0/USB2.0 Type-A for connection to peripherals, such as DSP, HID devices (keyboard, mouse, touch screen)
  • HDMI: HDMI 1.4 output up to 2160p30 with audio
  • Audio integration: Support for USB audio such as speakerphone/DSP to USB or HDMI sink

Seamless integration and flexible control

  • Device can be controlled via IP, RS-232, or USB interfaces
  • Camera control: Visca, PTZ, preset commands
  • LED indicators for power and RJ45 connection status
  • Power: +12V power input from an external source

Versatile and reliable performance

  • Supports NDI® HQ (1080p30 in I-frame, low latency), NDI® HX/HX2/HX3 (1080p60 in H.264/H.265), RTSP standards
  • Seamless switching between multiple AVoIP sources with low latency
  • Audio processing: Supports HDMI and USB-based audio routing

Reliable and efficient

  • Direct connection using IP-based communication, reducing the need for expensive DSP systems
  • Flexible solution for both video and audio integration, with the ability to route audio to HDMI and USB.
  • Supports a wide range of peripherals and devices for a complete pro-AV solution
  • Backed by a 5-year warranty
  • Made in Canada and TAA-compliant

>

Discover to the details of our new 5-year warranty

We elevate the standard for superior reliability and quality

>

Compatible by design with all major UC systems

Including Teams, Zoom, Google Meet, Webex, and more

>

Compatible cameras

View list

>

Enhanced BYOD/BYOM capabilities for Microsoft Teams Rooms meetings with MAXHUB and INOGENI

Learn more

How it works

The INOGENI IP2USB allows you to easily connect IP-based cameras to a laptop or UC system via USB, eliminating the need for costly USB extenders. The device converts AVoIP signals, such as NDI/NDI HX and RTSP, into USB and HDMI outputs, simplifying integration with USB peripherals and video conferencing equipment. By leveraging IP-based communication, the IP2USB provides high-quality, low-latency video and audio streaming to laptops or CODEC systems, ensuring seamless connectivity in professional AV setups.



For environments with multiple cameras, the IP2USB can aggregate the signals from each camera, routing them over a single Ethernet connection to your laptop or codec system. This allows users to connect sophisticated cameras directly to their USB-enabled video conferencing hardware or software, without the need for additional infrastructure. The device also supports PTZ controls making it an ideal choice for dynamic, multi-camera setups.

In addition to video, the IP2USB offers full audio integration, with support for both UAC audio I/O over USB and HDMI audio output. This allows users to easily route audio from USB peripherals to HDMI sinks or USB-connected systems. With its flexible IP, USB, and RS-232 control options, the IP2USB is a versatile solution that simplifies pro-AV setups while providing reliable, professional-grade performance.

Dante audio integration with IP2USB

The IP2USB supports Dante audio, offering seamless, bidirectional audio over IP. This integration allows easy routing and flexible audio handling for professional AV systems.

  • Dual configuration options:
    • 2×2 Audio interface
    • 1×1 Speakerphone mode
  •  Flexible Dante routing:
    • Signals can be routed via the Dante Controller, which is familiar to integrators who use Dante for networked audio.
    • Transmit 2x In and 2x OutDante audio channels to the USB interface in sync with video signals.

More about Dante capabilities:

With Dante, the IP2USB integrates audio over a single network, eliminating the need for traditional DSP (Digital Signal Processing). This makes the setup simpler, faster, and improves efficiency, as the Dante Controller handles all routing. This setup is ideal for users already familiar with Dante in their AV workflows, offering both flexibility and reliability in networked audio integration.













Main features

Description

The IP2USB device can connect to an IP camera and convert it to USB.

Video input

Connector

1x RJ45

Supported standards

NDI HQ/HX/HX2/HX3 (H.264/H.265)
RTSP

Video resolutions

Up to 1920x1080p60

Audio

Supported USB devices

DSP & speakerphones

Supported Dante devices

DSP, microphones and speakers
Audio Channels: 2 in, 2 out
Sample rate: 48kHz

USB output

Video scaler

1x USB 2.0 Type-B
UVC interface up to 1080p30 MJPEG
UAC interface with audio I/O
PTZ control supported

Color space conversion

Automatic hardware-based

Sampling conversion

Automatic hardware-based

Frame rate conversion

Automatic hardware-based

HDMI output

Connector

1x HDMI

Video resolutions

3840x2160p24/25/30/50/60 fps
1080p50/60 fps
720p50/60 fps

Color space

YUV422 and YUV420 to RGB conversion

Embedded audio

Device will capture embedded audio from IP or external USB device and will output through HDMI.

Chroma subsampling

YUV/RGB
4:4:4, 4:2:2

Control

IP interface

10/100 Mbps
Supports DHCP or static IP addressing

RS-232 interface

3x positions – Terminal block
Baud rate: 9600
Data bits: 8
Stop bits: 1
Parity: None
Flow control: None

Presets

Able to recall camera presets from single and multiple cameras.

Compatibility

Operating systems

NO driver installation necessary!
Windows 10 and above
macOS 10.10 and above
Linux (kernel v2.6.38) and above

Consumed USB tiers

1 tier

Supported cameras

Any NDI HX and RTSP camera source that support up to 1080p60 are supported.

Software compatibility

UVC-compliant
Runs with all software compatible with DirectShow, AVFoundation and V4L2
Compatible with: Teams, Zoom, Webex, Google Meet, etc.

Physical details

Dimensions (W x L x H)

7.0 cm x 8.3 cm x 2.3 cm
2.76” x 3.76” x 0.9”

Power supply

12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

Weight

140 g (0.31 lb)

Package contents

1x IP2USB converter
1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
1x RS-232 terminal block adapter
1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
International adapters included in the box (AUS, EUR, UK and US)

Operating temperature

0° to 45° C
32° to 113° F

Storage temperature

-40° to 105° C
-40° to 221° F

Relative humidity

0% to 90% non-condensing

Information

UPC code

051497480424

Origin

Canada

Warranty

5 years

Certifications

Certifications – Device

FCC, CE, RoHS, IEC62368, SoV, RCM, KC, MSIP, NOM

TAA-compliant

Yes

What's in the box

  • 1x IP2USB converter
  • 1x 1 m (3 ft.) USB 2.0 cable (Type-A to Type-B)
  • 1x RS-232 terminal block adapter
  • 1x power supply 100-240 VAC 50/60Hz to 12V/1.2A DC
    • International adapters included in the box (AUS, EUR, UK and US)
