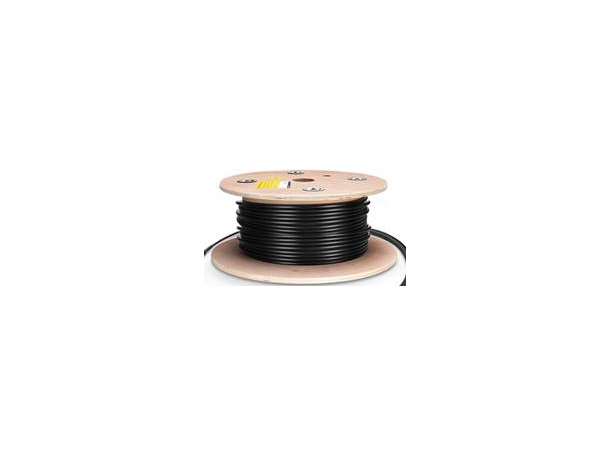

LinkIT fiber OM4 48 Core LC-LC 5m
48x fanout | 50/125 | LSZH
This is an OM4 Multimode 50/125 fiber optic cable designed for high-performance data transmission in both indoor and outdoor environments. The cable is pre-terminated with 48-core fanout on both ends and equipped with 48x LC-UPC connectors, providing reliable connectivity. The fanout is with a 0.9 mm diameter, and the cable is built with a tight-buffered G657A2 fiber. It features excellent durability with a tensile strength of N1200 (short-term) and N500 (long-term), and a maximum bend radius of 30D (dynamic) and 15D (static).
- Stagd distance 4cm
- Multimode
Specifications
| Fiber Type |
OM4 Multimode 50/125 |
| Number of Cores |
48 core fanout (both ends) |
| Color |
Black |
| Connector (Side A) |
48x LC-UPC |
| Connector (Side B) |
48x LC-UPC |
| Fanout Diameter |
0.9 mm |
| Insertion Loss |
> 0.25 dB |
| Return Loss |
> 35 dB |
| Max Tensile Strength
(Short/Long) |
N1200 / N500 |
| Max Bend Radius
(Dynamic/Static) |
30D / 15D |
| Temperature Range |
-20°C to +70°C |
| Buffer Type |
Tight buffered (G657A2) |
| Outer Diameter |
4.8 mm |
| Weight |
67 g/m |
| CPR Classification |
Eca |
| Halogen-free |
Yes (LSZH) |
| Application |
Indoor/outdoor |
