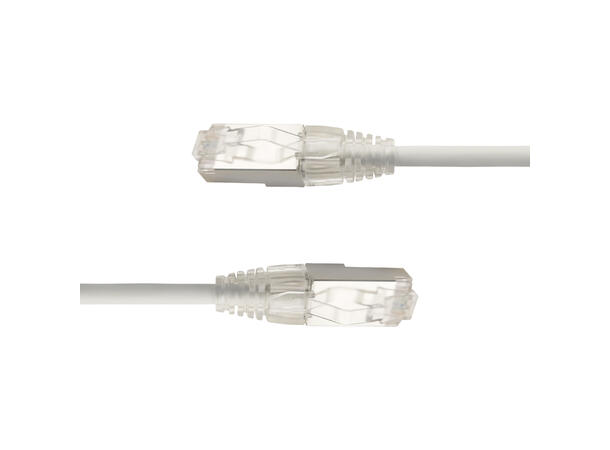

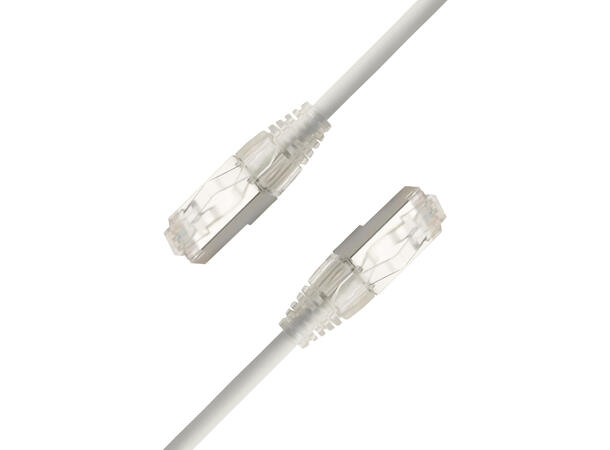

LinkIT SlimPatch U/FTP Cat.6a White 4m
LSZH | AWG 28 | Snagless | OD 4.8mm
Slim network cable for demanding installations, modern construction that can handle 10Gbps and PoE++
- 50µin gold plated
- Very flexible
- Low cable diameter
- Tanglefree lock
- High-quality clear plug
Technical documentation
LinkIt Patch Cat.6a cables stand out with their impressive 50-micron gold plating, providing exceptional corrosion protection and optimal signal transmission. Another important feature is support for the PoE++ (Power over Ethernet++) standard, enabling robust power delivery over network cables. This makes the device ideal for power-hungry applications such as cameras, access points, and other devices that require extra power.
The modular plug is equipped with a tangle-free lock that prevents annoying cable tangles and ensures a seamless connection experience. The cable comes with a high-quality clear plug, providing extra strength and protection to the cable ends and ensuring durability and reliability, even in demanding environments.
The cable’s performance meets the requirements for Cat.6a (ANSI/TIA-568-C.2 and ISO 11801).
Main Specifications
| Brand |
LinkIT
|
| Color |
White
|
| Length (m) |
4
|
| Category |
Cat.6a Slim
|
| Connector type 1 |
RJ-45 male (8P8C)
|
| Connector type 2 |
RJ-45 male (8P8C)
|
| Conductor material |
Copper
|
| Cable shielding |
U/FTP – unshielded/foiled twisted pairs
|
| Conductor design |
Stranded
|
Extended Specifications
| AWG wire size |
28
|
| Transmission speed |
10Gbps
|
| Frequency (Mhz) |
500
|
| Cable structure |
4 x 2 AWG 28/1 (Solid)
|
| Locking type |
Snagless
|
| NVP value |
69%
|
| Jacket material |
LSZH
|
| Anti-kink sleeve |
Assembled
|
| Pin Assignment |
1-2;3-6;4-5;7-8
|
| Operating Temperature |
-20º ~ 60ºC
|
| Cable Diameter (mm) |
4.8
|
| Halogenfree |
Yes
|
| Fire retardant version |
Yes
|
| Core color 1 |
White, Orange
|
| Core color 2 |
Green, White
|
| Core color 3 |
Blue, White
|
| Core Color 4 |
Brown, White
|
| Connector contact plating |
50u gold plated
|
| Certifications |
CE, REACH, RoHS
|
