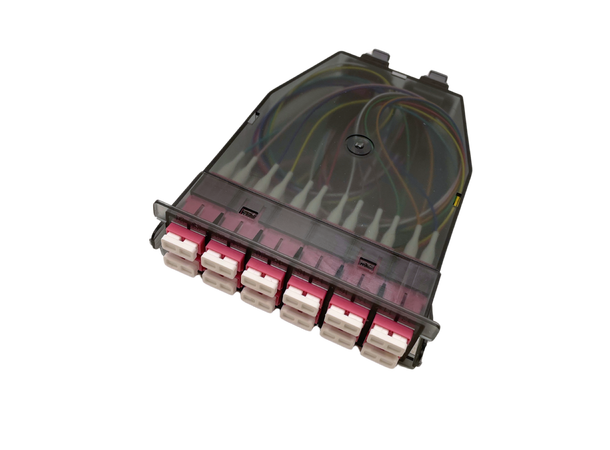

LinkIT OM4 Cassette – 24 Fiber, 2×MTP Male to 12×LC Duplex
The LinkIT OM4 UPC fiber cassette is pre-terminated and equipped with 2× MTP Male (USConec) connectors at the rear and 12× LC Duplex adapters at the front (24 fibers total). Built in compact black plastic, it features UPC polishing with low insertion loss (<0.35 dB) and high return loss. The use of genuine USConec MTP connectors ensures high performance, precise alignment, and reliable operation in multimode installations.
Main Specifications
| Brand | LinkIT |
|---|
| Measurements (WxHxD) | 98.6 × 146 × 27 mm |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Material | Plastic |
|---|
| Number of fibers | 24 |
|---|
| Fibreclass | OM4 |
|---|
| Number of outputs | 24 |
|---|
| Type of inputs | LC Duplex |
|---|
| Polarity | Type U Universal Polarity |
|---|
Extended Specifications
| Input | 2× MTP Male |
|---|
| Front Connector | 12× LC Duplex |
|---|
| Insertion Loss Front Connector | <0.15 dB |
|---|
| Return Loss Front Connector | >55 dB |
|---|
| Rear Connector | 2× MTP Male (USCONEC) |
|---|
| Insertion Loss Rear Connector | <0.35 dB |
|---|
| Return Loss Rear Connector | >55 dB |
|---|
| Front Adapter | 12× LC Duplex Adapters |
|---|
| Rear Adapter | MTP Male |
|---|
| Certifications | REACH, RoHS |
|---|
