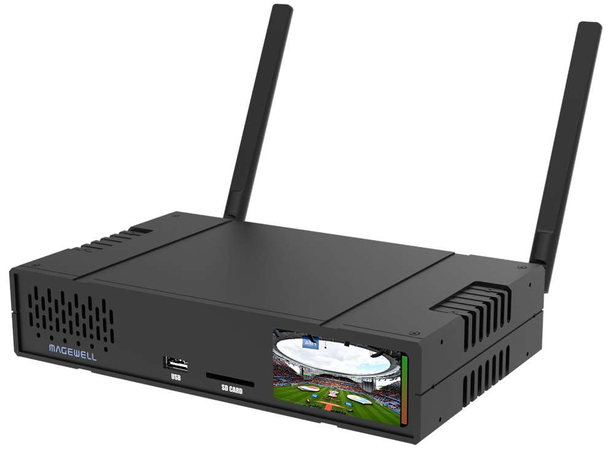

Magewell Ultra Encode AIO
The Magewell Ultra Encode AIO is an Advanced single-channel encoder for Streaming and Recording. This encoder is able to encode and stream one live HDMI 4K 30fps input or Full HD 3G-SDI 60fps input. The picture-in-picture and other overlay options allow users to merge both HDMI and SDI inputs for a combined output.
This powerful encoder offers sumltaneous multi-protocol streaming up to eight channels at a bitrate of 32Mbps per stream. Users can choose from a wide variety of formats such as, H.264, H.265 (HEVC), NDI®|HX 2, and NDI®|HX 3. Delivery protocols include RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU’s ISSP technology.
SKU: 531300000
- Mixes video from the HDMI and SDI inputs (picture-in-picture or side-by-side) into a combined output.
- Allow simultaneous 6 sessions over multiple streaming protocols at 32Mbps per session.
- Variable bitrate control (VBR) - set different bit rates to different streams
- High-efficiency, low-bandwidth NDI®|HX 3 supported.
- Supports streaming and recording schedule.
- Rack-mountable form factor.

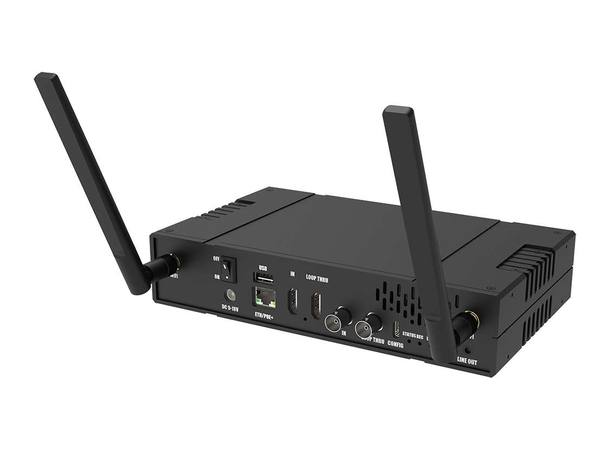

Input/Output Interfaces
- SD/HD/3G BNC input and loop-through interfaces
- HDMI input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT
- USB Type-C (config)
- SD card slot
- 2 x USB Type-A
LCD Display & LED Indicators
1.9 inch LCD display with 320x170 resolution enabling real-time system status monitoring
LEDs indicators show the status of power, input signal, recording and streaming
