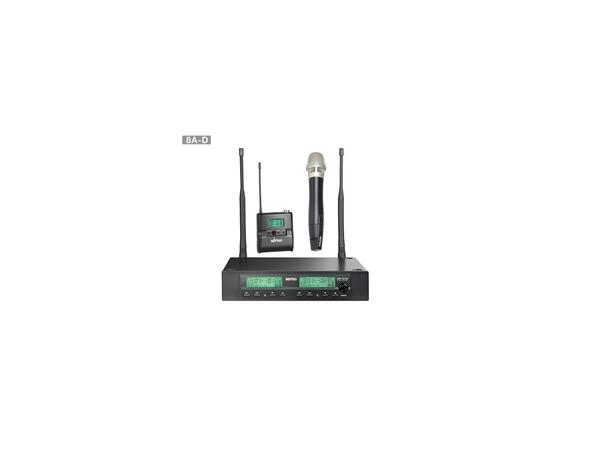

Mipro ACT-312(II)/ACT-32HC/32TC 8A-D 822~832MHz
Produktpakke bestående av ACT-312 to kanals mottager og 1 x ACT-32HC oppladbar håndmikrofon med sender + 1 x ACT-32TC oppladbar lommesender.  Litium batterier er inkludert.  NB. Lader bestilles separat.   Hodebøyle/jakkeslag mikrofon bestilles separat.

ACT-3 er en serie med prisgunstig trådløse mikrofonsystemer. Systemene er mye benyttet i klasserom, auditoria, idrettsanlegg, park, kirker/sal med mer. Velegnet opp til 16-20 samtidige kanaler (2-3 bånd). ACT-3 er et rimelig kvalitets mikrofonsystem, enkel i bruk og med solid trådløs overføring.

ACT-312 1/2U Dual-Channel Receiver
Features
? EIA standard metal chassis equipped with a green backlit LCD
screen and electronic buttons on the front panel. The LCD screen will
automatically turn bright when receiving a signal to identify “Working”
and “Standby” mode.
? The most reliable 24 MHz narrowband high dynamic range receiving
circuit greatly decreases intermodulation distortion and increases
interference-free compatible channels.
? Industry’s first "PiloTone & NoiseLock" circuits and the RF
interference warning indicator for proper adjustments of the SQ level
to avoid interference.
? MIPRO Auto Scan and ACT™ function provides the transmitter’s
frequency with precise and rapid sync to the receiver.
? There are 7 preset groups with a total of 80 pre-saved frequencies.
The user-defined group allows users to choose 8 working channels
from 961 available frequencies.
? Each channel has separate audio output with 3 switchable levels and
presets the output level equals the sensitivity of the microphone
capsule at 0 dB. All is to ensure the microphone operates within
proper sensitivity and dynamic range, free from distortion.
? Designed and made in Taiwan ensures high quality and value.

Specifications
Chassis EIA-Standard 19" 1/2U metal chassis
Frequency Range UHF 480 ~ 934 MHz (country dependent)
Bandwidth 24 MHz
Receiving Mode Diversity receiving
Sensitivity 10 dBµV @ S/N > 80 dB
Frequency Response 50 Hz ~ 18 kHz
Dynamic Range > 106 dBA
Audio Output Balanced: +16dB / 0dB/ -6dB; Unbalanced: +10dB / 0dB/ -6dB
Antenna Detachable. 50O TNC female connector provides bias for the antenna systems.
Power Supply External 100~240V AC switching power supply
Dimensions 210 × 44 × 165 mm (W×H×D)
Weight Approx. 0.9 kg
Note Refer to the actual product in the event of product discrepancy.
