Multibrackets IR ekstender 8 enheter


Varenr: 115247
Alt. varenr: 7350022733237
BeskrivelseEkstern InfoTeknisk info

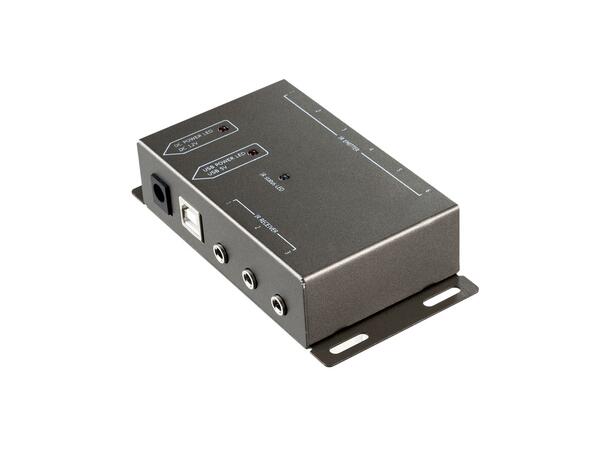

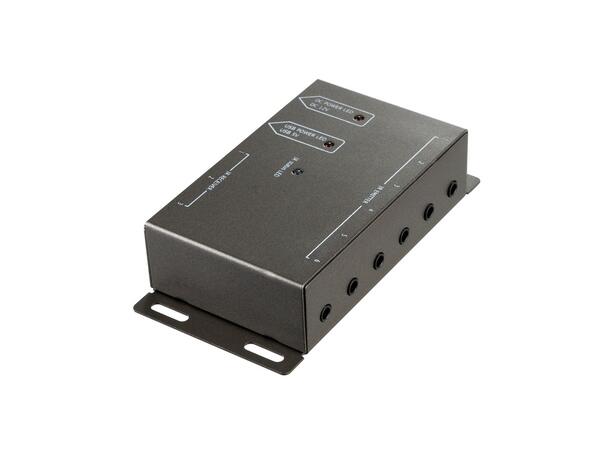

Multibrackets M Universal IR Extender
With the M Universal IR Extender from Multibrackets you dont need to leave cabinet doors open when you are enjoying your home electronics. Keep your A/V units hidden behind the cabinet doors or little fingers. With an easy set up distributing your IR signal into each cabinet space you will be able to control all devices (maximum 8 individual devices) and individually control all devices up to 11 meters away (approx 37 feet) using all your existing remote controls or universal remotes like Logitech Harmony and Philips Pronto.

Easy installation

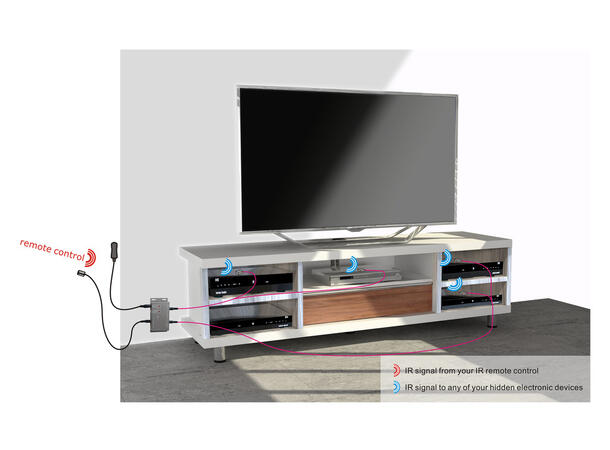

The M Universal IR Extender sets up in just a few minutes and requires no drilling or rewiring. Place the M Universal IR repeater unit in your cabinet, affix one of the eight included infrared emitters to each A/V devices IR Windows and mount the receiver in a location where it can receive your IR remote controls transmitted signals. Your M Universal IR Extender is now ready to transmit your command to the correct home theater component.

Fits perfect for TVs, DVD players, Digital TV boxes, CD players, Amplifiers and much much more.

Must have
This is a must have item for anyone who want great looks in their livingroom!
Use M Universal IR Extender together with M TV Table series. Simply hide your home electronics in the spacey cabinets of the TV Table and install M Universal IR Extender to control the appliance while it is well hidden.

M Universal IR Extender is perfect for home cinema systems, presentation rooms and any other environment where audio-video equipment is out of sight or needs to be hidden.
The IR Extender works with almost any audio-video system and the signal is not disturbed by an eg. installed plasma screen nearby.

  • IR signal bandwidth with the M Universal IR Extenders 25KHz to 60KHz
  • Easily operate your audio/video devices through a closed multimedia cabinet with your current remote control.
  • Ideal for different A/V applications at home, in presentation, board rooms and in training environments.
  • Not affected by any disturbance of a plasma screen that is set up nearby. Works with almost all A/V equipment.
  • Connect 8 A/V appliances and operate them even when they are out of sight.
  • Make infrared extension invisible by placing the IR Module in, under or behind the multimedia cabinet.

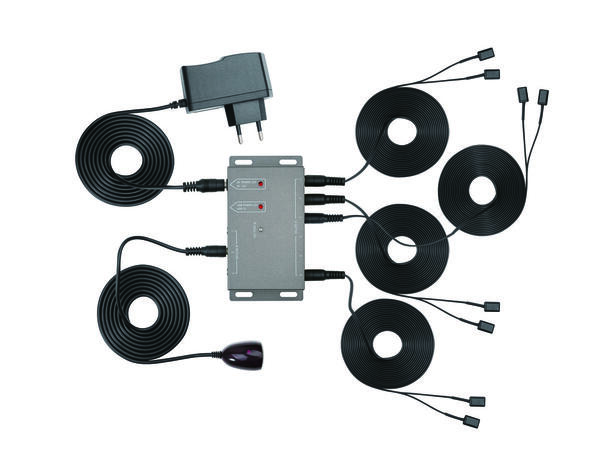

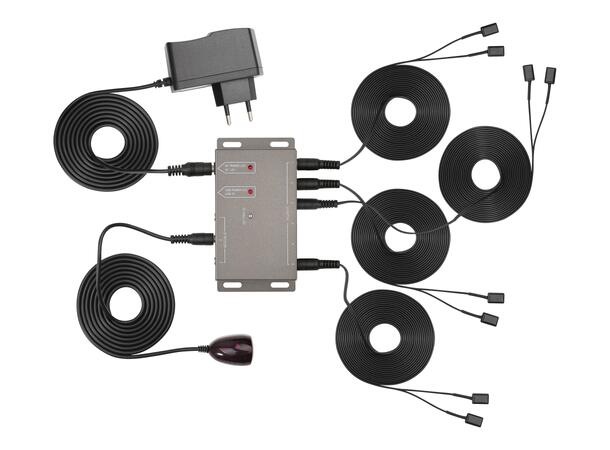

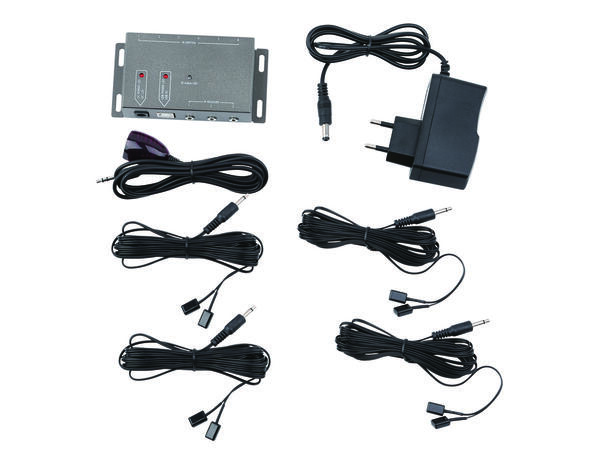

Package content
  • 8 pc IR Transmitters: 2x3 meters
  • 1 pc IR Receiver: 1,5 meters
  • Power plug

Multibrackets IR Extender is proved to work with most IR solutions on the market. But since there are many 100.000s different units on the market Multibrackets cannot test them all. therefore we cannot guarantee the accuracy of any third party unit. If such a guarantee is needed Multibrackets suggest a test of the needed functionality prior to purchase. For that test contact a your sales contact for further information.
M Universal IR Extender
Article No:7 350 022 733 237
Bandwidth range:25KHz to 60KHz
Signal transmission:Infrared (IR)
IR emitters:8 pcs included

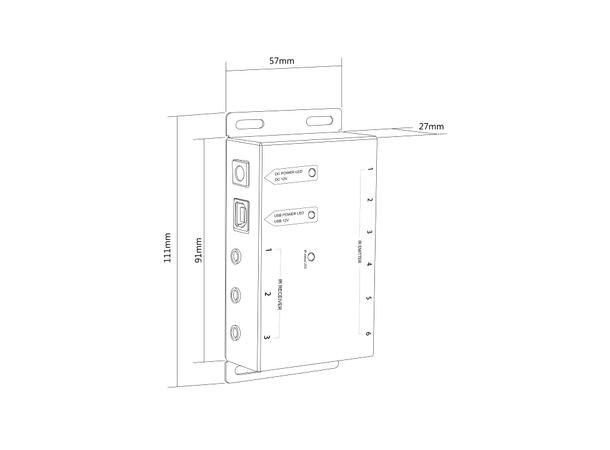

IR extender size (WxDxH):111x57x27mm
IR emitter size (WxDxH):6x6x13 mm
Warranty:1 year
Distribution package:20 pcs
Retail Package Specification
Package Parcels:1 pcs
Package Measurements:11 x 10.8 x 8 cm
Package Weight:0.41 kg
Distribution Package Specification
Retail Package Parcels:20 pcs
Package Measurements:57 x 23 x 17.5 cm
Package Weight:8.50 kg
Ekstern Info
Teknisk info


Produsent Multibrackets
