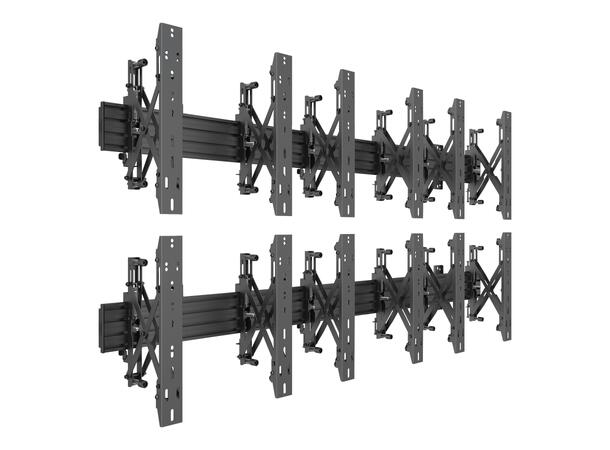

M Wallmount Pro MBW3x2UP Push In Pop Out Portrait – Wall mount for LCD display, steel, 6 screens, single side, adjustable, VESA Max 400x400 – screen size: 32"-55" – portrait – black
Product overview
The M Wallmount Pro MBW3x2UP Push In Pop Out Portrait from Multibrackets® Pro Series is a modular wall mount designed for 6-screen portrait video walls. Ideal for digital signage, this mount ensures fast installation, precise alignment, and tool-free service access via push-in pop-out technology.
Developed for professional A/V environments, the system is based on robust aluminum rails with integrated cable management. It offers flexibility for changing requirements over time – perfect for retail, transportation, or corporate applications where aesthetics and functionality are critical.
Highlights

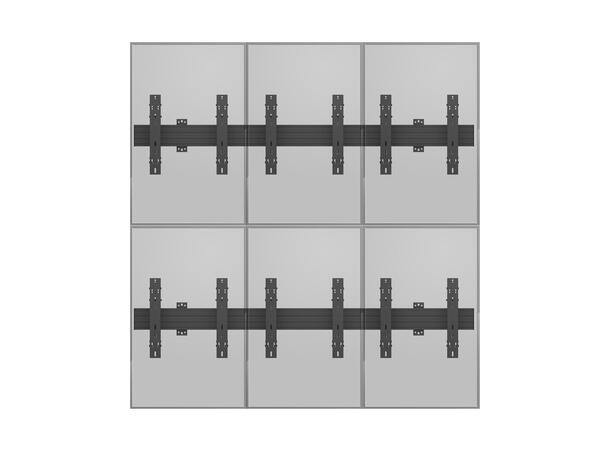

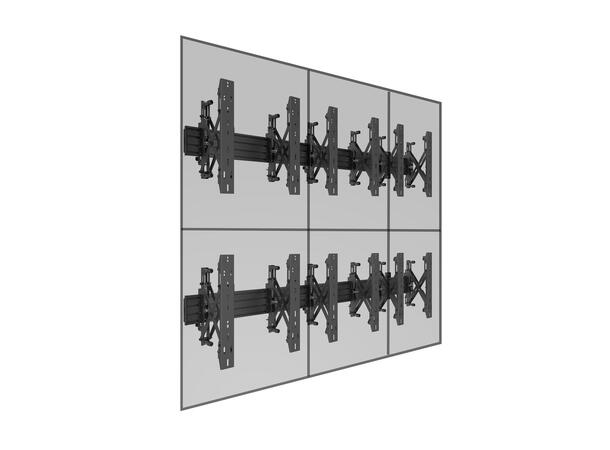

- Optimized for portrait video walls – supports landscape as well

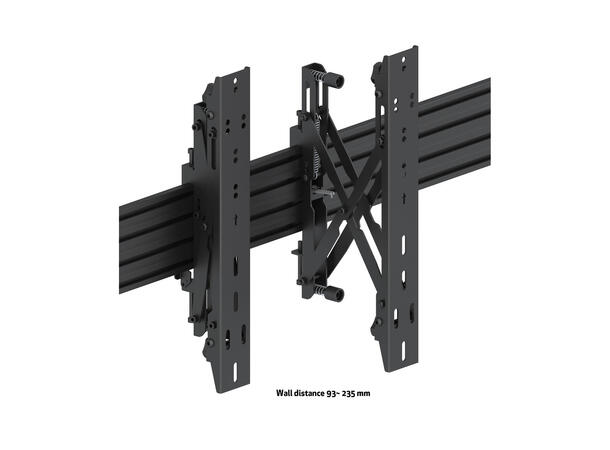

- Push-in pop-out design for easy service and adjustment
- Compatible with VESA up to 400x400
- Modular aluminum rails for custom length without cutting
- Triple wall plates per section for extra stability
- Integrated cable management for a clean, professional finish

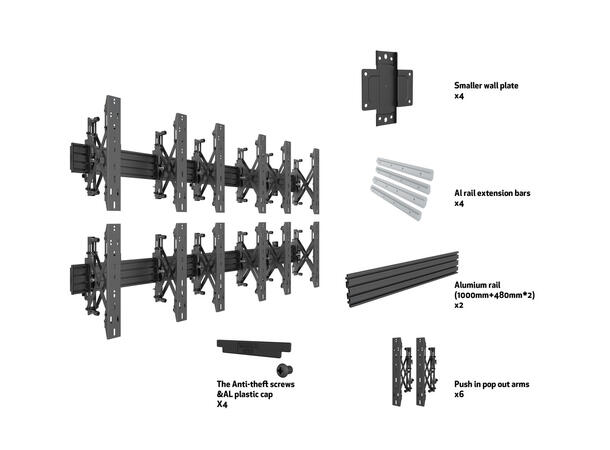

- Includes full hardware kit for fast, secure installation
- Ideal for video walls, menu boards, and commercial signage
 | Multibrackets Pro Series configurations are design protected by Multibrackets via:
EU Community Design Protect 003641406-0002 |
Selected models are TÜV approved.
Pro Series Configuration Guide|
| M Wallmount Pro MBW3x2U Push In Pop Out Black |
| Article No: | 7 350 073 735 044 |
| For screen size: | 32"-55" |
| Type: | Single Side MBW3U |
| Universal & VESA standard: | 100x100,200x100, 200x200,300x300,400x200,400x400 |
| Material: | Steel, Aluminium, Plastic |
| Color: | Black |
| Surface Finish: | Powder coating |
| Weight: | 23 kg |

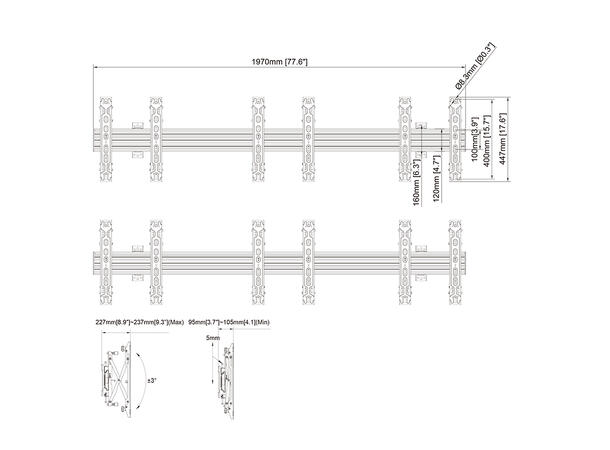

| Measurements | 104 x 27 x35.0 cm per row |
| Max Load: | 50kg (TUV30kg) Per screen |
| Height adjustment: | Yes, 0-10mm |
| Rotate adjustment: | Yes, ±4° |
| Tilt adjustment: | Yes, ±4° |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | CE |
| Warranty: | 5 years |
| Retail Package Specification |
| Package Parcels: | 1 pcs |
| Package Measurements: | 104 x 30.5 x 27 cm |
| Package Weight: | 42.00 kg |
