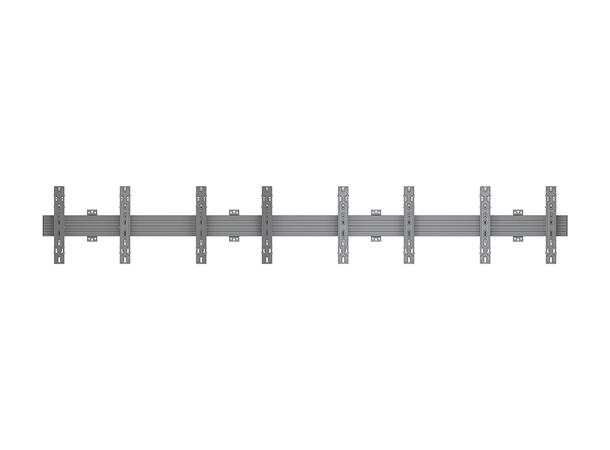

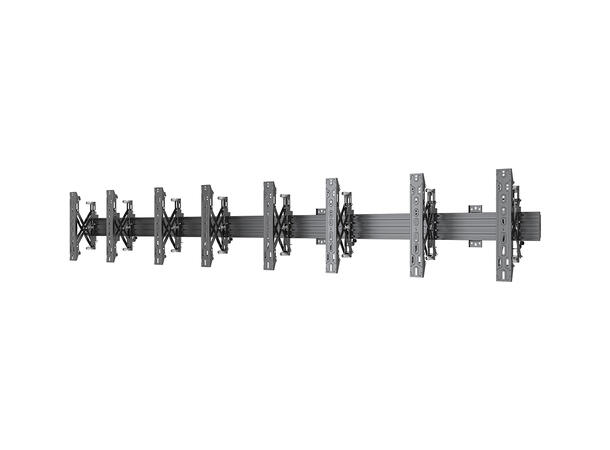

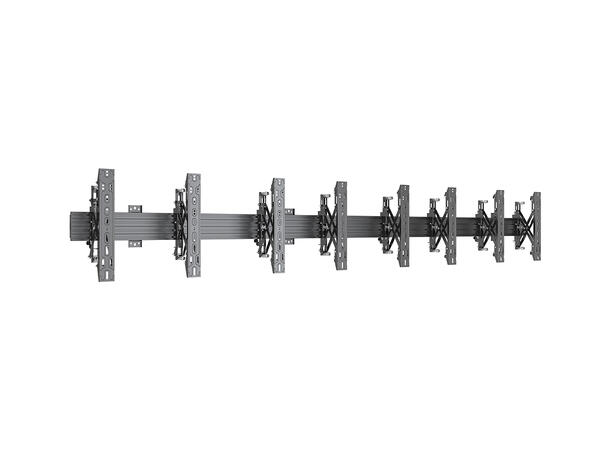

M Wallmount Pro MBW4X1U Push In Pop Out Black – Wall mount for LCD display, steel, 4 screens, single side, adjustable, VESA Max 600x400 – screen size: 37"-65" – black – TÜV
Product Overview

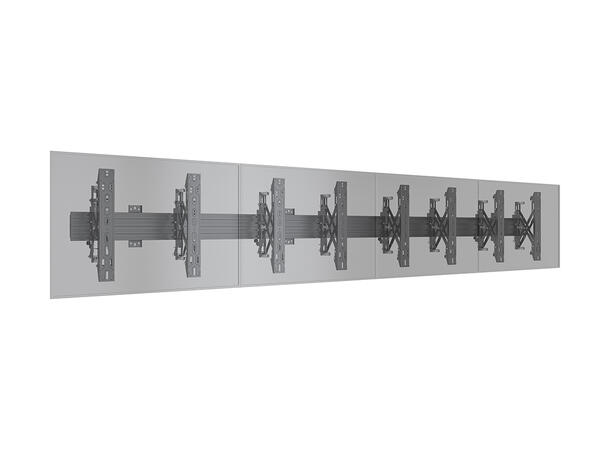

The M Wallmount Pro MBW4X1U Push In Pop Out Black is part of the Multibrackets® Pro Series — a professional-grade wallmount solution designed for 4-screen video walls. It’s engineered for speed, precision, and long-term flexibility, making it ideal for digital signage in retail, transportation hubs, or control rooms.
This model features a push-in pop-out mechanism that simplifies both installation and maintenance. Combined with micro-adjustable brackets and modular aluminum rails, the system ensures perfect screen alignment and long-term adaptability for any A/V environment.
Highlights
- Push-in pop-out mechanism – perfect for video walls and menu boards
- Compatible with VESA up to 600x400 or 400x600 (with optional extenders)
- Modular aluminum rail system – customizable length without cutting

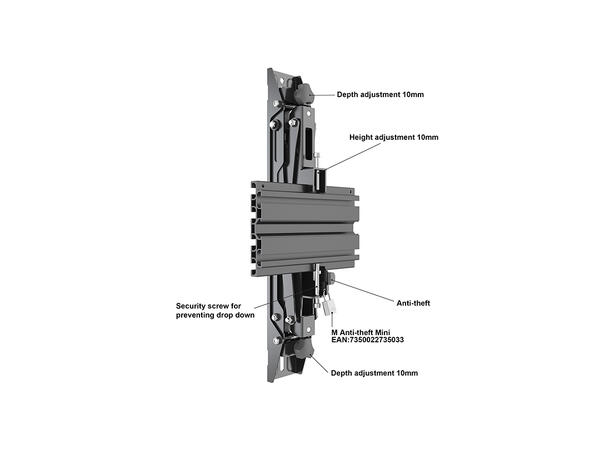

- Tool-less fine adjustments for precise screen alignment
- Integrated cable management for a clean installation
- Dual wallplates included for added support
- Supports both portrait and landscape screen orientations

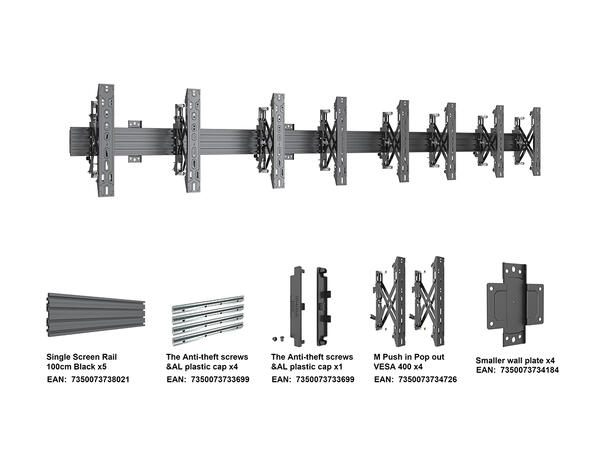

- Complete hardware kit included
Selected models are TÜV approved.
Pro Series Configuration Guide|
| M Wallmount Pro MBW4X1U Push In Pop Out Black |
| Article No: | 7 350 105 213 816 |
| For screen size: | 37”-65" |
| Type: | Single Side MBW4X1U |
| Material: | Steel, Aluminium |
| Color: | Black |
| Surface Finish: | Powder coating/Anodic Oxidation |
| Weight: | 35 kg |
| Measurements | 112.5 x 40 x 16 cm |
| Max Load: | 40 kg per screen |

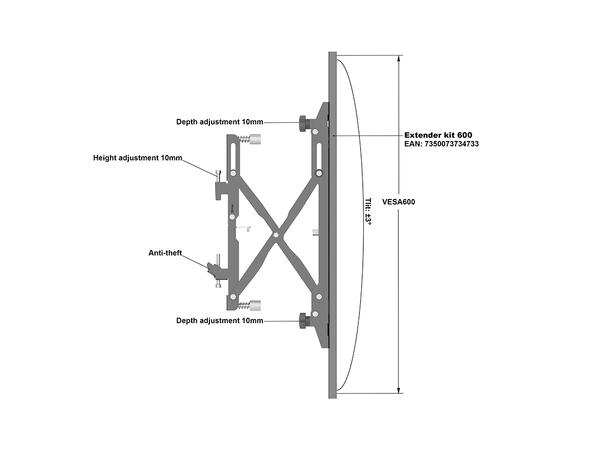

| Tilt adjustment: | Yes, ±3° |
| Cable Management: | Yes |
| Options: | M Pro Series Parts |
| Certifications: | TUV |
| Warranty: | 5 years |
| Retail Package Specification |
| Package Parcels: | 1 pcs |
| Package Measurements: | 112.5 x 40 x 16 cm |
| Package Weight: | 35 kg |
