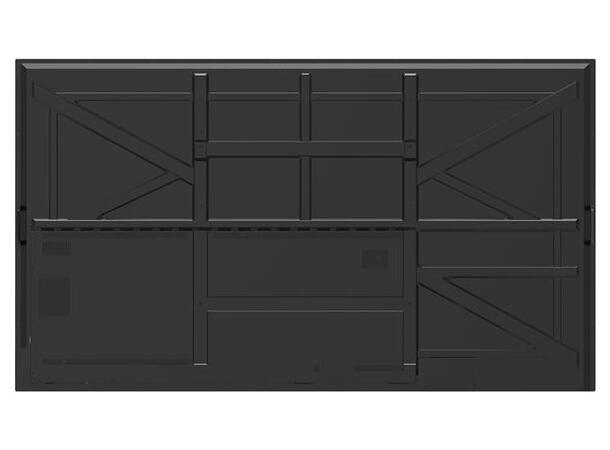

N-Series Professional Displays
The N-Series Professional Displays are designed to enhance the current conferencing setups of corporate and education settings to accommodate hybrid work and distance-learning scenarios. Intuitive friendly software enables users to connect, present and collaborate globally, both in-person and remotely.
Featuring portrait and landscape orientation, the N-Series are built for usage in corporate lobbies and reception areas, conference rooms, lecture halls, digital signage and other professional environments.
Engineered for simplified connectivity and heightened engagement, content can be shared wirelessly with Display Share, along with live content viewing and real time collaboration with Optoma’s interactive flat panel displays via WhiteBoard. With a built-in media player, users can display information, create, and customise their own playlist.
Additionally, users can also upload files wirelessly and access the cloud on popular systems such as Google, Microsoft, and Dropbox through Optoma’s File Manager.
Ideal solution for professional environments
Customise your content and display in portrait or landscape orientation across one or multiple displays
Intuitive friendly software
Built-in apps enable users to connect, present and collaborate globally, both in-person and remotely
Built-in media player and scheduling functionality
Create, customise and schedule media playlists and display content at a specific date or time
Optimised for conferencing solutions
Compatible with a variety of accessories such as web cameras, Bluetooth speakers, and motorised trollies
Display
| Back light | Direct type LED |
| Size (diagonal) | 98" |
| Display Type | ADS |
| Resolution | 3840x2160 |
| Brightness | 500 |
| Contrast ratio | 1,200:1 |
| Contrast ratio (dynamic) | 3,000:1 |
| Viewing angle | 178° |
| Response time | 8ms |
| Life | 50,000 hours |
| Display colours | 1,070 |
| Speaker count | 2 |
| Watts per speaker | 10W |
| Surface hardness | 3H |
| Haze | 25% |
| Air gap | 4.00mm |
| Operating Humidity | 10% - 90% |
| Storage Temperature (celsius) | -20? -60? |
| Storage Humidity | 10% - 90% |
Physical spec
| Dimensions (W x D x H) mm | 2212 x 79.4 x 1268.4 |
| Wall-hanging screw spec | M8*25mm |
| VESA holes | 800*600 |
| In the box | European Standard Power Cord
American Standard Power Cord
British Standard Power Cord
HDMI Cable 3M
Remote Control
Battery
QSG
|
| Connections | | Inputs 3 x HDMI 2.0, 1 x USB-C, 1 x USB 2.0, 1 x USB 3.0, 1 x RS232, 1 x RJ45, 1 x OPS slot | | Outputs 1 x HDMI 2.0, 1 x S/PDIF, 1 x Audio 3.5mm, 1 x RJ45 |
|
| Bezel size (top) | 26.00mm |
| Bezel size (bottom) | 26.00mm |
| Bezel size (left) | 26.00mm |
| Bezel size (right) | 26.00mm |
| Operating conditions | 24/7 |
| Operating temperature (max) | 40°C |
| 24/7 operation | Yes |
| Net weight | 69.4 kg |
| Gross weight | 90.3 kg |
| Wireless - antenna | Optional Accessory |
| Wireless - technology | 802.11ac/b/g/n/a/ax |
| Wireless - operating frequency | 2.4Ghz/5Ghz |
Power
| Power supply | 100-240V~ 50/60Hz |
| Power consumption (standby) | 0.5W |
| Power consumption (max) | 515W |
| Power consumption - average (watts) | 340 |
| Power consumption - Energy Star (watts) | 179 |
Operation System
| System version | Android 11 |
| CPU | Quad A55 |
| GPU | Mali G51 |
| RAM | 4GB |
| Storage | 32GB |
| OSD / display languages | 17 languages: Arabic, Czech, Danish, Dutch, English, French, German, Italian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish |
| Desktop software | Optoma Management Suite (OMS), WhiteBoard, Display Share, File manager, Media player |
