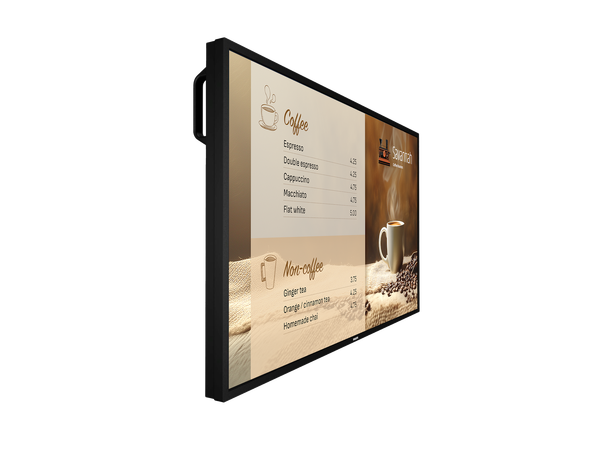

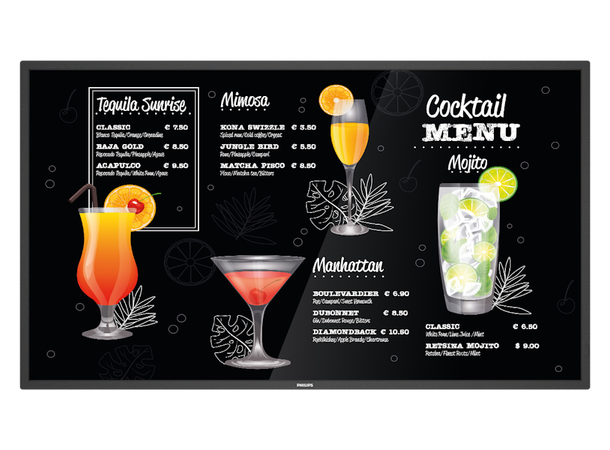

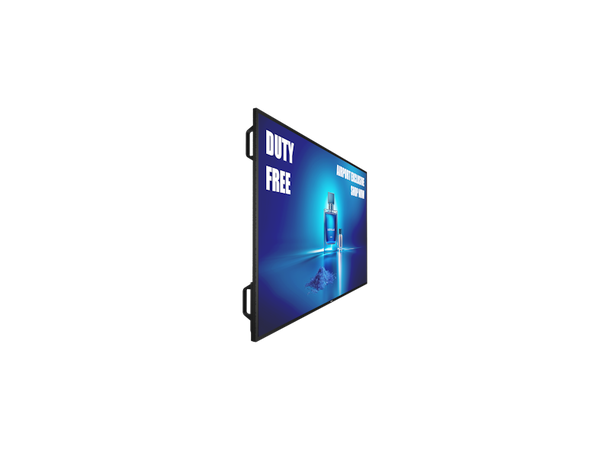

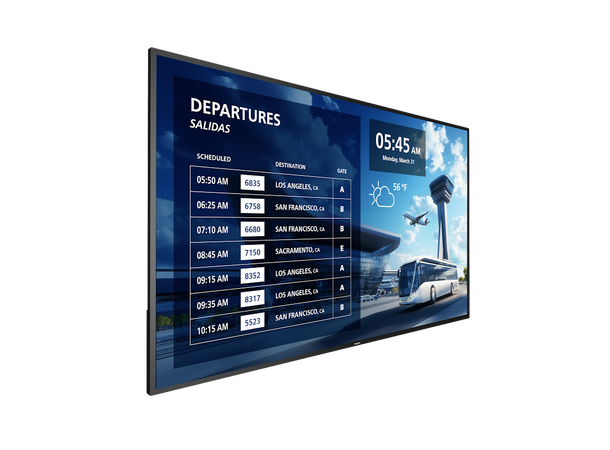

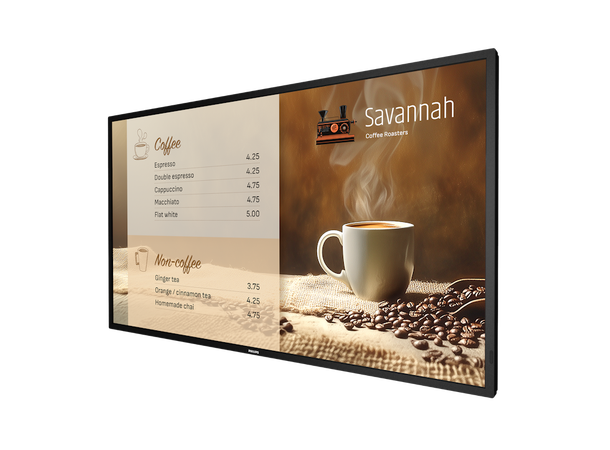

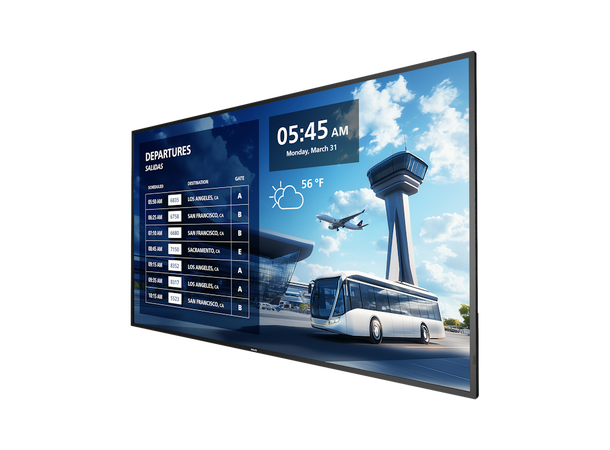

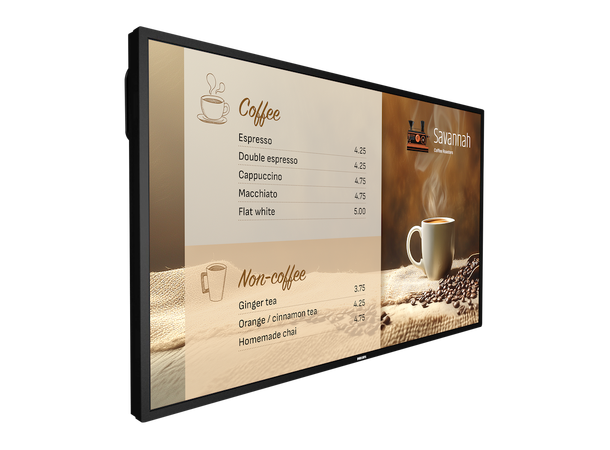

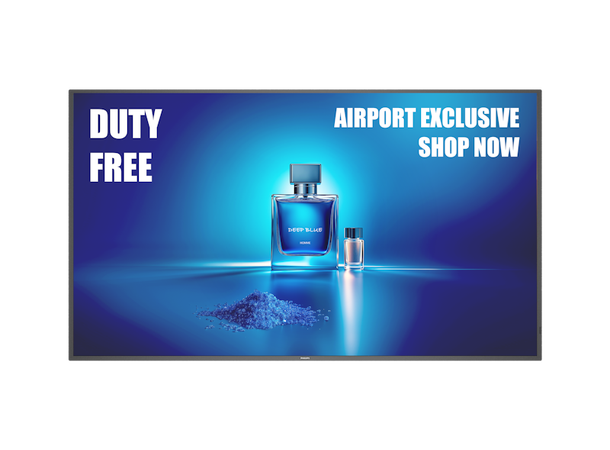

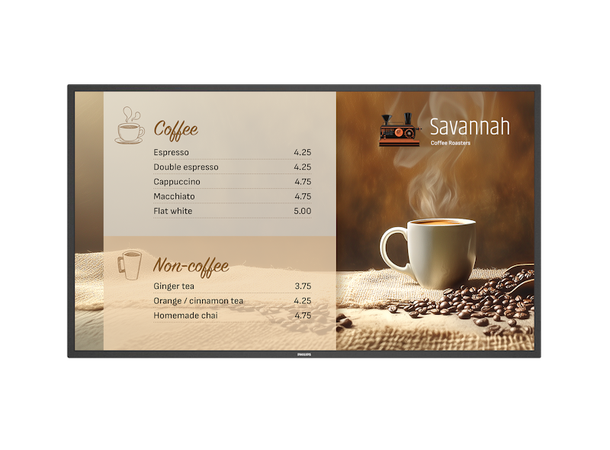

Outperform in challenging environments with the robust 24/7 Philips Signage 6000 Series. With enhanced brightness up to 800 nits and an option to add Philips Wave remote management, ideal for kitchens through to transport hubs and beyond.
Technical Specifications
Connectivity
| Audio input | 3.5 mm jack |
|---|
| External control | IR (in/out) 3.5 mm jack |
|---|
| RJ45 |
|---|
| RS232C (in/out) 2.5 mm jack |
|---|
| Ambient Light Sensor |
|---|
| Video output | DisplayPort 1.2 (x 1) |
|---|
| HDMI 2.0 (x 1) |
|---|
| Video input | Display Port1.2 (x 1) |
|---|
| DVI-I (x 1) |
|---|
| HDMI 2.0 (x 3) |
|---|
| Audio output | 3.5 mm jack |
|---|
| Other connections | USB 2.0 (x 2) |
|---|
| OPS |
|---|
| Thermal sensor |
|---|
Convenience
| Network controllable | RS232 |
|---|
| RJ45 |
|---|
| Tiled Matrix | Up to 15 x 15 |
|---|
| Energy-saving functions | Smart Power |
|---|
| Placement | Landscape (24/7) |
|---|
| Portrait (24/7) |
|---|
| Screen-saving functions | Pixel Shift, Low Bright |
|---|
| Ease of installation | Carrying Handles |
|---|
| Conformal Coating |
|---|
| Edge Alignment Kit |
|---|
| Signal loop through | DisplayPort |
|---|
| RS232 |
|---|
| HDMI |
|---|
| IR Loop through |
|---|
Accessories
| Included Accessories | AC Switch Cover |
|---|
| Philips logo (x 1) |
|---|
| Power cable (x 3) |
|---|
| Quick start guide (x 1) |
|---|
| Remote control and AAA batteries |
|---|
| RS232 cable (3 m) (x 1) |
|---|
| RS232 daisy chain cable (x 1) |
|---|
| USB Cover (x 1) |
|---|
| Edge Alignment Kit (x 2) |
|---|
| Stand | BM05922(optional) |
|---|
Dimensions
| Bezel width | 14.90 mm (Even bezel) |
|---|
| Product weight | 17.45 kg |
|---|
| Set Depth (inch) | 3.02 inch (at handle), 2.52 (at wall mount) inch |
|---|
| Product weight (lb) | 38.47 lb |
|---|
| Set Depth | 76.80 mm (at handle), 64.0 mm (at wall mount) mm |
|---|
| Set Width | 1128.4 mm |
|---|
| Set Width (inch) | 44.43 inch |
|---|
| Wall Mount | 400 x 400 mm, M6 |
|---|
| Set Height | 649 mm |
|---|
| Set Height (inch) | 25.55 inch |
|---|
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Power
| Consumption (Max) | 171 W |
|---|
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
|---|
| Consumption (Typical) | 104 W |
|---|
| Energy Label Class | G |
|---|
| Standby power consumption | <0.5 W |
|---|
Multimedia Applications
| USB Playback Picture | BMP |
|---|
| JPEG |
|---|
| PNG |
|---|
| USB Playback Video | H.264 |
|---|
| H.265 |
|---|
| Motion JPEG |
|---|
| MPEG1/2 |
|---|
| WMV3 |
|---|
| USB Playback Audio | AAC |
|---|
| MPEG |
|---|
| HEAAC |
|---|
Miscellaneous
| Regulatory approvals | CE |
|---|
| FCC, Class A |
|---|
| CB |
|---|
| BSMI |
|---|
| EAC |
|---|
| EMF |
|---|
| VCCI |
|---|
| PSB |
|---|
| ETL |
|---|
| EPA |
|---|
| On-Screen Display Languages | Arabic |
|---|
| Dutch |
|---|
| Danish |
|---|
| English |
|---|
| French |
|---|
| Finnish |
|---|
| German |
|---|
| Italian |
|---|
| Japanese |
|---|
| Norwegian |
|---|
| Polish |
|---|
| Portuguese |
|---|
| Russian |
|---|
| Spanish |
|---|
| Swedish |
|---|
| Simplified Chinese |
|---|
| Turkish |
|---|
| Traditional Chinese |
|---|
| Warranty | 3 year warranty |
|---|
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|
| MTBF | 50,000 hour(s) |
|---|
| Temperature range (operation) | 0 ~ 40 °C |
|---|
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
|---|
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
|---|
| Ingress protection | IP5X |
|---|
| Altitude | 0 ~ 5000 m |
|---|
Picture/Display
| Response time (typical) | 8 ms |
|---|
| Panel technology | VA |
|---|
| Pixel pitch | 0.2854 x 0.2854 mm |
|---|
| Panel resolution | 3840 x 2160 |
|---|
| Viewing angle (horizontal) | 178 degree |
|---|
| Aspect ratio | 16:9 |
|---|
| Dynamic contrast ratio | 500,000:1 |
|---|
| Display colours | 1.07 billion |
|---|
| Optimum resolution | 3840 x 2160 @ 60 Hz |
|---|
| Brightness | 800 cd/m² |
|---|
| Diagonal screen size (metric) | 125.7 cm |
|---|
| Viewing angle (vertical) | 178 degree |
|---|
| Haze | 25% |
|---|
| Contrast ratio (typical) | 4000:1 |
|---|
| Diagonal screen size (inch) | 49.5 inch |
|---|
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz |
|---|
| 720 x 400, 70 Hz |
|---|
| 800 x 600, 56, 60, 72, 75 Hz |
|---|
| 1024 x 768, 60, 70, 75 Hz |
|---|
| 1152 x 864, 75 Hz |
|---|
| 1152 x 870, 75 Hz |
|---|
| 1280 x 720, 60 Hz |
|---|
| 1280 x 800, 60 Hz |
|---|
| 1280 x 1024, 60 Hz |
|---|
| 1440 x 900, 60 Hz |
|---|
| 1600 x 1200, 60 Hz |
|---|
| 1680 x 1050, 60 Hz |
|---|
| 1920 x 1080, 60 Hz |
|---|
| Video formats | 480p, 60 Hz |
|---|
| 576p, 50 Hz |
|---|
| 720p, 50, 60 Hz |
|---|
| 1080i, 50, 60 Hz |
|---|
| 1080p, 50, 60 Hz |
|---|
| 3840 x 2160, 30Hz |
|---|
| 3840 x 2160, 60 Hz |
|---|
