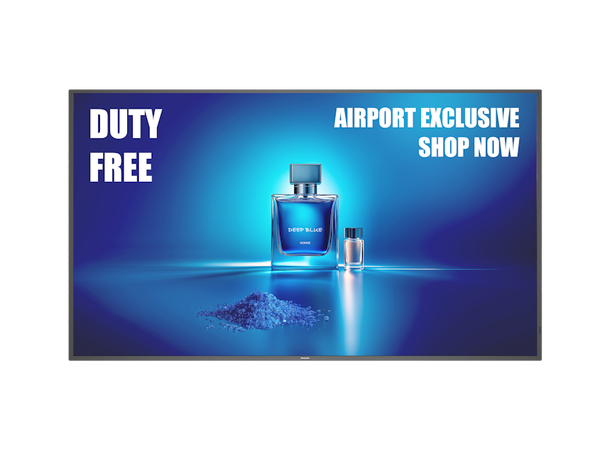

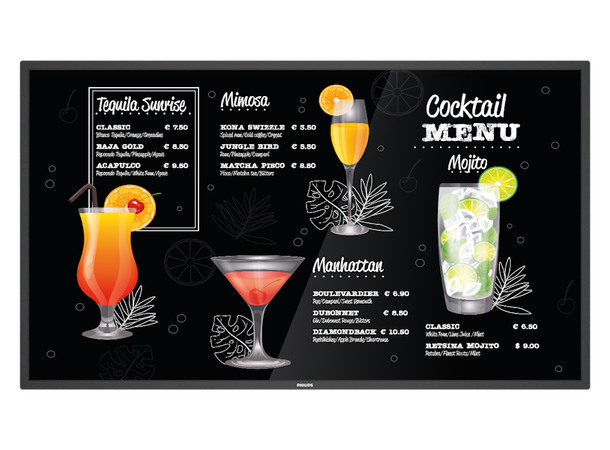

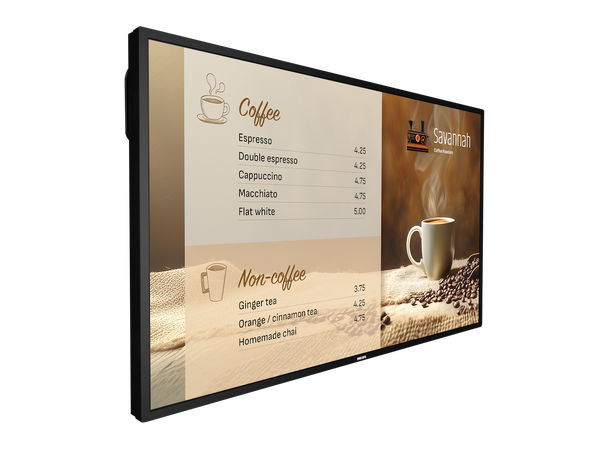

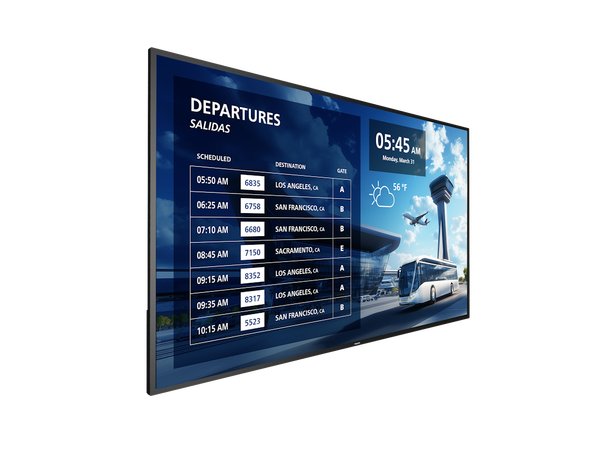

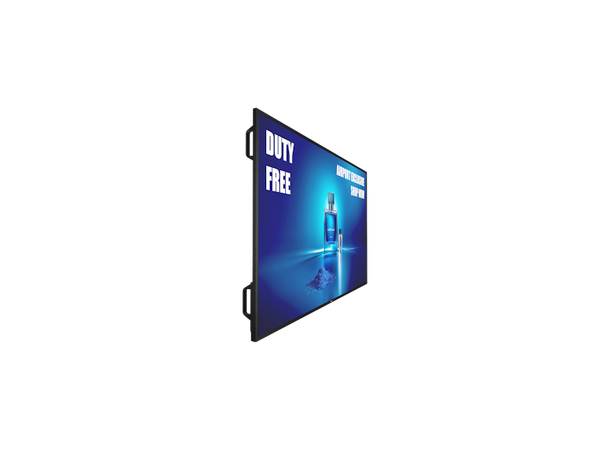

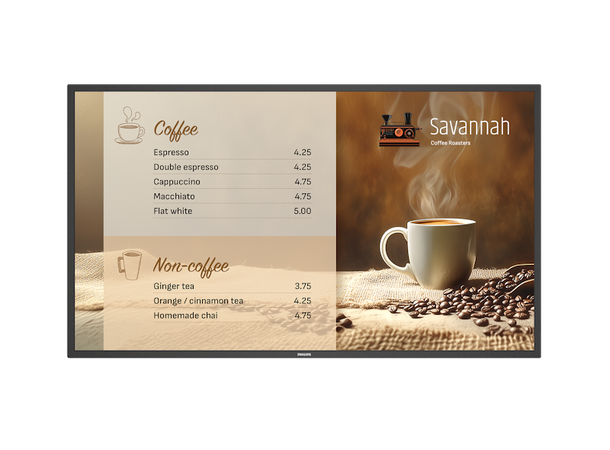

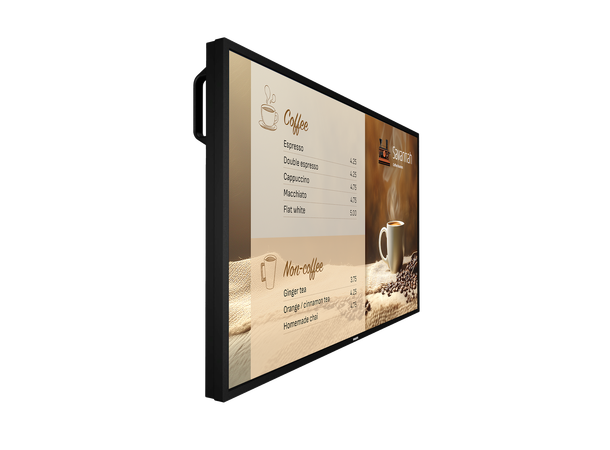

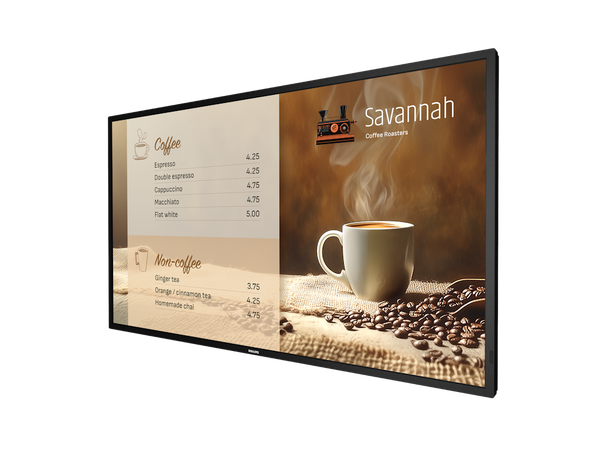

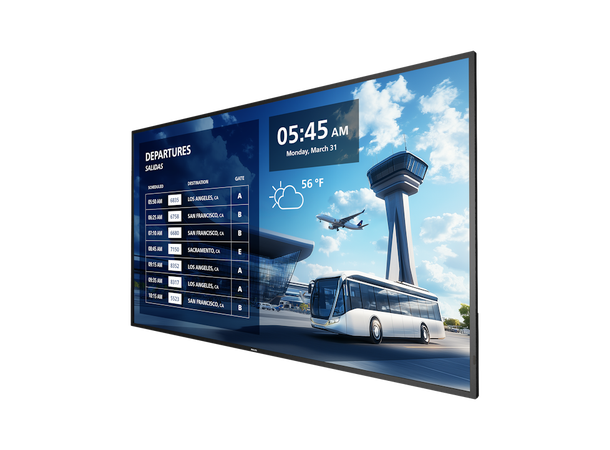

Outperform in challenging environments with the robust 24/7 Philips Signage 6000 Series. With enhanced brightness up to 800 nits and an option to add Philips Wave remote management, ideal for kitchens through to transport hubs and beyond.
Technical Specifications
Connectivity
| External control | IR (in/out) 3.5 mm jack |
|---|
| RJ45 |
|---|
| RS232C (in/out) 2.5 mm jack |
|---|
| Ambient Light Sensor |
|---|
| Audio input | 3.5 mm jack |
|---|
| Video output | DisplayPort 1.2 (x 1) |
|---|
| HDMI 2.0 (x 1) |
|---|
| Video input | Display Port1.2 (x 1) |
|---|
| DVI-I (x 1) |
|---|
| HDMI 2.0 (x 3) |
|---|
| Other connections | USB 2.0 (x 2) |
|---|
| OPS |
|---|
| Thermal sensor |
|---|
| Audio output | 3.5 mm jack |
|---|
Convenience
| Network controllable | RS232 |
|---|
| RJ45 |
|---|
| Tiled Matrix | Up to 15 x 15 |
|---|
| Energy-saving functions | Smart Power |
|---|
| Screen-saving functions | Pixel Shift, Low Bright |
|---|
| Placement | Landscape (24/7) |
|---|
| Portrait (24/7) |
|---|
| Signal loop through | DisplayPort |
|---|
| RS232 |
|---|
| HDMI |
|---|
| IR Loop through |
|---|
| Ease of installation | Carrying Handles |
|---|
| Conformal Coating |
|---|
| Edge Alignment Kit |
|---|
Accessories
| Stand | BM05922(optional) |
|---|
| Included Accessories | AC Switch Cover |
|---|
| Philips logo (x 1) |
|---|
| Power cable (x 3) |
|---|
| Quick start guide (x 1) |
|---|
| Remote control and AAA batteries |
|---|
| RS232 cable (3 m) (x 1) |
|---|
| RS232 daisy chain cable (x 1) |
|---|
| USB Cover (x 1) |
|---|
| Edge Alignment Kit (x 2) |
|---|
Dimensions
| Product weight | 20.50 kg |
|---|
| Product weight (lb) | 45.149 lb |
|---|
| Set Depth (inch) | 3.02 inch (at handle), 2.52 (at wall mount) inch |
|---|
| Bezel width | 13.9 mm (Even bezel) |
|---|
| Set Depth | 76.80 mm (at handle), 64.0 mm (at wall mount) mm |
|---|
| Set Width | 1241.80 mm |
|---|
| Set Width (inch) | 48.89 inch |
|---|
| Set Height (inch) | 28.06 inch |
|---|
| Set Height | 712.60 mm |
|---|
| Wall Mount | 400 x 400 mm, M6 |
|---|
Sound
| Built-in speakers | 2 x 10 W RMS |
|---|
Power
| Consumption (Max) | 204 W |
|---|
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
|---|
| Consumption (Typical) | 142 W |
|---|
| Energy Label Class | G |
|---|
| Standby power consumption | <0.5 W |
|---|
Multimedia Applications
| USB Playback Video | H.264 |
|---|
| H.265 |
|---|
| Motion JPEG |
|---|
| MPEG1/2 |
|---|
| WMV3 |
|---|
| USB Playback Picture | BMP |
|---|
| JPEG |
|---|
| PNG |
|---|
| USB Playback Audio | AAC |
|---|
| MPEG |
|---|
| HEAAC |
|---|
Miscellaneous
| Regulatory approvals | CE |
|---|
| FCC, Class A |
|---|
| CB |
|---|
| BSMI |
|---|
| EAC |
|---|
| EMF |
|---|
| VCCI |
|---|
| PSB |
|---|
| Energy Star 8.0 |
|---|
| ETL |
|---|
| EPA |
|---|
| Warranty | 3 year warranty |
|---|
| On-Screen Display Languages | Arabic |
|---|
| Dutch |
|---|
| Danish |
|---|
| English |
|---|
| French |
|---|
| Finnish |
|---|
| German |
|---|
| Italian |
|---|
| Japanese |
|---|
| Norwegian |
|---|
| Polish |
|---|
| Portuguese |
|---|
| Russian |
|---|
| Spanish |
|---|
| Swedish |
|---|
| Simplified Chinese |
|---|
| Turkish |
|---|
| Traditional Chinese |
|---|
Operating conditions
| Temperature range (storage) | -20 ~ 60 °C |
|---|
| MTBF | 50,000 hour(s) |
|---|
| Temperature range (operation) | 0 ~ 40 °C |
|---|
| Humidity range (operation)[RH] | 20~80% RH (No condensation) |
|---|
| Humidity range (storage) [RH] | 5~95% RH (No condensation) |
|---|
| Altitude | 0 ~ 5000 m |
|---|
| Ingress protection | IP5X |
|---|
Picture/Display
| Panel technology | VA |
|---|
| Response time (typical) | 8 ms |
|---|
| Panel resolution | 3840 x 2160 |
|---|
| Pixel pitch | 0.315 x 0.315 mm |
|---|
| Dynamic contrast ratio | 500,000:1 |
|---|
| Viewing angle (horizontal) | 178 degree |
|---|
| Aspect ratio | 16:9 |
|---|
| Display colours | 1.07 billion |
|---|
| Optimum resolution | 3840 x 2160 @ 60 Hz |
|---|
| Haze | 25% |
|---|
| Diagonal screen size (inch) | 54.6 inch |
|---|
| Viewing angle (vertical) | 178 degree |
|---|
| Contrast ratio (typical) | 5000:1 |
|---|
| Diagonal screen size (metric) | 138.7 cm |
|---|
| Brightness | 800 cd/m² |
|---|
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 72, 75 Hz |
|---|
| 720 x 400, 70 Hz |
|---|
| 800 x 600, 56, 60, 72, 75 Hz |
|---|
| 1024 x 768, 60, 70, 75 Hz |
|---|
| 1152 x 864, 75 Hz |
|---|
| 1152 x 870, 75 Hz |
|---|
| 1280 x 720, 60 Hz |
|---|
| 1280 x 800, 60 Hz |
|---|
| 1280 x 1024, 60 Hz |
|---|
| 1440 x 900, 60 Hz |
|---|
| 1600 x 1200, 60 Hz |
|---|
| 1680 x 1050, 60 Hz |
|---|
| 1920 x 1080, 60 Hz |
|---|
| Video formats | 480p, 60 Hz |
|---|
| 576p, 50 Hz |
|---|
| 720p, 50, 60 Hz |
|---|
| 1080i, 50, 60 Hz |
|---|
| 1080p, 50, 60 Hz |
|---|
| 3840 x 2160, 30Hz |
|---|
| 3840 x 2160, 60 Hz |
|---|
