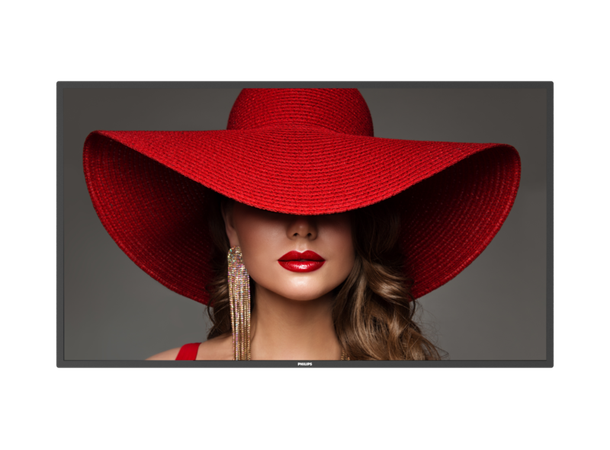

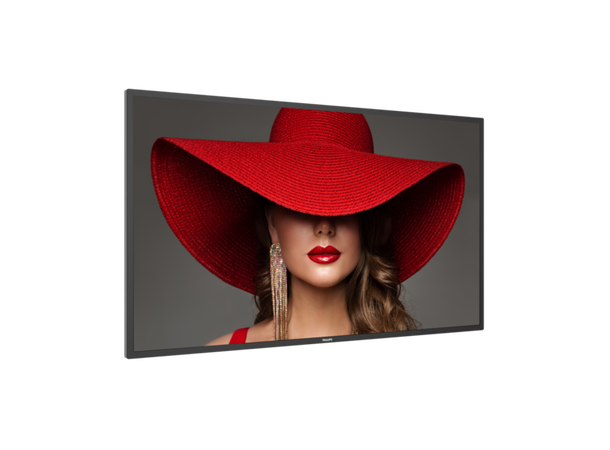

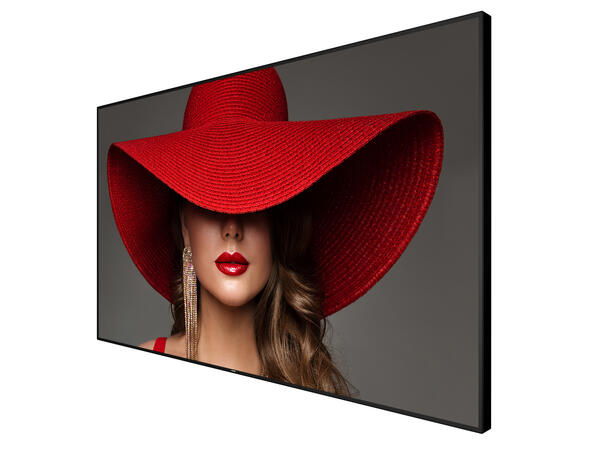

Philips D-Line 98” UHD, 24/7 500 Nits , Failover , No Android Philips D-Line 98” UHD, 24/7 500 Nits , Failover , No Android Philips D-Line 98” UHD, 24/7 500 Nits , Failover , No Android

Philips D-Line 98” UHD, 24/7

500 Nits , Failover , No Android

Varenr: 137914
Alt. varenr: 98BDL45110D/00
BeskrivelseEkstern InfoTeknisk info
Beskrivelse


UTEN Android

Smart, fast 24/7 display.

  • 98"
  • UHD (3840 x 2160)
  • 500cd/m²
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

SmartPower for energy saving

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Schedule what you want, when you want with SmartPlayer

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    247.6  cm
    Diagonal screen size (inch)
    97.5  inch
    Aspect ratio
    16:9
    Panel resolution
    3840 x 2160
    Brightness
    500  cd/m²
    Display colors
    1.07 Billion
    Contrast ratio (typical)
    1300:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Panel technology
    IPS
  • Connectivity

    Audio output
    3.5mm jack
    Video input
    • Display Port1.2 (x1)
    • DVI-I (x 1)
    • USB 2.0 (x2)
    • HDMI 2.0 (x3)
    Audio input
    3.5 mm jack
    Other connections
    OPS
    Video output
    • DisplayPort 1.2 (x1)
    • HDMI 2.0 (x1)
    External control
    • RS232C (in/out) 2.5 mm jack
    • RJ45
    • IR (in/out) 3.5 mm jack
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Screen saving functions
    Pixel Shift, Low Bright
    Keyboard control
    • Hidden
    • Lockable
    Signal loop through
    • RS232
    • DisplayPort
    • HDMI
    • IR Loopthrough
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    355  W
    Consumption (Max)
    605 W
    Standby power consumption
    <0.5 W
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60Hz
    • 800 x 600, 60Hz
    • 1024 x 768, 60Hz
    • 1280 x 1024, 60Hz
    • 1280 x 720, 60Hz
    • 1440 x 900, 60 Hz
    • 1920 x 1080, 60Hz
    • 1600 x 900, 60Hz
    • 1680 x 1050, 60Hz
    • 3840 x 2160, 30, 60Hz
    Video formats
    • 1080i, 50, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 480p, 60Hz
    • 480i, 60Hz
    • 1080p, 50, 60Hz
    • 2160p, 24, 30, 60Hz
    • 720p, 50,60 Hz
  • Dimensions

    Set Width
    2193.2  mm
    Product weight
    90.52  kg
    Set Height
    1248.2  mm
    Set Depth
    87.9(D@wall mount)/97.9(D@handle)  mm
    Set Width (inch)
    86.35  inch
    Set Height (inch)
    49.14  inch
    Wall Mount
    1000(H) x 400(V)
    Set Depth (inch)
    3.46(D@wall mount)/3.85(D@handle)  inch
    Bezel width
    16.0mm/16.0mm/16.0mm/16.0mm(T/R/L/B)
    Product weight (lb)
    199.56  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 - 80% RH (No condensation)
    Humidity range (storage) [RH]
    5 - 95% RH (No condensation)
  • Multimedia Applications

    USB Playback Video
    • MPEG
    • H.264
    • H.263
    • H.265
    USB Playback Picture
    • JPEG
    • BMP
    • PNG
    USB Playback Audio
    • AAC
    • MPEG
    • HEAAC
  • Accessories

    Included Accessories
    • Quick start guide (x1)
    • RS232 daisy-chain cable
    • Philips logo (x1)
    • USB Cover and screw x1
    • AC Switch Cover
    • Wire Clamper (x3)
    • AC power cord
    • IR sensor cable (1.8 m) (x1)
    • Remote control & AAA batteries
    • RS232 cable
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • Danish
    • Dutch
    • English
    • Finnish
    • French
    • German
    • Italian
    • Japanese
    • Norwegian
    • Polish
    • Portuguese
    • Russian
    • Simplified Chinese
    • Spanish
    • Swedish
    • Traditional Chinese
    • Turkish
    Warranty
    5 years warranty
    Regulatory approvals
    • BSMI
    • CB
    • CCC
    • CE
    • CECP
    • EAC
    • EMF
    • ETL
    • FCC, Class A
    • PSB
    • RoHS
    • VCCI

Ekstern Info
Teknisk info

Produktinformasjon

Android Versjon Uten Android
Driftstid 24/7
Haze 28%
Lysstyrke 500 nits
Modell Philips D-line
Oppløsning Ultra HD 4K 3840x2160
Skjermtype Signage
Størrelse 98"
