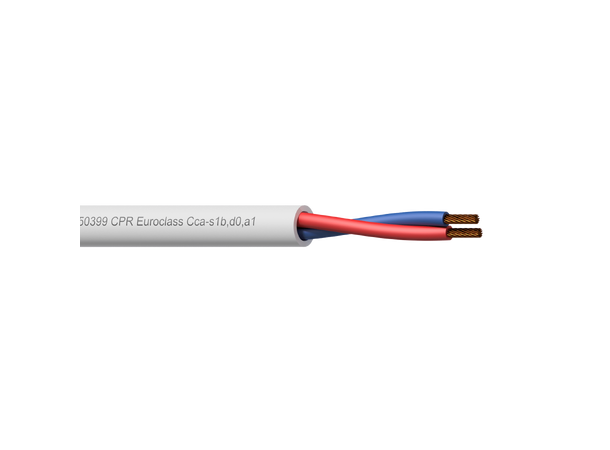

LS215-CCA
Loudspeaker cable - 2 x 1.5 mm² - 16 AWG - EN50399 CPR Euroclass Cca-s1b,d0,a1
AV & IT
Contractor Series
EN50399 CPR Euroclass Cca-s1b,d0,a1
16 AWG (1.5 mm²) thin and dense stranded conductors
Class 5 IEC 60228 compliant

Description
The CLS215-Cca series are 2-core installation loudspeaker cables compliant to the Cca standards of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire. In addition to its improved fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling.

The CLS2xx series consists of three models with individually polyolefin isolated conductors in sections ranging from 1.5 mm² (16 AWG) up to 4 mm² (11 AWG) which are composed of stranded bare copper wires. The stranding keeps the cable flexible and easy to handle. The cable can be used in both indoor and outdoor or in humid environments.

Physical characteristics
Type of cable 2-core loudspeaker cable
EN50399 CPR Euroclass Cca-s1b,d0,a1
Inner conductor Material BC 28 x 0.25 mm (Ø) (OFC)
Section 1.5 mm²
Number of conductors 2
Insulation Material Polyolefin 2.5 mm (Ø)
Filling None
Separator None
Inner conductor American Wire Gauge 16 AWG
Insulation Colours Red / Blue
Conductor twisting Yes
Outer jacket Material Polyolefin 7 mm (Ø)
Colours Black
White
Standards and regulations
RoHS2 compliant According EU Directive 2011/65/EU
Reach compliant According EC 1907/2006
CPR Euroclass Cca-s1b,d0,a1
Flammability test According EN 60332-1-2
Indoor / outdoor UV resistant (UL1581, UVA, 720 h)
Smoke emissions According IEC 61034
Zero halogen compounds According EN 50267-2-1
IEC 60754
Mechanical characteristics
Temperature range Mobile installation - 5 °C till + 80 °C
Fixed installation - 15 °C till + 80 °C
UV resistant Yes
Electrical characteristics
Max. conductor DC resistance 13.3 (O / Km)
Dielectric strength 2 (KV / 1 min. DC)
Rated voltage 500 V
