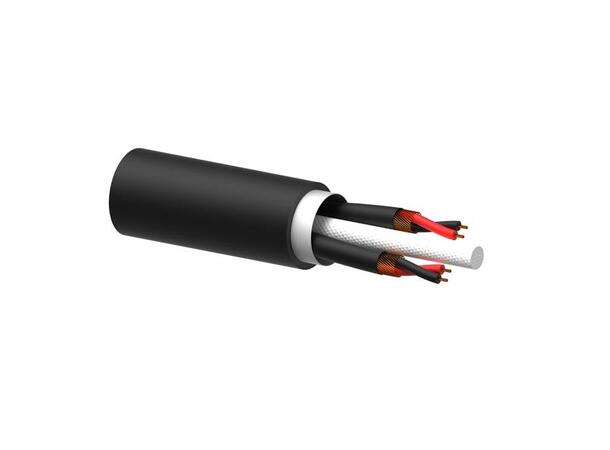

Procab Multikabel MCM102/1 Sort 2 par 0.125 mm 26 AWG 100m Rull Procab Multikabel MCM102/1 Sort 2 par 0.125 mm 26 AWG 100m Rull

Procab Multikabel MCM102/1 Sort

2 par 0.125 mm 26 AWG 100m Rull

Varenr: 53720
Alt. varenr: MCM102/1
BeskrivelseEkstern InfoTeknisk info
Beskrivelse

Description
The MCM audio multipair cable is an extremely flexible and rugged type of cable, suitable for indoor and outdoor applications. Each audio pair consists of two insulated and twisted conductors of 0.125 mm² with a high density shielding to prevent any influence of hum, noise or electromagnetic fields from external equipment. Each balanced audio pair has a paper foil packing and an outer PVC jacket of 3.5 mm. All audio pairs are also fitted with a general paper foil packing and a PVC jacket. The PROCAB MCM multipair cable is suited for all kinds of applications such as stagebox connections, live concerts, …


Physical characteristics
Inner conductor Insulation Material PE 1.5 mm (Ø)
Shielding Spiral BC 32 x 0.12 mm (Ø) (OFC)
Outer jacket Material Flexible PVC 3.5 mm (Ø)
Colours Black
Material Durable PVC 10 mm (Ø)
Colours Black
Type of cable 26 AWG Stereo signal cable
Inner conductor Material BC 7 x 0.15 mm (Ø) (OFC)
Section 0.125 mm²
Number of conductors 2 (2 pairs)
2 x 2
Conductor twisting Yes
Mechanical characteristics

Mechanical characteristics
Temperature range Fixed installation - 40 °C till + 80 °C
Mobile installation - 25 °C till + 70 °C
Bending radius Fixed installation 8 x outer diameter
Mobile installation 10 x outer diameter
Electrical characteristics
Capacitance Cond/Cond 25 pF / m @ 1 kHz
Cond/Shield 74 pF / m @ 1 kHz
Lead resistance 13.75 ? / 100 m
Cable Crosstalk Min. 73.3 dB / 100 m
