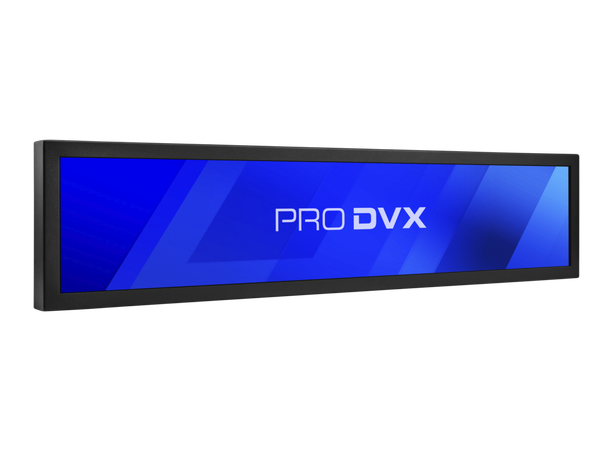

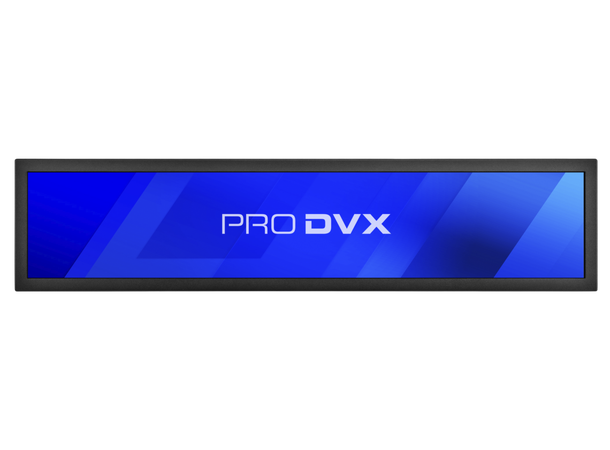

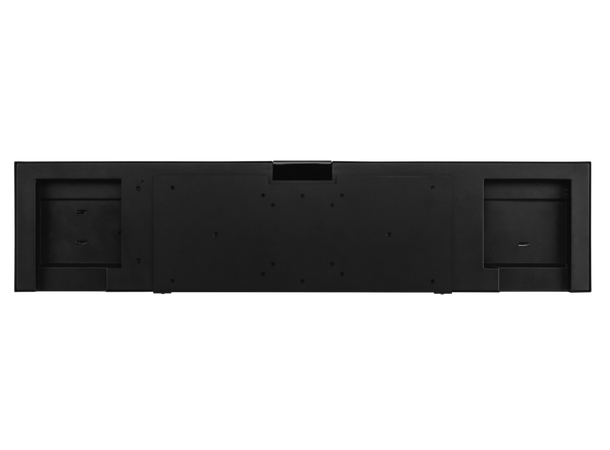

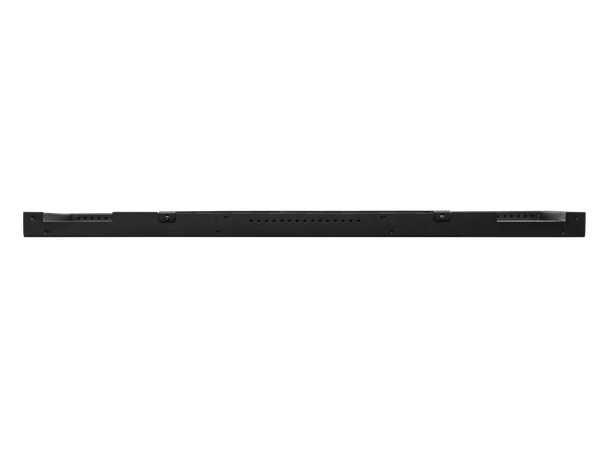

The ProDVX UW-28 is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-28 comes with Android 6. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 28" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 360 |
| Aspect Ratio |
16:3 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
700 cd/m2 |
| Viewing Angle |
H 178° / V 178° |
| Contrast Ratio |
1200:1 |
| Touch Type |
N/A |
| Convenience |

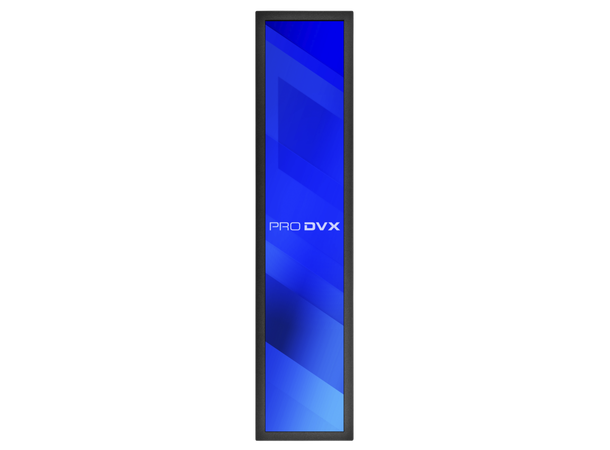

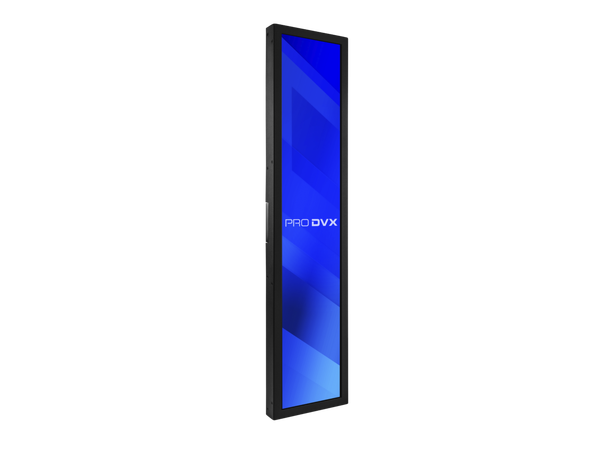

Landscape,Portrait |
| Gyro |
YES |
| System |
|
|
|
| Processor |
ARM (RK3288) |
| CPU |
Cortex A17, 1.6GHz,
4-Core, RK3288 |
| GPU |
MALI T764 / 3D Graphic
Engine (4K) |
| Cooling |
Fanless |
| System Memory |
2 GB DDR3 SDRAM |
| Video Out |
HDMI |
| Internal Storage |
16 GB eMMC Flash |
| External Storage |
SD-Card Slot |
| Card Slot |
SD |
| OS |
Android 8.1 |
| LED Light Bar |
N/A |

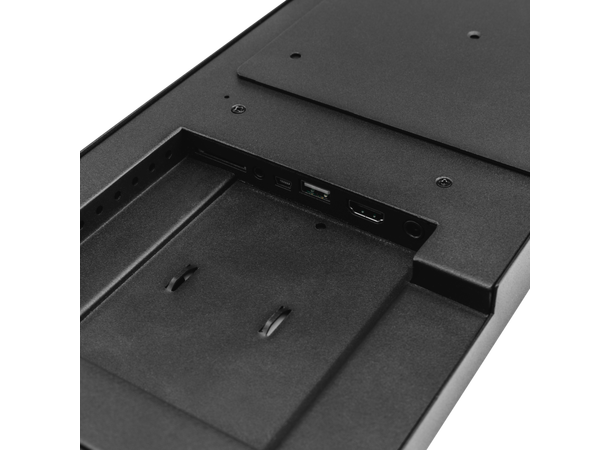

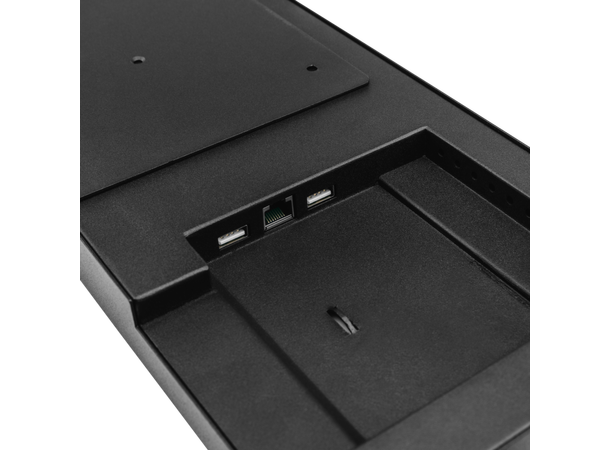

| I/O Ports |
12V DC-IN,3.5 mm
audio-out,3xUSB,HDMI,Mini-USB,RJ45 |
| Network LAN RJ45 |
10/100 Mbps LAN |
| WiFi |
802.11 b/g/n |
| Bluetooth |
BT 4.0 |
| Power over
Ethernet (PoE) |
N/A |
| Integrated NFC |
N/A |
| Camera |
N/A |
| Video/Audio |
|
|
|
| Video
Support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio Support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo Support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
N/A |
| Speakers |
N/A |
| Audio Jack
Output 3.5mm |
YES |
|
|
| Physical |
|
|
|
| Housing |
Metal |
| Color |
Black |
| Weight |
4550 g |
| Dimensions |
736 x 169 x 33 mm |
| Mounting / VESA |
VESA unique pattern |
| Power Supply |
12 V / 4 A |
| Power Supply
Included? |
Yes |
| Power Usage |
11 ~ 19 Watt |
| Pogo Pins |
N/A |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR2032 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90 %
non-condensing |
| MTBF |
45,000 hours
demonstrated |
| Standard
Warranty |
2 years |
| Certifications |
FCC, CE, RoHS |
