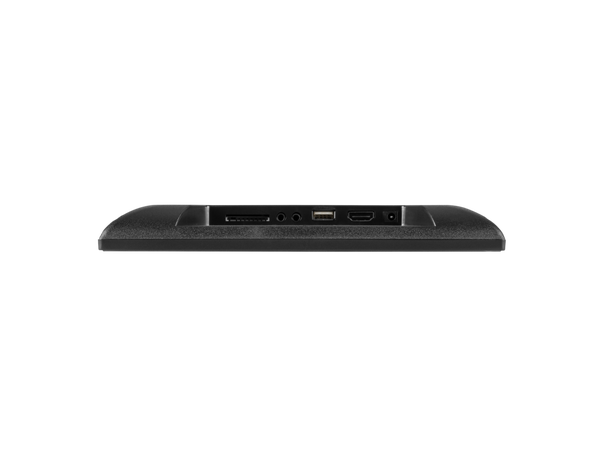

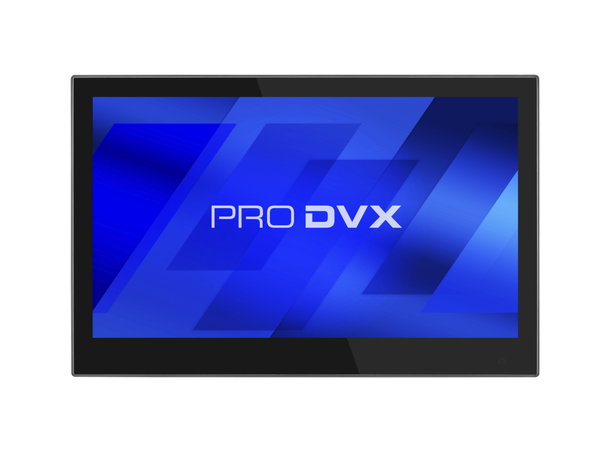

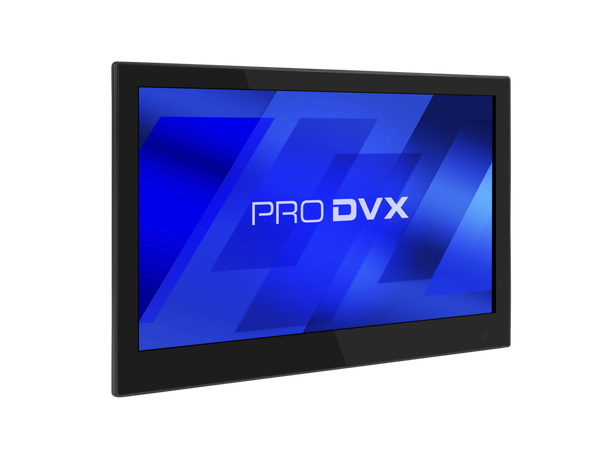

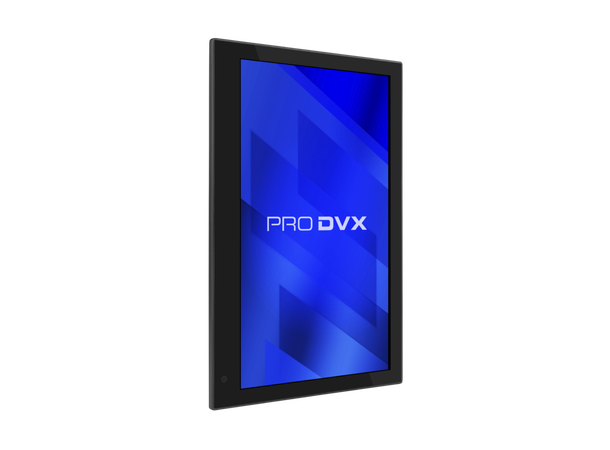

The ProDVX SD-14 is a professional Signage Display. The ProDVX SD-14 comes with an embedded FHD Media Player. The content can be connected through the HDMI input and the unit has a SD, MMC, and MS Card Slot. This 14" Commercial Grade Signage Display standard comes with an Auto Video Play & Loop option and has plastic housing. This device supports multiple video, audio and photo sources and can be mounted through a VESA mount. The SD-14 standard comes with speakers and an audio jack output 3.5 mm.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
300 cd/m2 |
| Viewing Angle |
H 160° / V 160° |
| Contrast Ratio |
700:1 |
| Touch Type |
N/A |
| Convenience |

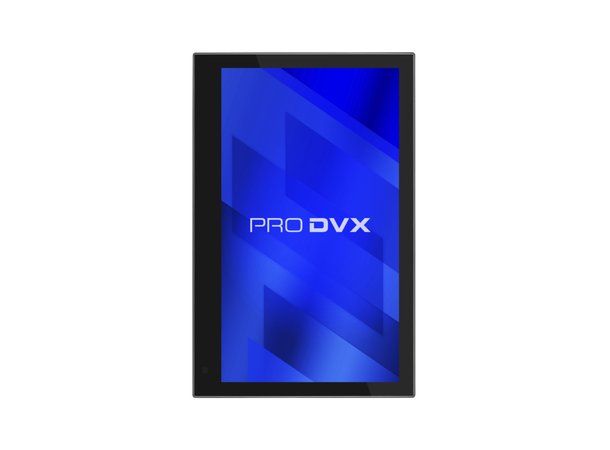

Landscape,Portrait |
| Gyro |
N/A |
| System |
|
|
|
| Monitor |
YES |
| Video Input |
HDMI |
| Video Resolution |
1920 x 1080 |
| Internal Media
Player |
YES |
| Card Slot |
SD/MMC/MS |
| USB Host |
1 x |
| Auto Video Play
& Loop |
YES |
| Video/Audio |
|
|
|
| Video
Support |
AVI,H.264,MKV,MOV,MPG,MPEG2,MPEG4,RM,RMVB,TS
etc. |
| Audio Support |
AAC,MP3 |
| Photo Support |
JPEG,BMP |
| Speakers |
2 x 2 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
| Physical |
|
|
|
| Housing |
Plastic |
| Color |
Black |
| Weight |
1000 g |
| Dimensions |
343 x 220 x 25 mm |

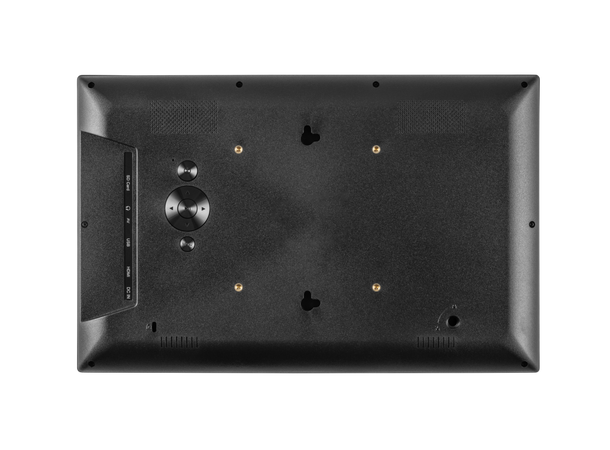

| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 1.5 A |
| Power Supply
Included? |
Yes |
| Power Usage |
11 Watt |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Real time clock
(RTC) |
YES |
| CalendarA |
YES |
| Remote control |
YES |
| Working Temp |
0 ~ 40 degrees C |
| Standard
Warranty |
2 years |
| Certifications |
CE, RoHS |
