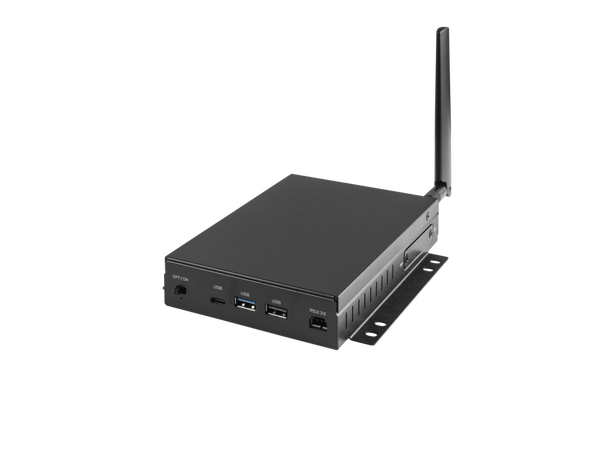

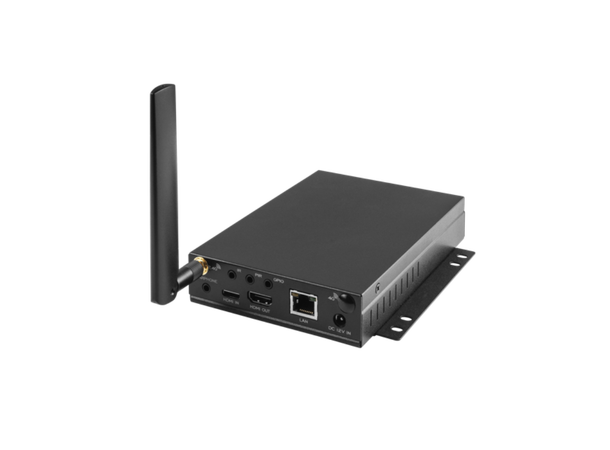

With our Android Box PC you can reach your customers and have them interact with your brand in a way that is proven to increase sales and brand awareness. Our ABPC-4220 comes with Android 13 and Power-over-Ethernet+. Made of durable materials and built specifically for commercial use, ProDVX Devices have been developed to solve the problems found in commercial environments that consumer devices are not designed for.
| Panel |
|
|
|
| Panel
type |
N.A. |
| Backlight |
N.A. |
| Brightness |
N.A. |
| Viewing angle |
N.A. |
| Contrast ratio |
N.A. |
| Touch Type |
N.A. |
| Treatment |
N.A. |
| Convenience |
Easy
installation |
| Gyro |
N/A |
| Operation hours |
24/7
|
|
|
| System |
|
|
|
| CPU |
RK3399 (Dual
Core Cortex A72 with Quad Core A53) |
| GPU |
MALI
T860 / 3D Graphic Engine (4K) |
| Cooling |
Fanless |
| System memory |
4GB
DRAM |
| Video input |
Yes,
mini-HDMI in |
| Video out |
Yes,
HDMI out |
| Internal storage |
16GB
eMMC |
| External storage |
MicroSD-Card
Slot (door) |
| Card slot |
MicroSD |
| OS |
Android
13 |
| LED Light Bar |
N.A. |
| I/O Ports |
3.5
mm (IR and PIR sensor in),Combo Jack,HDMI-out 2.0,RJ45,USB 2.0,USB
3.0,USB-C,mini-HDMI-in 1.4,1x RS232,GPIO |
| Network LAN RJ45 |
10/100/1000
Mbps LAN |
| WiFi |
802.11
a/b/g/n/ac 2.4&5GHz (external antenna) |
| Bluetooth |
5 |
| Power over Ethernet (PoE) |
IEEE
802.3at (PoE+) |
| Integrated NFC |
via
USB |
| Camera |
via
USB |
| Video/Audio |
|
|
|
| Video
support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
N.A. |
| Speakers |
N/A |
| Audio Jack Output 3.5mm |
YES |
|
|
|
|
| Physical |
|
|
|
| Housing |
Metal |
| Color |
Blue |
| Weight |
470
g |
| Dimensions |
153,3
x 107 x 30,6 mm |
| Mounting / VESA |
VESA
75/100 x 120 mm |
| Power Supply |
12V
/ 2A DC input |
| Power Supply Included? |
No |
| Power Usage |
10
~ 15 Watt |
| Pogo Pins |
N.A. |
| Other |
|
| |
|
| OSD Language |
Multi
OSD language |
| Clock Battery (for RTC) |
CR1220
- Lithium-metal non-rechargeable coin |
| Storage Temp |
-10~55
degrees C |
| Working Temp |
0
~ 40 degrees C |
| Storage/Working Humidity |
10
~ 90% non-condensing |
| MTBF |
45,000
hours demonstrated |
| Standard Warranty |
3
years |
| Certifications |
FCC,
CE & RoHS |
| Art. No |
7099310 |
