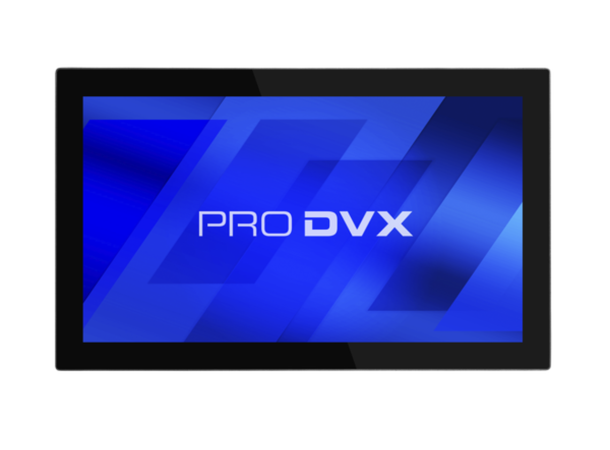

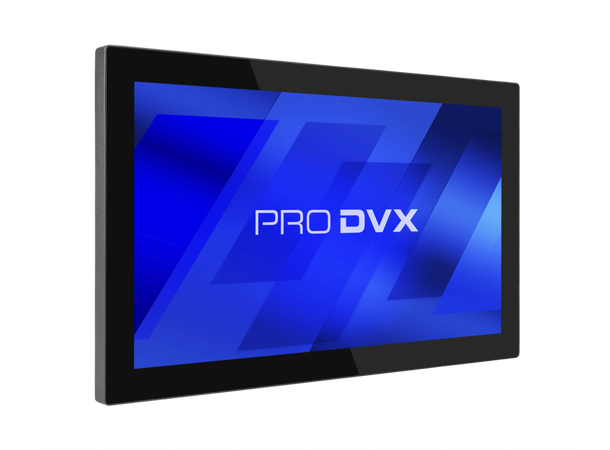

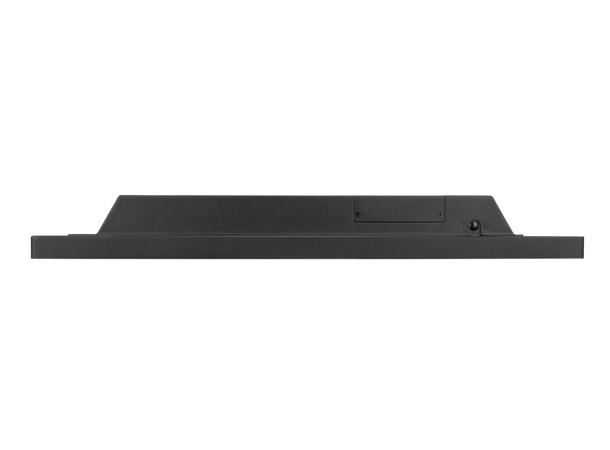

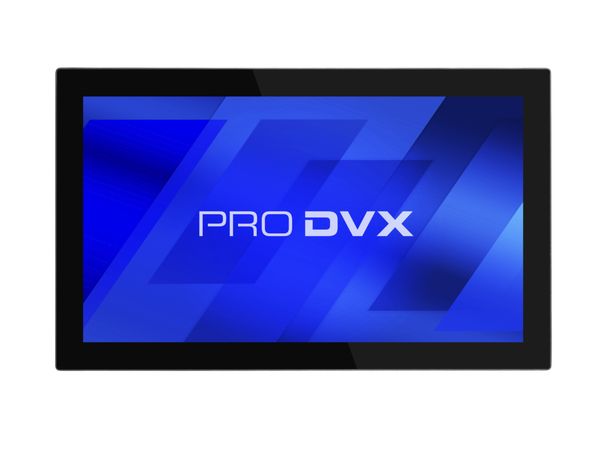

The ProDVX IPPC-22-6200 is an Intel Panel PC with a 21.5" Touch Display. The ProDVX IPPC-22-6000 standard comes with an Intel® Core™ i5 - 8500T. This device can be connected through RJ45 LAN, WiFi, Bluetooth and is fanless due to passive cooling. This Intel SOC Touch Display has a projected capacitive touch display in plastic housing. Optional accessories for the Pogo Pins are a 1D/2D Barcode Scanner, NFC Module or VESA brackets.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect Ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
250 cd/m2 |
| Viewing Angle |
H 178° / V 178° |
| Contrast Ratio |
3000:1 |
| Touch Type |
10 point touch
projected capacitive |
| Convenience |

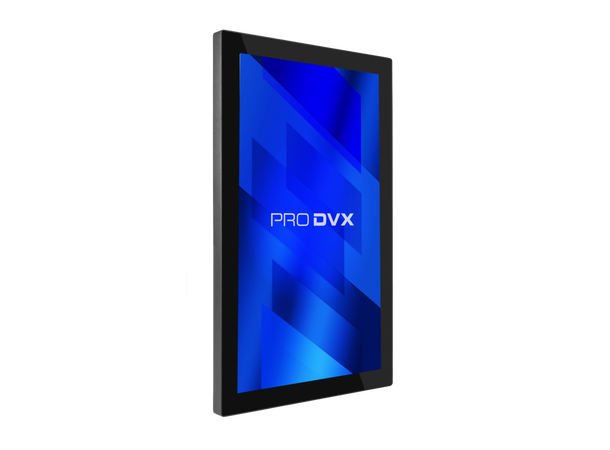

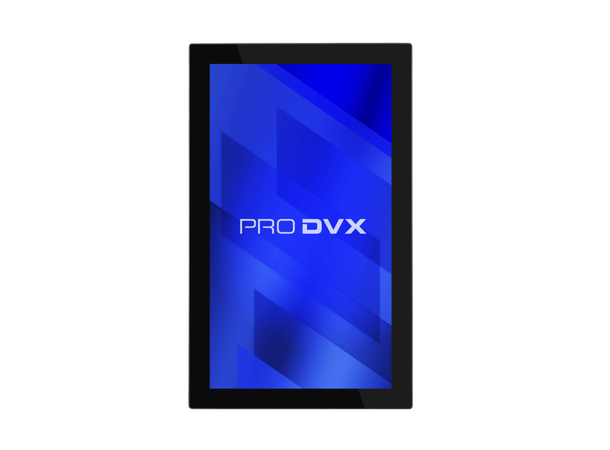

Landscape,Portrait,Table
Mode |
| Gyro |
N/A |
|
|
| System |
|
|
|
| CPU |
Intel® Core™ i5 -
8500T |
| GPU |
Intel® UHD Graphics
630 |
| Cooling |
YES |
| System Memory |
8GB DDR4L |
| Internal Storage |
128GB SATA SSD
2,5" |
| Storage Socket 2 |
SD-Card Slot (door) |
| OS |
Windows 10 ( Licence not included) |
| LED Light Bar |
N/A |

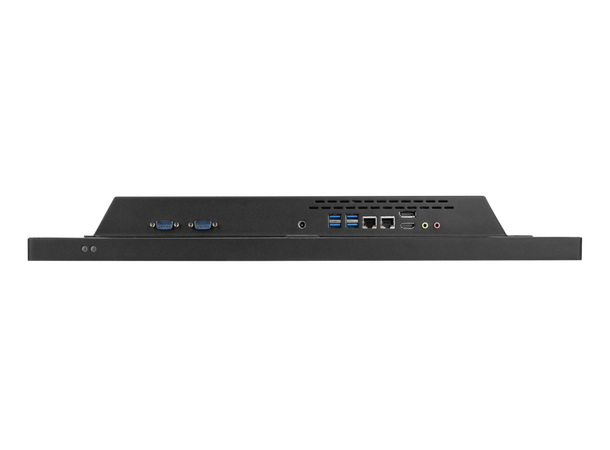

| I/O Ports |
2xRS232,DisplayPort
out (v1.2),HDMI out (v1.4),12V DC-IN,RJ45 (2x),3.5 mm audio-out,3.5 mm
audio-in,2x USB 3.0,2x USB 2.0 |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.3 b/g/n |
| Bluetooth |
BT 4.2 |
|
|
| Video/Audio |
|
|
|
| Microphone |
N/A |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
|
|
| Physical |
|
|
|
| Housing |
Metal |
| Color |
Black |
| Dimensions |
531 x 322 x 35 mm |

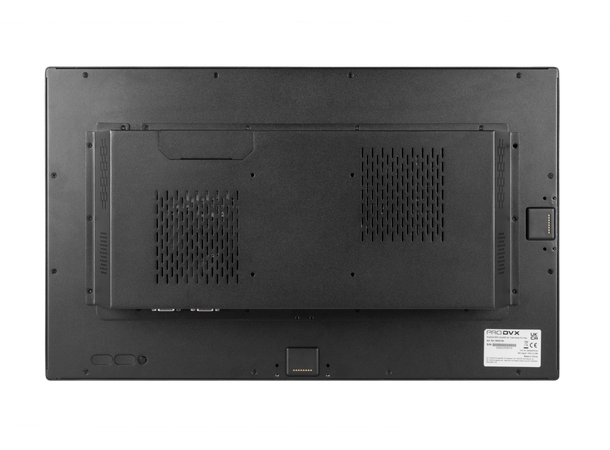

| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 5 A |
| Power Supply
Included? |
Yes |
| Power Usage |
40 ~ 70 Watt |
| Pogo Pins |
YES (bottom/left) |
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR2032 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90%
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
2 years |
| Certifications |
FCC, CE, RoHS |
