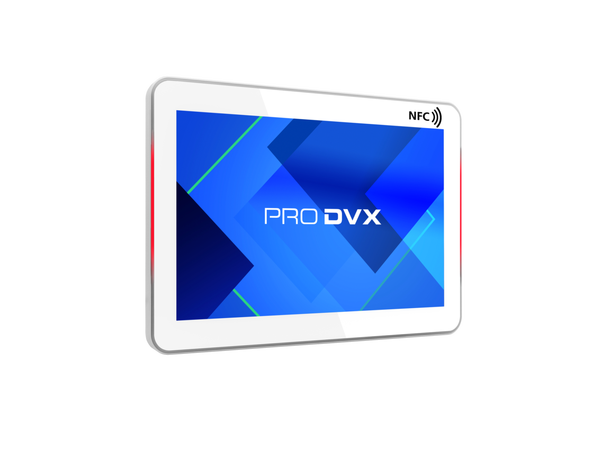

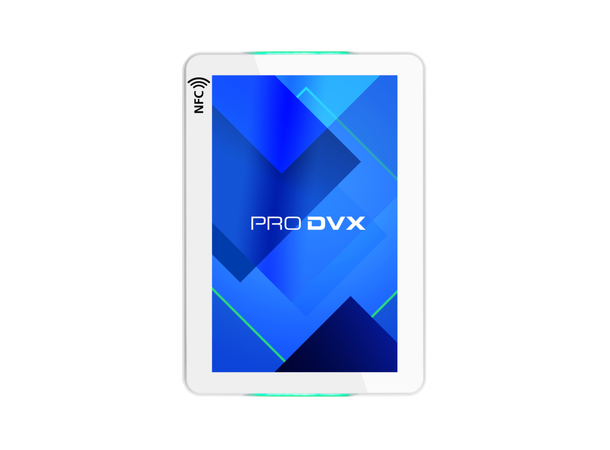

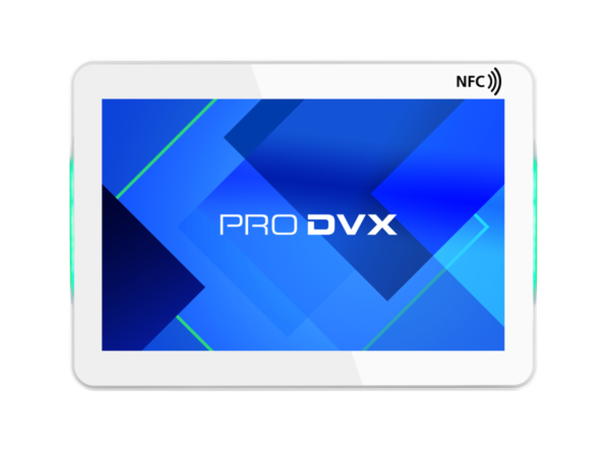

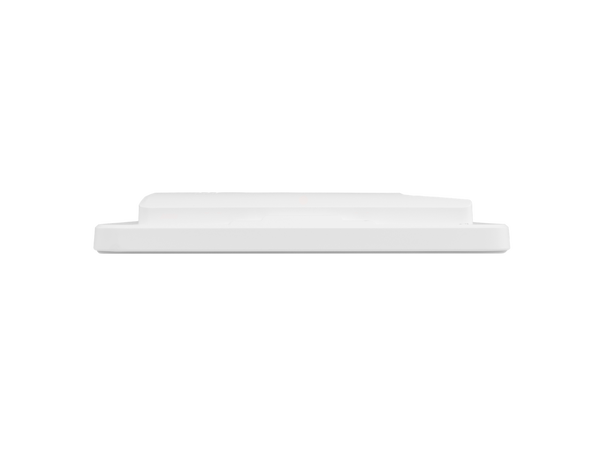

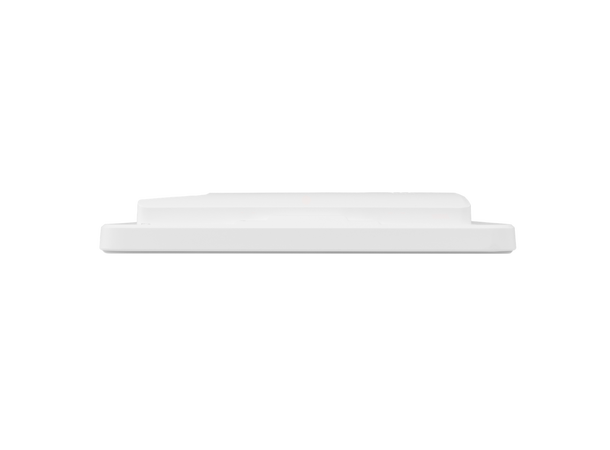

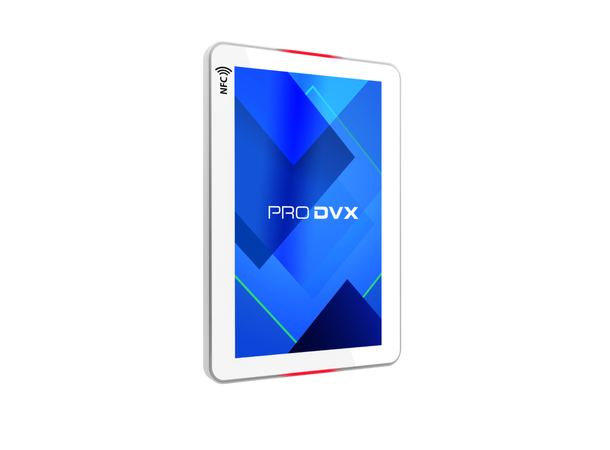

The APPC-10XPLNW-R23 is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a 2-sided full RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10XPLNW-R23 ensures superior performance and next-level user experience, and fits into any aesthetic with its white housing. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the non-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10XPLNW-R23 is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1280 x 800 |
| Aspect ratio |
16:10 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
500 cd/m2 |
| Viewing angle |
H 160° / V 160° |
| Contrast ratio |
800:1 |
| Touch Type |
10 point touch
projected capacitive |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table
Mode,Flushmount |
| Operation hours |
24/7 |
|
|
|
|
| System |
|
|
|
| CPU |
RK3568 |
| GPU |
Mali-G52 |
| Cooling |
Fanless |
| System memory |
4 GB DDR4 SDRAM |
| Video out |
HDMI |
| Video resolution |
1280 x 800 |
| Internal storage |
16 GB eMMC Flash |
| External storage |
SD-Card Slot (door) |
| Card slot |
SD |
| OS |
Android 12 |
| LED Light Bar |
2 sided LED bar (RGB) |
| I/O Ports |
12 V DC-IN,3.5 mm
audio-out,USB 2.0,RJ45,GPIO,Micro-USB,3x Pogo pin,HDMI out |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 5.0 |
| Power over
Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
Integrated NFC reader
(NXP PN553) |
| Camera |
Optional accessory |
|
|
|
|
| Video/Audio |
|
|
|
| Audio
support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
YES |
| Speakers |
2 x 2 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
|
|
|
Physical |
|
|
|
| Housing |
ABS+PC (Macrolon) |
| Color |
White |
| Weight |
650 g |
| Dimensions |
255,3 x 181 x 26,7 mm |
| Mounting / VESA |
VESA 75 |
| Power Supply |
12 V / 2 A (EU, UK,
US) |
| Power Supply
Included? |
No |
| Power Usage |
10 ~ 20 Watt |
| Pogo Pins |
YES
(bottom/left/right) |
|
|
|
|
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR1220 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90 %
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS,
REACH
|
