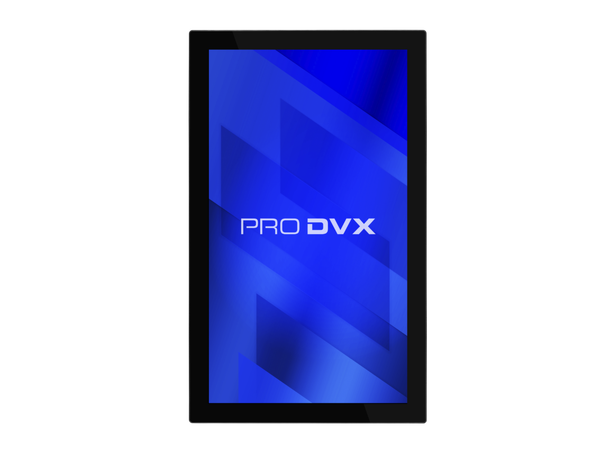

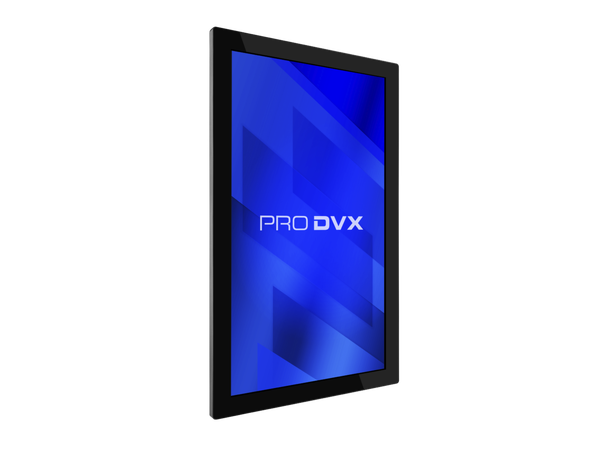

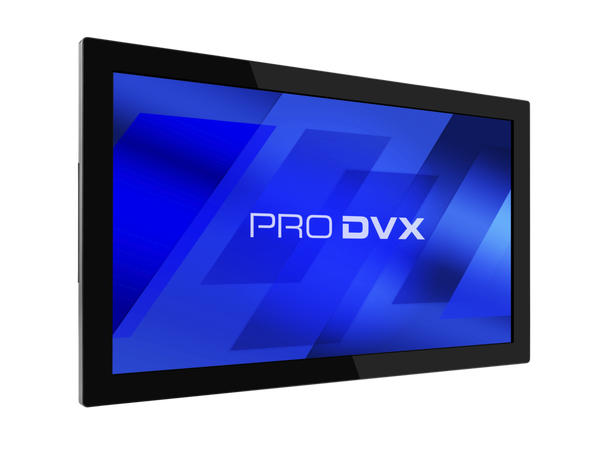

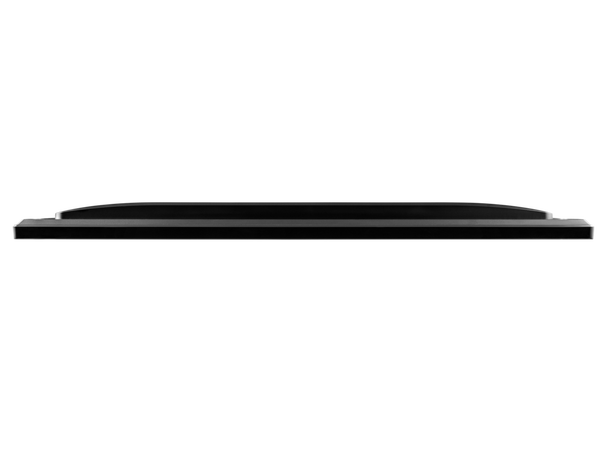

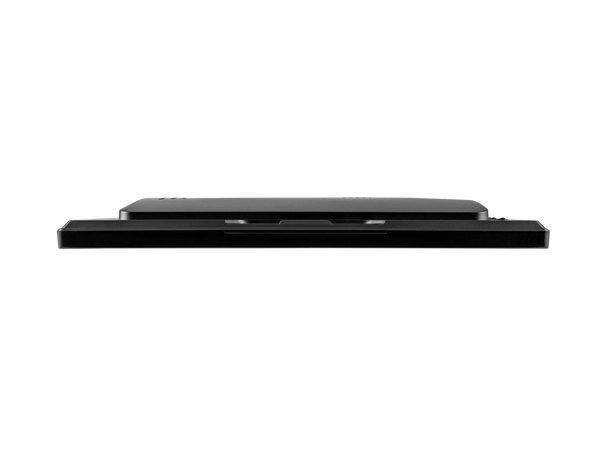

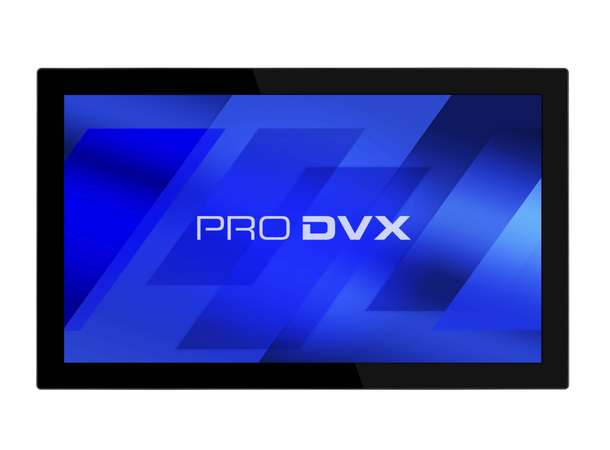

The APPC-22XP-R23 is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 11 provides the APPC-22XP-R23 with a soft ware agnostic operating system. In addition, the APPC-22XP-R23 is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for non-glare to provide the most optimal user experience. Moreover, the APPC-22XP-R23 showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP-R23 effortlessly handles any solution.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
250 cd/m2 |
| Viewing angle |
H 178° / V 178° |
| Contrast ratio |
3000:1 |
| Touch Type |
10 point touch
projected capacitive |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table
Mode |
| Operation hours |
24/7 |
|
|
|
|
| System |
|
|
|
| CPU |
RK3399 (Dual Core
Cortex A72 with Quad Core A53) |
| GPU |
MALI T860MP4 / 3D
Graphic Engine (4K) |
| Cooling |
Fanless |
| System memory |
4GB LPDDR4 SDRAM |
| Video out |
mini-hdmi |
| Internal storage |
16GB eMMC |
| External storage |
SD-Card Slot (door) |
| Card slot |
SD |
| OS |
Android 11 |
| LED Light Bar |
Optional accessory |
| I/O Ports |
12 V DC-IN,3x Pogo
pin,2x COM (RJ45),2x USB 2.0,Ethernet (RJ45),USB-C,USB
3.0,S/PDIF,mini-hdmi-out,3.5 mm jack in/out |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n/ac |
| Bluetooth |
BT 5.2 |
| Power over
Ethernet (PoE) |
IEEE 802.3bt Type 3
(PoE++) |
| Integrated NFC |
Optional accessory |
| Camera |
Optional accessory |
|
|
|
|
| Video/Audio |
|
|
|
| Video
support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
YES |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
|
|
|
Physical |
|
|
|
| Housing |
ABS+PC (Macrolon) |
| Color |
Black |
| Weight |
4200 g |
| Dimensions |
530,5 x 321,22 x 35 mm |
| Mounting / VESA |
VESA 100 |
| Power Supply |
12 V / 5 A |
| Power Supply
Included? |
Yes |
| Power Usage |
30 ~ 45 Watt |
| Pogo Pins |
YES
(bottom/left/right) |
|
|
|
|
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR1220 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90%
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS,
REACH
|
