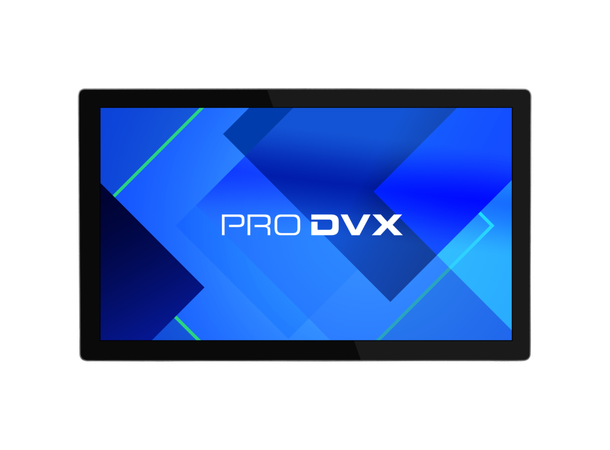

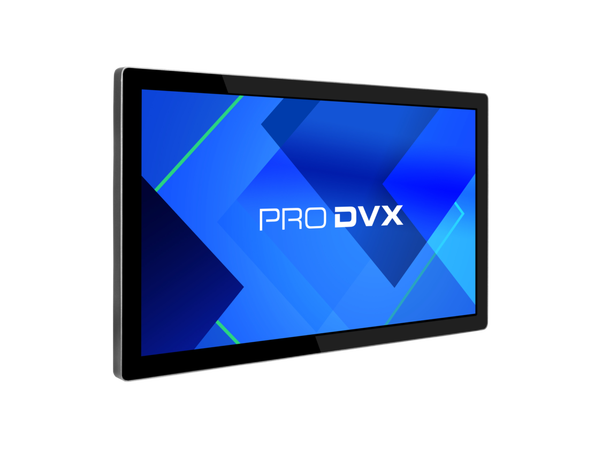

The APPC-24X-R23, featuring the latest Rockchip dual-processor and Mali-T860 GPU, is set to redefine performance standards. With 4GB of RAM and 16GB of storage, multitasking becomes a breeze. Operating on Android 11, it boasts one of the most flexible and secure operating systems available. The APPC-24X-R23 achieves a maximum brightness of 250 cd/m2. Paired with a 10-point touch-enabled panel treated for non-glare, this Android Panel PC ensures an optimal user experience. Tailored for interactive kiosks, the APPC-24X-R23 comes with a VESA mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.
| Panel |
|
|
|
| Panel
type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Aspect ratio |
16:9 wide |
| Backlight |
Edge-LED backlight |
| Brightness |
250 cd/m2 |
| Viewing angle |
H 178° / V 178° |
| Contrast ratio |
1000:1 |
| Touch Type |
10 point touch
projected capacitive |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table
Mode |
| Gyro |
N/A |
| Operation hours |
24/7 |
|
|
| System |
|
|
|
| Chipset |
Cortex A72 2 Core+A53
4-Core |
| CPU |
RK3399 (Dual Core
Cortex A72 with Quad Core A53) |
| GPU |
MALI T860MP4 |
| Cooling |
Fanless |
| System memory |
4GB LPDDR4 SDRAM |
| Video out |
mini-hdmi |
| Internal storage |
16 GB eMMC Flash |
| External storage |
SD-Card Slot (door) |
| Card slot |
SD |
| OS |
Android 11 |
| LED Light Bar |
Optional accessory |

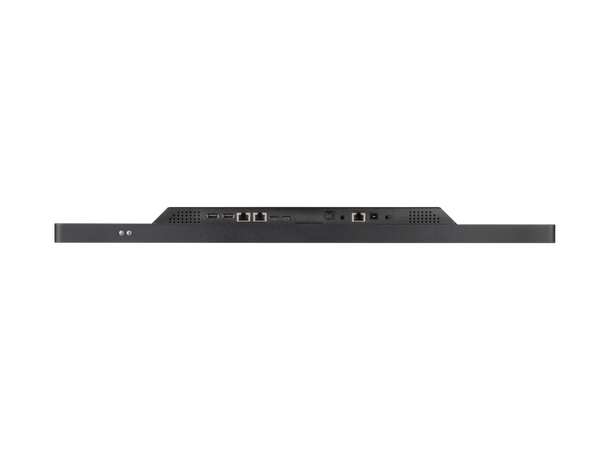

| I/O Ports |
12 V DC-IN,2x COM
(RJ45),3.5 mm audio-out,Ethernet (RJ45),Micro-USB,S/PDIF,mini-hdmi-out,2x USB
2.0 |
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n
(external antenna) |
| Bluetooth |
BT 5.2 |
| Power over
Ethernet (PoE) |
N/A |
| Integrated NFC |
Optional accessory |
| Camera |
Optional accessory |
|
|
| Video/Audio |
|
|
|
| Video
support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
N/A |
| Speakers |
2 x 3 W |
| Audio Jack
Output 3.5mm |
YES |
|
|
|
Physical |
|
|
|
| Housing |
Metal |
| Color |
Black |
| Weight |
7210 g |
| Dimensions |
575,8 x 344,8 x 44 mm |

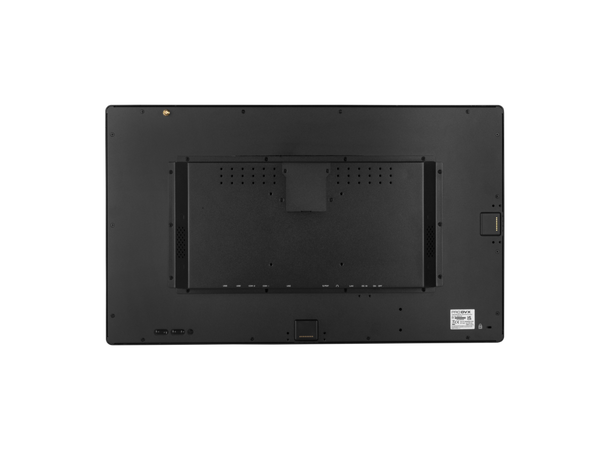

| Mounting / VESA |
VESA 100x100 |
| Power Supply |
12 V / 5 A |
| Power Supply
Included? |
Yes |
| Power Usage |
40 ~ 60 Watt |
| Pogo Pins |
YES (bottom/left) |
|
|
| Other |
|
|
|
| OSD
Language |
Multi OSD language |
| Clock Battery
(for RTC) |
CR1220 - Lithium-metal
non-rechargeable coin |
| Storage Temp |
-10 ~ 55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working
Humidity |
10 ~ 90 %
non-condensing |
| MTBF |
50,000 hours
demonstrated |
| Standard
Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS,
REACH
|
